Alfalaval Similar Heat Exchanger Gasket and Stainless Steel Plate

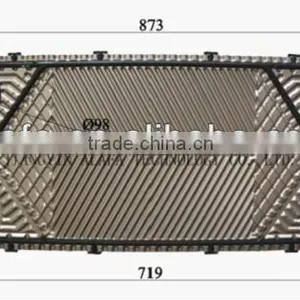

Alfalaval Similar Heat Exchanger Gasket and Stainless Steel Plate thumbnail-1

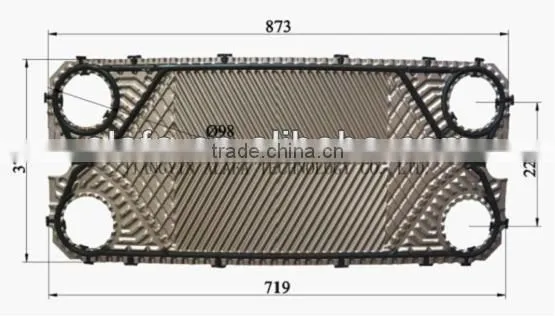

Alfalaval Similar Heat Exchanger Gasket and Stainless Steel Plate photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
6Z
Contact Supplier Request Quote Chat Now
Jiangyin 6Z Heat Exchanger Manufacturing Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name 6Z
Structure Other, heat exchanger plate and gasket
Maximum Working Pressure 25bar
Certification CCC, CE, Other, CCC, CE, ISO9001
Warranty one year
After-sales Service Provided Overseas service center available

Specifications

1, Wide application and environmental protection;
2, Good quality and reasonable price;
3, Easy to install and maintance.

Type

A
(mm)

L
(mm)

H
(mm)

D
(mm)

E
(mm)

LC
(mm)

Size of Connector
(mm)

Maximum Exchange

Area (M 3 )

Maximum

Flow Rate
(M 3 )

JE1

N(2.1+X)

180

335

65

236

700

32

3

10

JQ1

N(2.5+X)

180

500

60

357

700

32

3

14

JQ2B

N(2.0+X)

320

930

140

640

1200

50

36

43

JQ2M

N(3.0+X)

320

930

140

640

1200

50

35

43

JS2M

N(4.0+X)

400

650

380

203

1440

65

13.5

75

JQ4B

N(2.05+X)

470

1069

225

719

1600

100

99

180

JQ4M

N(3.95+X)

470

1069

225

719

1600

100

59

185

JQ6B

N(2.5+X)

470

1815

298

1294

3000

150

360

380

JQ6M

N(3.95+X)

610

1815

298

1294

3000

150

220

385

JQ8M

N(4.0+X)

610

2150

355

1480

3000

200

398

670

JS8M

N(4.0+X)

780

1435

363

698.5

2700

200

83

550

JQ10B

N(2.6+X)

800

2900

439

1939

3200

250

1000

890

JQ10M

N(4.0+X)

920

2900

439

1939

3200

250

900

900

JQ12B

N(3.4+X)

1150

3100

596

1842

5100

300

1390

1300



Material of Plate

Suited Liquid Kinds

Stainless Steel (SUS304. 316 Etc)

Pure Water, Normal Water, Oil for eating, Mineral Oil

Ti, Ti-pd

Sea Water, Saline Water, Mineral Water

20Cr, 18Ni, 6Mo (254SMO)

Dilute Sulphuric Acid, Organic Water Solution

Ni

High-temp and concentration caustic soda

Hastelloy (C276, D205, B2G)

Concentration Sulphuric Acid, Hydrochloric acid,  Phosphoric acid

Material of Gasket

Operating Temperature °C

Suited Liquid Kinds

NBR

-15~+135°C

Water, Sea Water, Mineral Oil, Salty Water

EPDM

-25~+180°C

Hot Water, Steam, Acid, Caustic

F26

-55~+230°C

Acid, Caustic, Fluid

TPF

0~+160°C

Concentrated Acid, Caustic, High-temperature Oil, Steam

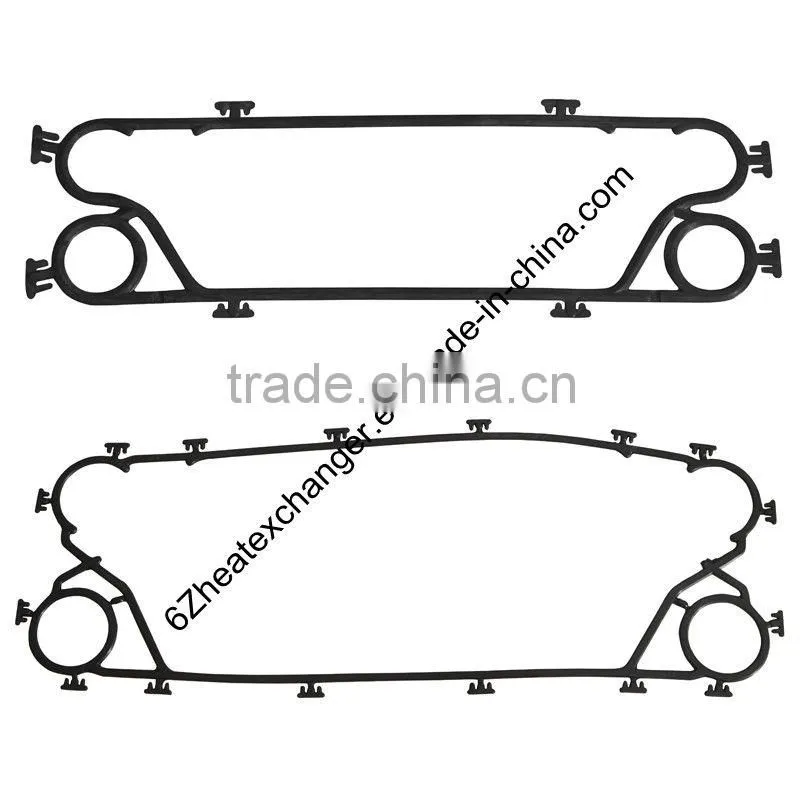

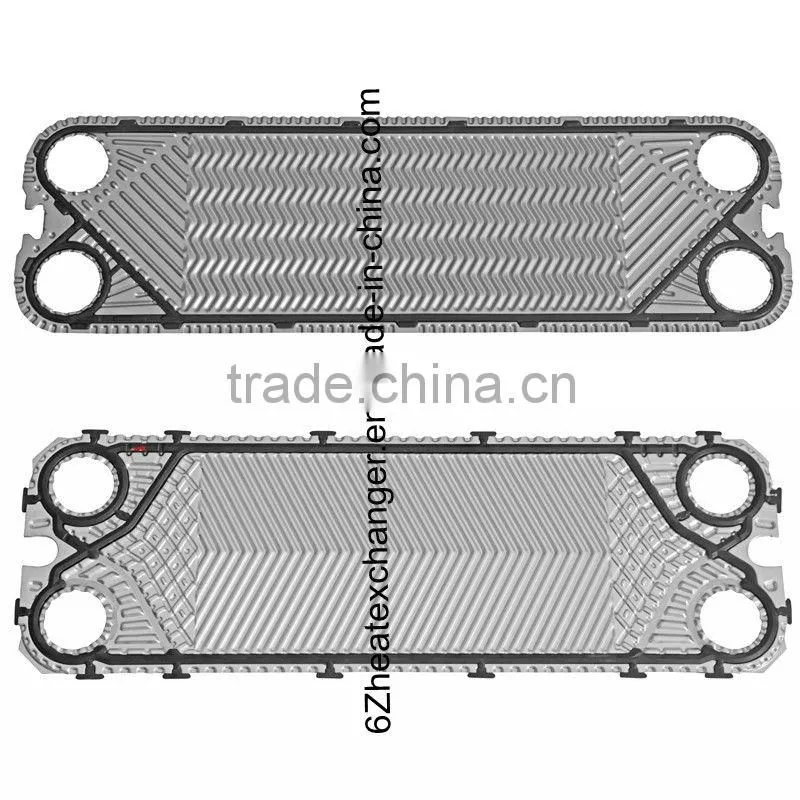

 Alfalaval similar heat exchanger gasket and stainless steel plateAlfalaval similar heat exchanger gasket and stainless steel plate
