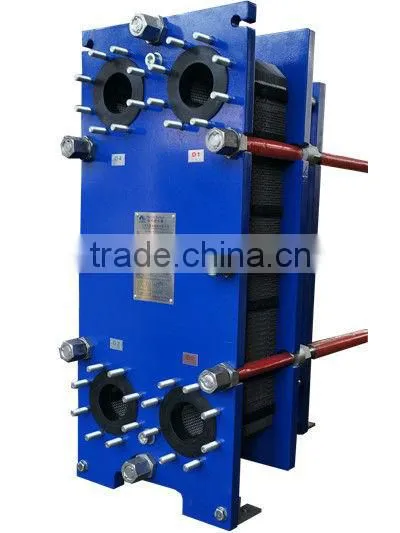

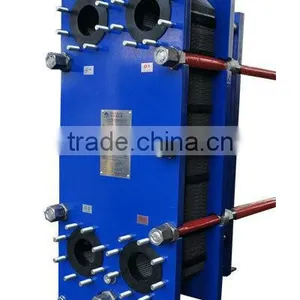

Help CenterPlate Heat Exchanger for Food Industry and Marine Application
Related Products
-
Plate Type Heat Exchanger for Water to Water, Water to Oil CoolingNegotiableMOQ: 1 Set -
Plate Heat Exchanger Used for Water to Water, Water to Oil Cooling,heat Exchanger ManufactureNegotiableMOQ: 1 Set
-
Plate Type Heat Exchanger,heat Exchanger ManufacturerNegotiableMOQ: 1 Set
-
Brazed Heat Exchanger, Plate Heat Exchanger Small and High EfficiencyNegotiableMOQ: 1 Set
-
Plate Heat Exchanger ,gasket Type Heat Exchanger,water Heat ExchangerNegotiableMOQ: 1 Set
Specifications
1, High efficiency with low cost2, Design upon buyers' request
3, Satisfied after-sale service
4, Get CE,ISO9001 certificate
Applications
General heating and cooling duties. Heating by means of steam, swimming pool heating.
Standard design

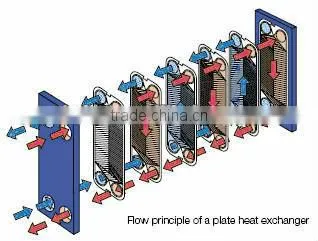

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids
between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interpolate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.
The plate corrugations promote fluid turbulence and support the plates against differentpressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
Material of Plate |
Suited Liquid Kinds |
||
Stainless Steel (SUS304. 316 Etc) |
Pure Water, Normal Water, Oil for eating, Mineral Oil |
||
Ti, Ti-pd |
Sea Water, Saline Water, Mineral Water |
||
20Cr, 18Ni, 6Mo (254SMO) |
Dilute Sulphuric Acid, Organic Water Solution |
||
Ni |
High-temp and concentration caustic soda |
||
Hastelloy (C276, D205, B2G) |
Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid |
||
Material of Gasket |
Operating Temperature °C |
Suited Liquid Kinds |
|
NBR |
-15~+135°C |
Water, Sea Water, Mineral Oil, Salty Water |
|
EPDM |
-25~+180°C |
Hot Water, Steam, Acid, Caustic |
|
F26 |
-55~+230°C |
Acid, Caustic, Fluid |
|
TPF |
0~+160°C |
Concentrated Acid, Caustic, High-temperature Oil, Steam |
|
