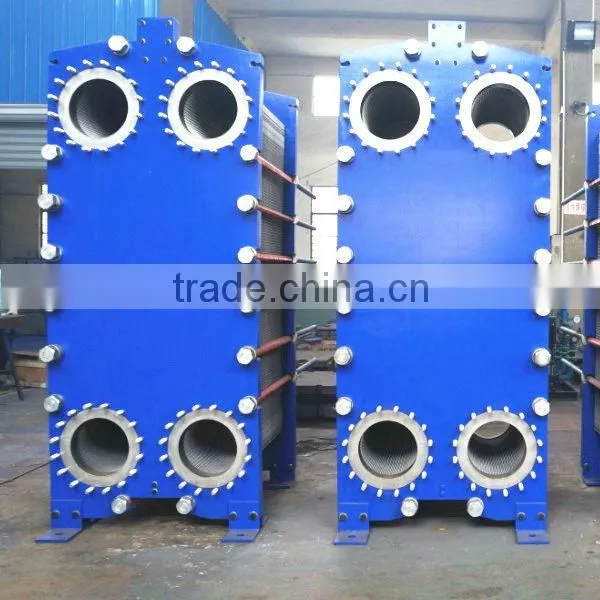

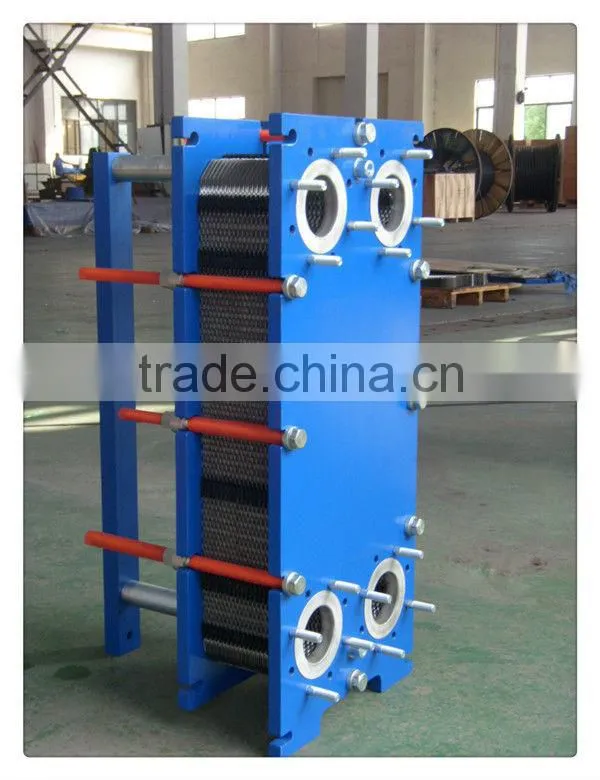

316L Plate Heat Exchanger ,Jiangyin Heat Exchanger Manufacture

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Jiangyin 6Z Heat Exchanger Manufacturing Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name 6Z

Model Number A1-A12

Structure Plate Heat Exchanger

Liquid Flow Rate 10-1300m3

Maximum Working Pressure 25 bar

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

suitable heat exchanger
2.easy to install and maintain
3.environmental protection
4.high efficiency with low cost

Professional manufacture ,design as client working condition.

Plate heat exchanger model

Material of Plate		Suited Liquid Kinds
Stainless Steel (SUS304.316 Etc)		Pure Water, Normal Water, Oil for eating, Mineral Oil
Ti, Ti-pd		Sea Water, Saline Water, Mineral Water
20Cr, 18Ni, 6Mo (254SMO)		Dilute Sulphuric Acid, Organic Water Solution
Ni		High-temp and concentration caustic soda
Hastelloy (C276, D205, B2G)		Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid
Material of Gasket	Operating Temperature ° C		Suited Liquid Kinds
NBR	-15~+135° C		Water, Sea Water, Mineral Oil, Salty Water
EPDM	-25~+180° C		Hot Water, Steam, Acid, Caustic
F26	-55~+230° C		Acid, Caustic, Fluid
TPF	0~+160° C		Concentrated Acid, Caustic, High-temperature Oil, Steam
