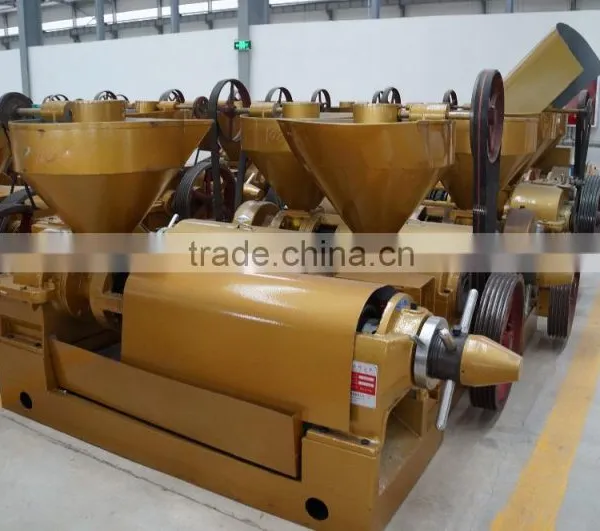

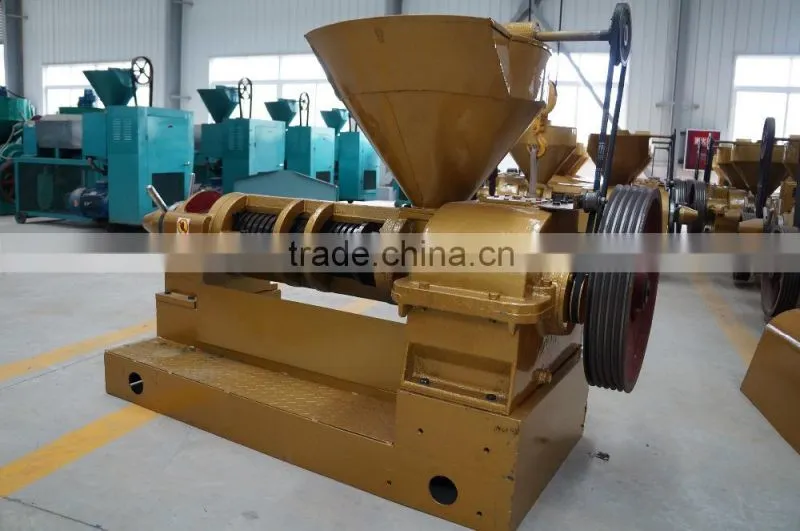

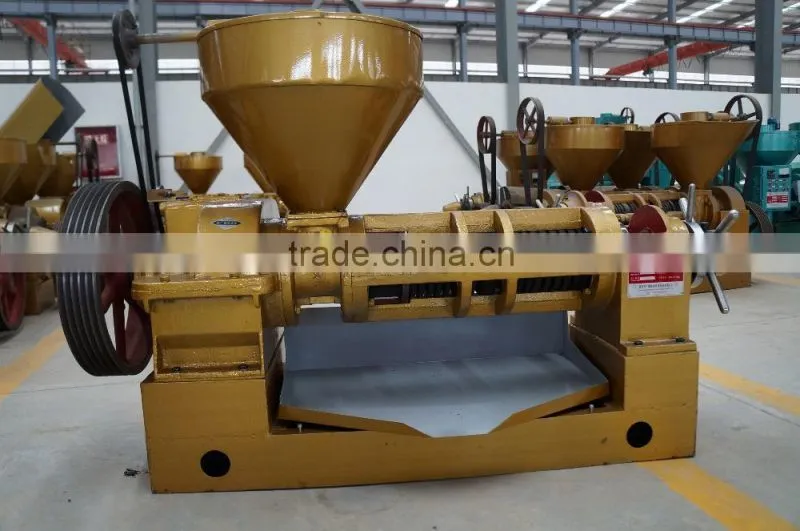

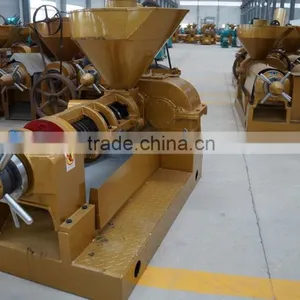

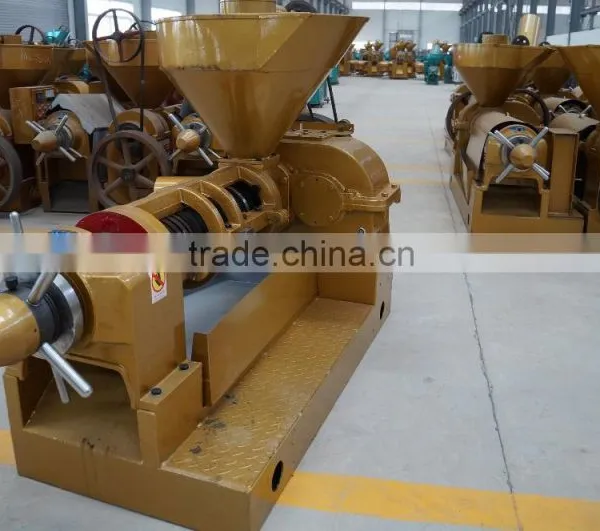

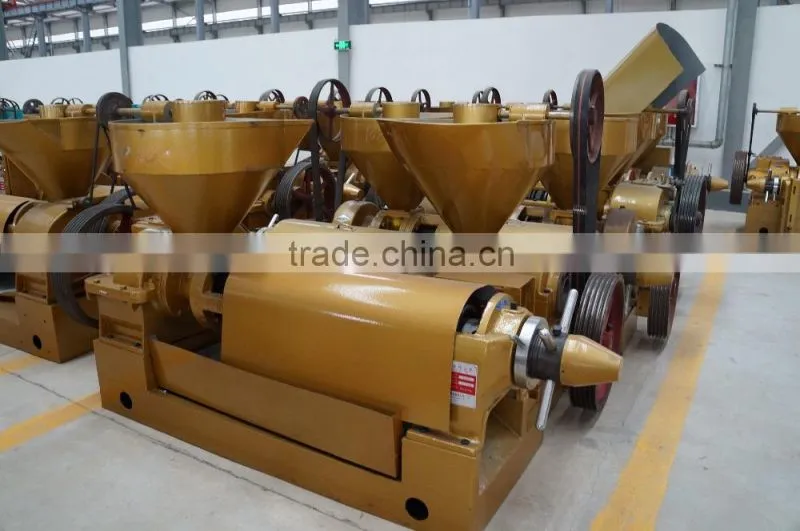

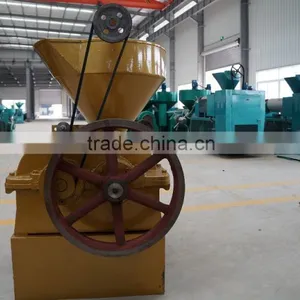

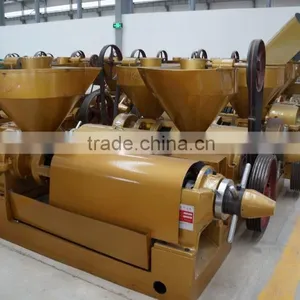

Higher oil output sesame oil press machine:

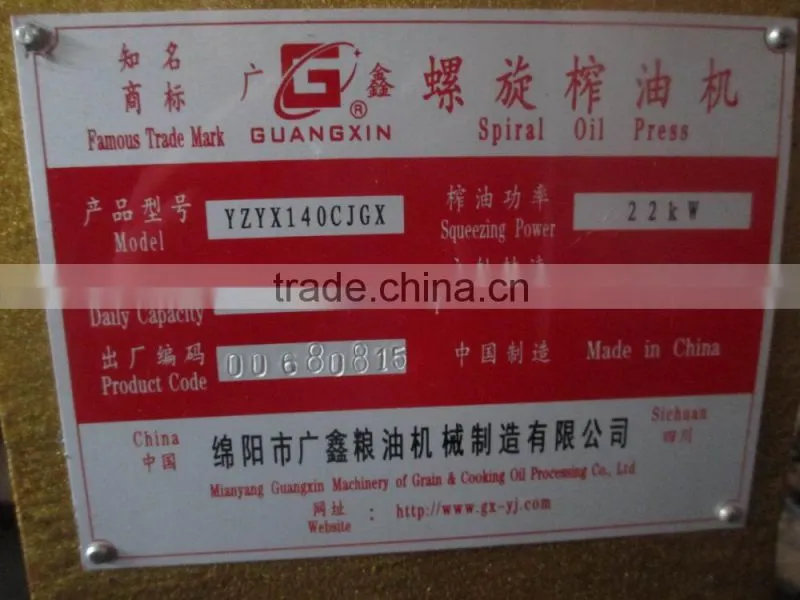

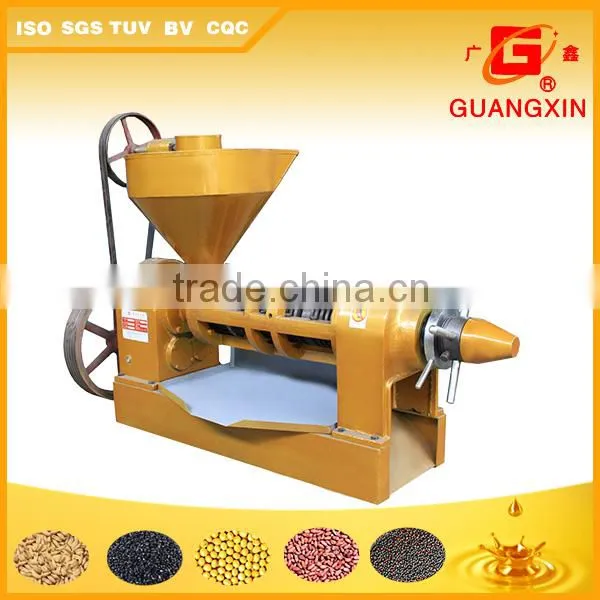

Higher oil output oil extractor for mini oil mill YZYX140CJGX has bigger gear box and longer chamber, run smoothly and higher oil output.
| Production Name | Higher oil output sesame oil press machine |
| Processing capacity | 9-11ton per day |
| Power required | 18.5 or 22k.W |
| Weight | 1320kgs |
| Measurement | 2300*820*1370mm |
| Oil content of dry cake | less than 8% |
| Spiral axes of rotation speed | 30-40 rotates per minute |

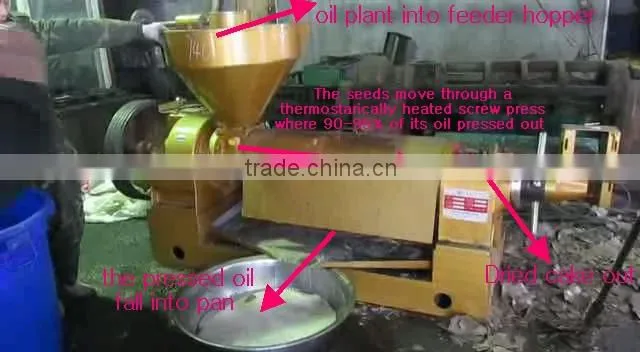

Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller, the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion & friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeeze loops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between the cake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.
- Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.
- Medium and small oil refinery, oil mill and private oil squeezing workshop.
- Performs well both in cold pressing and hot pressing.
Specifications:

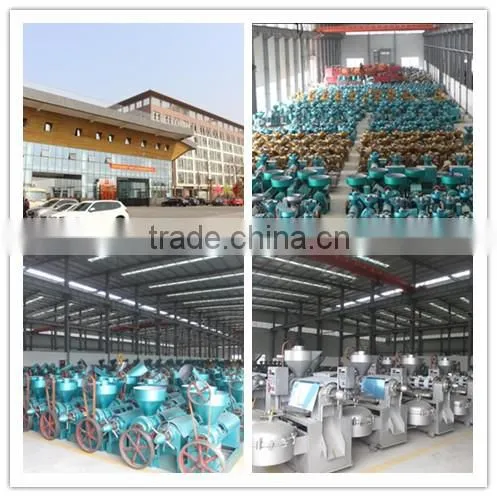

Exhibition And Communication:
Certifications:
Test Standard:
Our oil press strictly conforms to GB/T9793.1-19999 of the People’s Republic of China and has been ISO and BV certified.
Warranty Terms:
A. Free replacement of accessories in 6 months from the date of purchasing.
B. Free replacement of main body in 12 months from the date of purchasing
Payment:
30% deposit to run order by T/T, the balance be paid up before shipment. Or LC, western union, paypal are acceptable.
FAQ:
- Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder. - If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make
2~4 hours wear-in and then can work. - What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm. - What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast
to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
