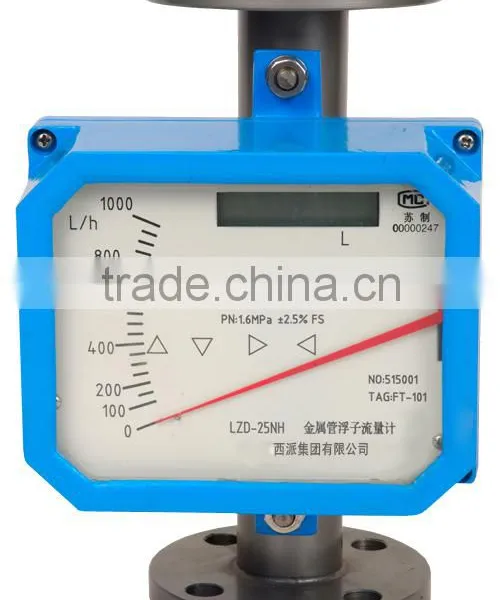

Help CenterMetal Tube Rotameter
Related Products
Characteristic
1, Solid all metal structure design with float flow meter
2, Measuring indicator using independent mnodular conceptual design
3, The measuring material can choose stainless steel, Hastelloy, titanium, PTFE
4. Low pressure loss in design.
5, Short stroke, small structure design, total height 250 meters
6, Magnetic coupling structure to ensure the data transmission, the signal more stable
7, Vertical, horizontal, various installation modes are more suitable for different occasions
Technical parameters
Accuracy grade: 1.0, 1.5, 2.0
Pressure loss: 7KPa ~70KPa
Media temperature: normalized type: 80dgree ~+200dgree:PTFE:80dgree ~ 95dgree high temperature type: up to 400dgree
Media viscosity: DN15: <5mPa.s (F15. ~ F15.3) <30mPa.s(F15.4 ~ F15.8)
DN25: <250mPFa.s DN50 ~ DN150: <300mPa.s
Environment temperature: LCD type: 30dgree ~ +85dgree
Pointer type: 40dgree ~+120dgree
Type of connection: flange type HG20592 or user specified
thread type DIN11851 or user specified
Cable interface: M20*1.5 1/2NPT
Power supply: Standard type: 24VDC(10.8VDC-36VDC)
AC type: 220VAC (85-265VAC 50HZ)
Battery type: 3.6V@4AH Nickel metal hydride battery
Output: Standard signal two-wire 4~20mA
Pulse signal: the minimum interval 50Ms
Alarm signal: lower or upper instantaneous flow alarm
LCD: Instantaneous flow display numerical range: 0~50000
Cumulative flow display numerical range: 0~99999999
Protection grade: IP65
Explosion proof mark: intrinsic safety type iaⅡCT6 flame proof type dⅡCT6
