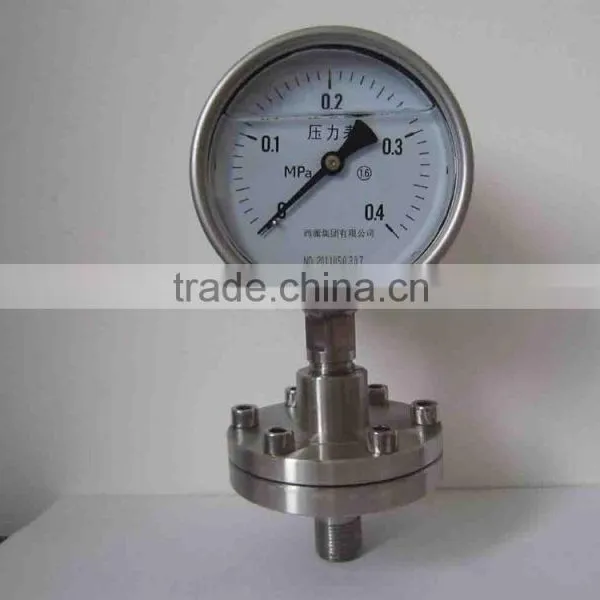

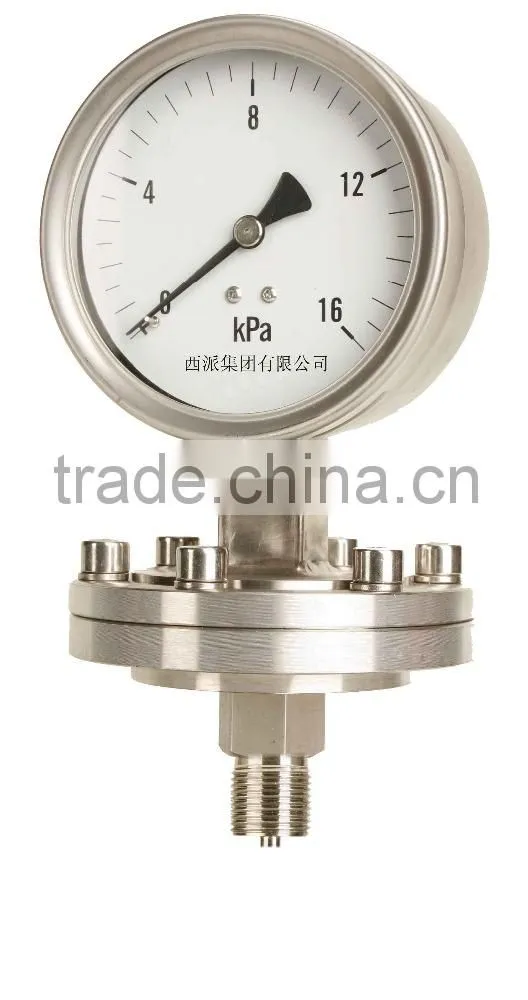

YPF-100A Diaphragm pressure gauge
Brief Description
YPF-100A diaphragm pressure gauge measures pressure or negative pressure gauge of various fluid medium which is corrosive, not crystallized or not solidified.Shock-resistant diaphragm pressure gauge not only has performance of general diaphragm, but also medium pulse-resistant, impulse load-resistant and environment sock-resistant. Corrosion-resistant diaphragm pressure gauge is used to measure pressure of liquid and gas which are corrosive, with large viscosity and no crystal. Corrosion and shock resistant diaphragm pressure gauge has features of both corrosion-resistant and shock-resistant gauges.
Structure Principle

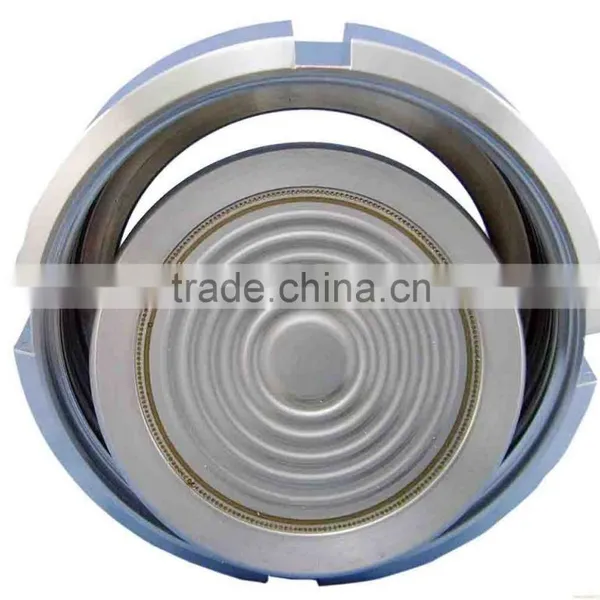

Gauge is made up of measurement system (including flange joint, bellow diaphragm), driving indication mechanism (including connection rod, gear driving mechanism, needle and scale) and housing (including case and cover).Housing is splash-proof structure, with excellent sealing performance to protect inner components from dirt.
Gauge works based on elastic component (diaphragm on measuring system) deformation. Medium pressure makes diaphragm become deformed---displacement, driven by driving mechanism with help of connection rod and then amplified, finally, needle on the gear will indicate the measuring value.
Technical Parameters
Accuracy: 2.5%
Ranges:0~0.06,0~0.1,0~0.16,0~0.25,0~0.4,0~0.6,0~1,0~1.6,0~2.5,-0.1~0,
-0.1~0.06,-0.1~0.15,-0.1~0.3,-0.1~0.5,-0.1~0.9,-0.1~1.5,-0.1~2.4MPa
0~1.6,0~2.5,0~4,0~6,0~10,0~16,0~25,0~40KPa
-1.6~0,-2.5~0,-4~0,-6~0,-10~0,-16~0,-25~0,-40~0 KPa
-0.8~0.8,-1.2~1.2,-2~2,-3~3,-5~5,-8~8,-12~12,-20~20 KPa
Working pressure: dead load is up to 3/4 of upper limit; stress alternating is up to 2/3 of upper limit; instant pressure is up to upper limit.
Working environment temperature: -40~70℃ (relative humidity is not more than 85%)
Temperature influence: when working temperature deviation is 20±5℃, the error change is not more than 0.6%/10℃.
Working position: vertical mounting
Housing: IP64
Pressure measuring element: double capsule
Case: stainless steel
Scale: stainless steel
Needle: aluminum, black
Gauge glass: common glass
Thread: 60 M14 *1.5;100/150 M20*1.5, other specifications are optional
Specification and parameters
Model |
Range |
Pressure bearing size D1 |
Housing outer diameter D |
Weight Kg |
YPF-100A |
0~0.06,0~0.1,0~0.16,0~0.25,0~0.4 0~0.6,0~1,0~1.6,0~2.5,-0.1~0 -0.1~0.06,-0.1~0.15,-0.1~0.3,-0.1~0.5 -0.1~0.9,-0.1~1.5,-0.1~2.4Mpa |
Φ85 |
Φ100 |
1.6 |
|
YPF-100B YPF-100B-F | ||||
Φ115 | ||||
YPF-150A |
Φ85 |
Φ150 |
1.8 |
|
|
YPF-150B YPF-150B-F | ||||
Φ115 | ||||
|
YPF-100B YPF-100B-F |
0~1.6,0~2.5,0~4,0~6,0~10 0~16,0~25,0~40* -1.6~0,-2.5~0,-4~0,-6~0,-10~0,-16~0,-25~0,-40~0* -0.8~0.8,-1.2~1.2,-2~2,-3~3,-5~5,-8~8,-12~12,-20~20*KPa |
Φ160 |
Φ100 |
2.9 |
|
YPF-150B YPF-150B-F |
Φ160 |
Φ150 |
3.2 |
*pressure bearing size D1 of 0~40,-40~0,±20KPa is Φ85
