WZP-630 Thermal Resistance With Ceramic Tube

WZP-630 Thermal Resistance With Ceramic Tube thumbnail-1
WZP-630 Thermal Resistance With Ceramic Tube thumbnail-2
WZP-630 Thermal Resistance With Ceramic Tube thumbnail-3
WZP-630 Thermal Resistance With Ceramic Tube thumbnail-4
WZP-630 Thermal Resistance With Ceramic Tube thumbnail-5
WZP-630 Thermal Resistance With Ceramic Tube photo-1
WZP-630 Thermal Resistance With Ceramic Tube photo-2
WZP-630 Thermal Resistance With Ceramic Tube photo-3
WZP-630 Thermal Resistance With Ceramic Tube photo-4
WZP-630 Thermal Resistance With Ceramic Tube photo-5
US$ 45 - 330 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CEPAI
Model Number:
WZP-630
Contact Supplier Request Quote Chat Now
Cepai Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai jiagnsu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CEPAI
Model Number WZP-630
Usage Other
Theory Temperature Sensor
Accuracy I
Temperature Range 0-500
Product Description





Brief Description



The industrial assembly-type thermocouple is used as a sensor to measure temperature, usually matched with display instruments, recording meter and electronic regulator. It can directly measure temperature from 0oC to 1800oC of liquid, vapor, gas medium and solid surface during various production processes.

Since 1987, according to the national regulations, our factory have been producing thermocouple made from PtRh30-PtRh6, PtRh10, NiCr-NiSi, NiCr-CuNi, Cu-CuNi, Fe-CuNi etc under the IEC international standard index numbers, and JB/T9238-1 999 standard as well.



Category

Model

Graduation

Range

Allowable error(difference t℃)

Platinum rhodium30-Platinum rhodium6

WRR

B

0-1800

±1.5℃ or ±0.0025 |t|

Platinum rhodium10-platinum

WRP

S

0-1600

±1.5℃ or ±0.0025 |t|

Nickel chromium-nickel silicon

WRN

K

0-1300

±2.5℃ or ±0.0075 |t|

Nickel chromium-copper nickel

WRE

E

0-800

±2.5℃ or ±0.0075 |t|

 WZP-630 thermal resistance with ceramic tube

Models



W

Temperature meter

R

Thermocouple

thermocouple material

R) Platinum rhodium30-Platinum rhodium6

P) Platinum rhodium10-platinum

N) Nickel chromium-nickel silicon

E) Nickel chromium-copper nickel

 install and fixed type

1) without fixed device

2)fixed thread type

3)movable flange type

4)fixed flange type

5)movable flange with square tube type

6) fixed thread with tapered tube type

 junction box type

2)splash proof type

3)waterproof type

4)explosion-proof type

design series number

0)ø16mm protecting tube

1)ø25mm protecting tube(duplex tubes)

2)ø16mm high aluminum tube(simplex tube)

3)ø20mm high aluminum tube

 WZP-630 thermal resistance with ceramic tube

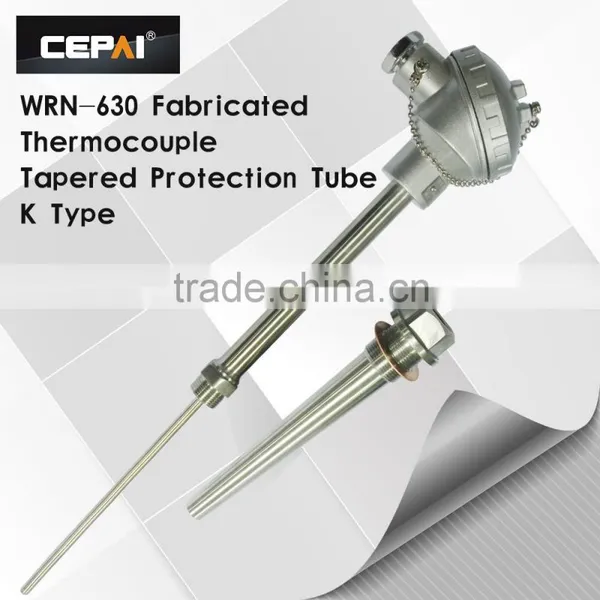

Fixed Thread Thermocouple with tapered tube

Thermocouple

Model

Graduation

Temp range ℃

Protection tube material

Specs

Junction

Box

(head)

Total length

L mm

Insertion length

l mm

Simplex NiCr-NiSi

WRN-621





K

0~800



0~1000



1Cr18Ni9Ti

225



250



300



350



400





75



100



150



200



250





Splash-proof type

WRN-621A

Duplex Nicr-NiSi

WRN2-621

Simplex NiCr-CuNi

WRE-621





E

0~600

1Cr18Ni9Ti

WRE-621A

Duplex NiCr-CuNi

WRE2-621

Simplex NiCr-NiSi

WRN-631



K

0~800

0~1000

1Cr18Ni9Ti



Water-proof type

Duplex NiCr-NiSi

WRN2-631

Simplex NiCr-CuNi

WRE-631



E

0~600

1Cr18Ni9Ti

Duplex NiCr-CuNi

WRE2-631

Note: 1) Thermal-responsetime-T0.5<90seconds                    2) Nominal pressure:2.5Mpa

WZP-630 thermal resistance with ceramic tube

Model

Fixed thread specs

Mo

 WRN-620, 621

 M33×2

 WRN-620A,62lA

 Gl”

 WRN2-620, 621

 M33×2

 WRE62l-1

M33×2

 WRE-621A

Gl”

 WRE2-621

 M33×2

 WRN-631

 M33×2

 WRN-631

 M33×2

 WRE631

 M33×2

 WRE2-631

 M33×2

 WZP-630 thermal resistance with ceramic tube



Welded Thermocouple with fixed tapered tube



Thermocouple

Model

Graduation

Temperature

℃

Protection

casing material

Response

timeT0.5S

Operation

End

Simplex NiCr-NiSi

WRN 624



K



0~600



1Cr18Ni9Ti

<20

Connected with shell

WRN-625

<30

insulation

Simplex NiCr-CuNi

WRE-624



E

<20

Connected with shell

WRE-625

<30

insulation



Note: 1) head is water-proof

 2) Nominal pressure: 30Mpa, flow speed:<80m/ s



Packaging & Shipping

 WZP-630 thermal resistance with ceramic tube

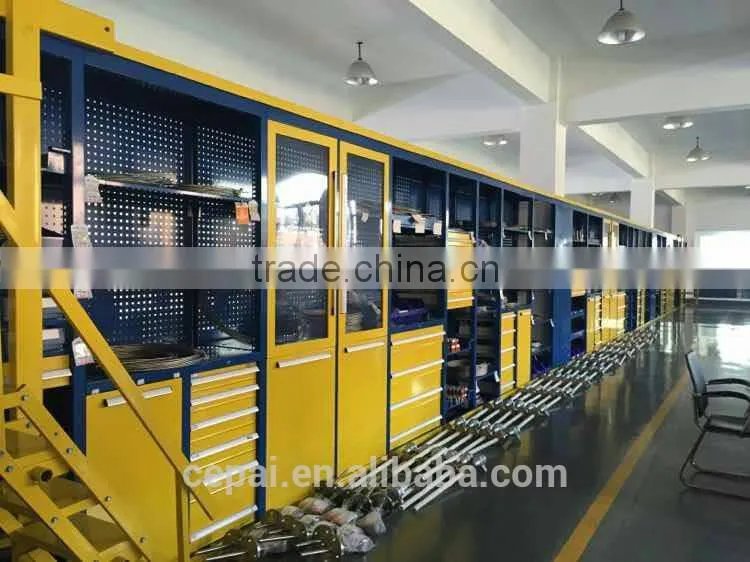

Company Information
