vertical Granule food packing machine; soybean packaging machine; grain filling and sealing packing machine; seeds form-fill-seal packing machine.

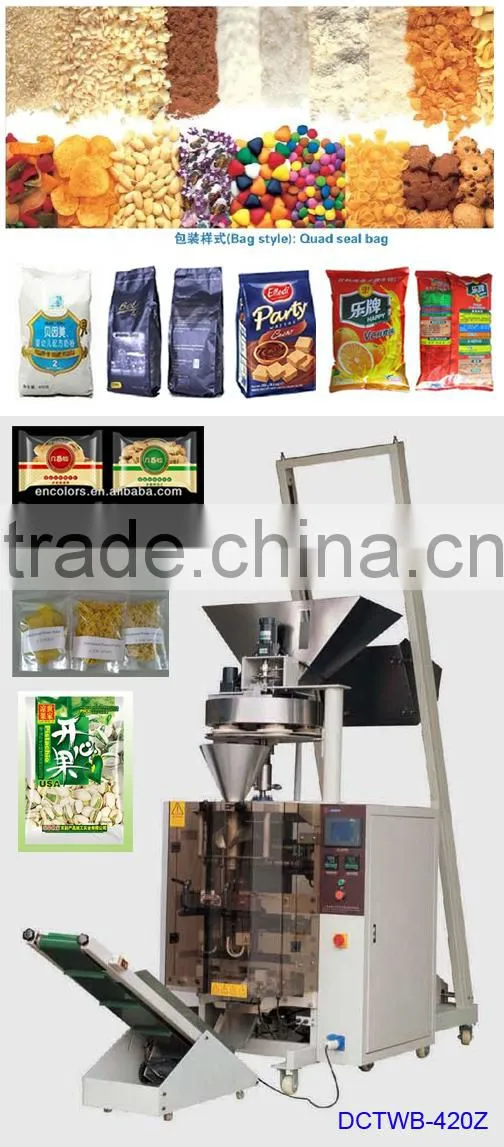

DCTWB-420Z
1:Auto feeding,measuring,Filling,bag making and outputing
2:PLC control

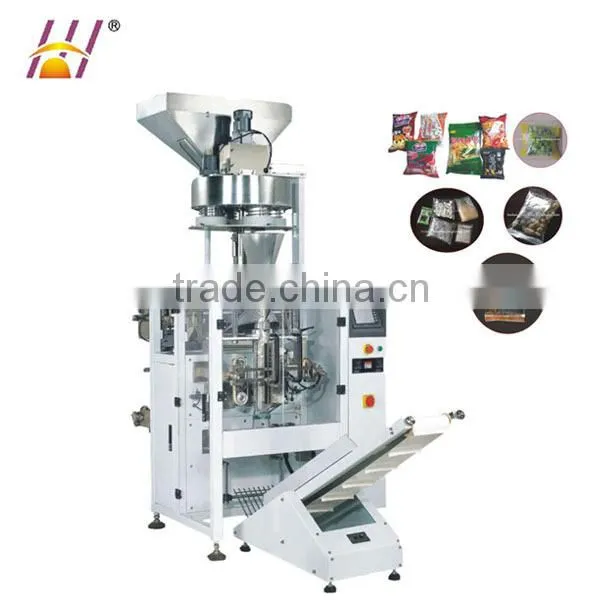

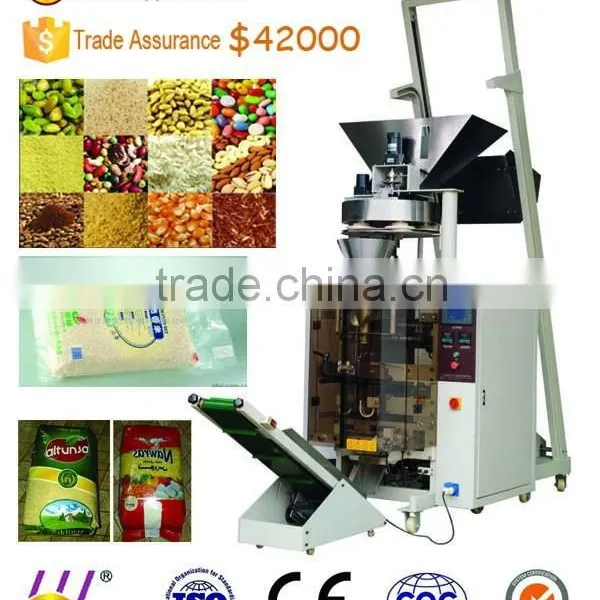

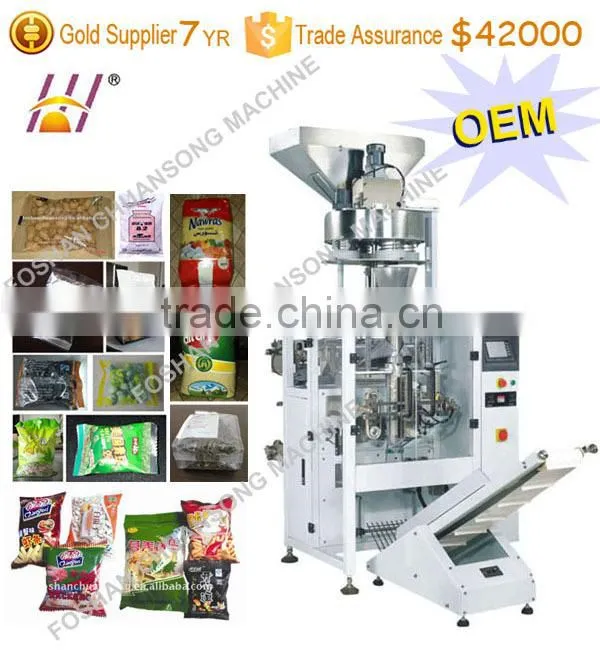

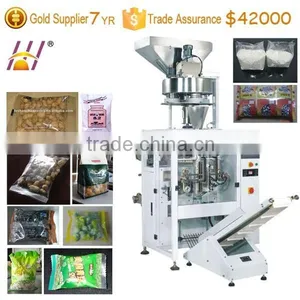

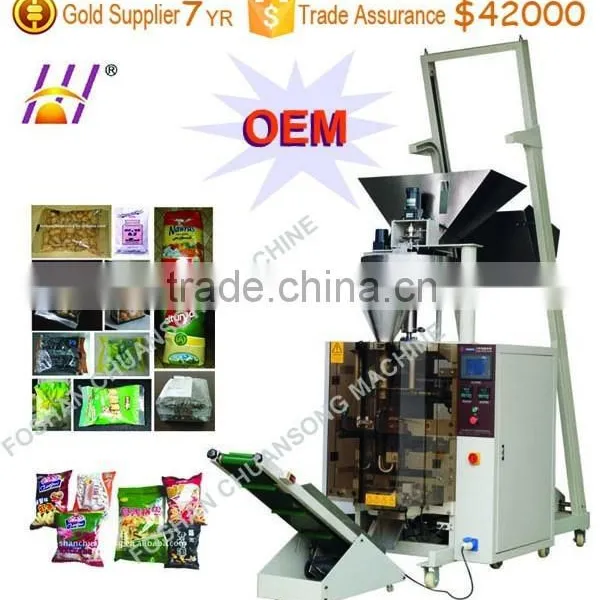

Complete set of this machine
1. DCTWB-200 main machine
2. Cup metering device
3. Material elevator
4. Finished product conveyer
Technique Specification
Item No. |
DCTWB-420Z |
Air consumption |
2.5m3/min 6kg/cm2 |
Max. Film width |
Max.420mm |
Bag length |
80-240mm |
Bag width |
50-180mm |
Packing speed |
50-70bags/min |
Packing thickness |
0.04-0.08mm |
Power supply specification |
220V,50/60Hz,2.4KAV |
Total weight of machine |
350kg |
Function and structure characteristics
1. The system can finish automatically all processes ,i.e Feeding, measuring, filling and bag making,
printing date, product output.
2. The machine struture is compact , rational , stable performance , easy operate .
3. The machine is featured with prauical , stable performance .
4. The opening and closing type metering device can be used according based one the material .
Application scope
Suitable for packing puffed food, fried food, shrimp strip, sea shell, rice, seeds, seed, soybean, peanut, granule products, grain, pumpkin seeds, mellon seeds, cashew nuts, pistachio, cereal, sawdust, lotus seeds, sunflower seeds, almond, forest nut, couscous, rapeseed, birds food, animal food, pep feed, sugar, salt, washing powder, etc .
