SSR Solid State Relay SSR 40A Yudian SSR15N
US$ 50 - 60
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Yudian
Model Number:
SSR15N
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AI-516PB Pt100 Modbus RTU Temperature ControllerUS$ 50 - 60MOQ: 10 Units -
AI-208AG PID Temperature Controller 96 *96 mm SSR OutputUS$ 20 - 50MOQ: 5 Pieces
-
Yudian 4 20ma Pt100 Temperature TransmitterUS$ 40 - 100MOQ: 1 Piece
-
Process Technology Temperature Controller AI-516DUS$ 50 - 60MOQ: 5 Units
-
AI-516PB PID Pressure Regulator PID Pressure ControllerUS$ 50 - 60MOQ: 10 Units
Place of Origin
Fujian, China
Brand Name
Yudian
Model Number
SSR15N
Theory
Solid State Relay
Usage
Auto
Size
Miniature
Protect Feature
Epoxy
Contact Load
High Power

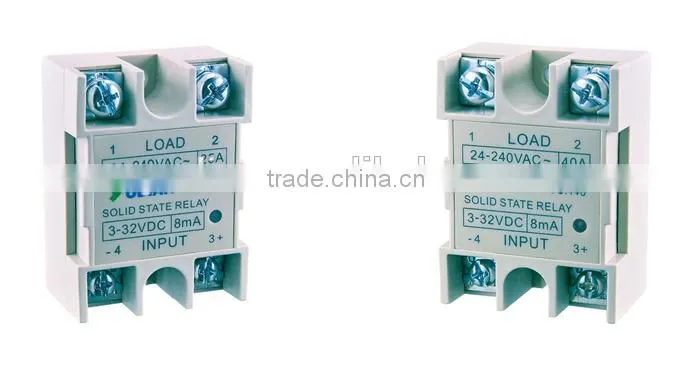

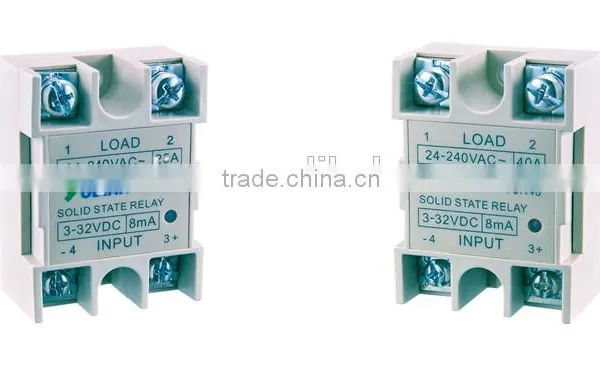

SSR Solid State Relay SSR 40A Yudian SSR15N
Product Description
Installation and Wiring for SSR Solid State Relay SSR 40A Yudian SSR15N
Main Features for SSR Solid State Relay SSR 40A Yudian SSR15N
- Economical
- Low disturbance
- Low on-state resistance
- Low output leakage current
- Low current consumption
- Low conducted
Technical Specifications for SSR Solid State Relay SSR 40A Yudian SSR15N
| MODEL | SSR15 | SSR20 | SSR25 | SSR40 | SSR40H |
| Output | |||||
| Load Current | 15A | 20A | 25A | 40A | |
| Load Voltage | 24~240VAC | 24~240VAC | 24~240VAC | 24~240VAC | 24~415VAC |
| Dimensions | (58L X 42W X 26H)mm, LED Status Indicator | ||||
| Input | |||||
| Input Voltage | 3V~32V | ||||
| Input Current | ≤8mA | ||||
| Release Voltage | ≥1.2V | ||||
| Max. on-state | ≤1.2V | ||||
| Max. Leakage Current | ≤2mA | ||||
| Max. Turn-On time (@50Hz) | <10mS | ||||
| Max. Turn-Off time (@50Hz) | <10mS | ||||
| Min. Off-State dv/dt | 500V/μs | ||||
| I/O Insulation Resistance | ≥100Mohm | ||||
| I/O Dielectric Strength | ≥2500V | ||||
| Ambient Temperature | -20℃~80℃ | ||||
Applications for SSR Solid State Relay SSR 40A Yudian SSR15N
- Industrial Ovens
- Plactics Industry
- Hot Stamping Machines
- Packing Equipment
Packaging & Shipping
You will get:
- A piece of temperature controller;
- A paper of user manual;
- Three/ Five/ Ten-year warranty card and Quality Approval card;
- A lable of units;
- A pair of installaton brackets;
- Nice package carton box with Yudian logo.
More Products
Our Services
Company Information
FAQ
- Factory with 26 years experience.
- Three to ten years warranty time.
- Quick delivery ( within 3 working days).
- Retail/ Wholesale/ OEM/ ODM available.
- Better price for bulk order.
- We provide after sales service and technical assistance as customers requirement and needs.
