Specifications
mig-200 co2 mig welding machineLow cost but high effciency
can be adjusted for different requirement
small splash
good work

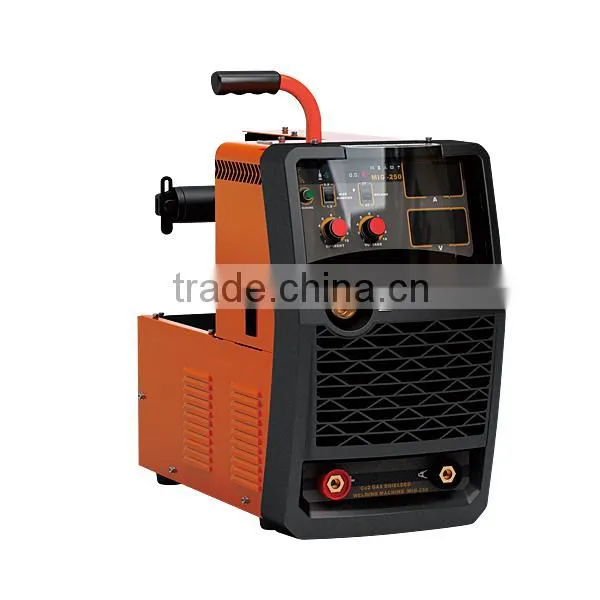

mig-200 igbt inverter co2 mig welding machine
| Inverter CO2 Gas Shielded Welding Machine | ||
| Model | MIG-200Y | MIG-250Y |
| Type | MOSFET/IGBT | |
| Rated input voltage (V) | single phase AC220 ±15% | three phase AC380 ±15% |
| Rated frequency (Hz) | 50/60 | |
| Rated input current (A) | 23.5 | 10.5 |
| Output current (A) | 180 | 220 |
| Output voltage (V) | 23 | 25 |
| Duty cycle (%) | 60 | 60 |
| Efficiency (%) | 85 | 85 |
| Power factor | 0.93 | 0.93 |
| Diameter of wire (mm2) | 0.8 | 1.0 |
| Type of wire feeder | built-in | built-in |
| Net weight of machine(KG) | 33.7 | 35.2 |
| Gross weight of machine packing(KG) | 40 | 41.3 |
| Gross weight of accessories packing (KG) | — | — |
| Dimension of machine (mm) | 630×315×695 | 630×315×695 |
| Dimension of packing- machine (mm) | 660×370×750 | 660×370×750 |
| Dimension of packing-wire feeder (mm) | — | — |
| including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, MIG torch×1pcs, | ||
PLS NOTE:
The average of our welding machine lasts between FIVE and SIX years.
If there were problems in seven days,we replace the new one for you.
Why choose ANDELI Brand welding machine?
1. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
2. We use all new components,TOSHIBA mosfet tube,FUJI diode,NICON capacitor and so on imported components.
3. We adopt SMT technology to decrease failure rate and it is convenient to repair the machine and reduce the cost of repairing,we just need to change the bad pcb board.
4. We have successfully exported to Indonesia, Malaysia, and Thailand and so on foreign countries in all more than ten thousand of each model.We all get good feedback.
5. For large order,our engineer can come to your country Site Instruction.
6. We give customer 1% FREE SPARE PARTS (include pcbs with components and additional mosfet tube and components) to support repairment.
7. We provide a FREE ONE YEAR WARRANTY for all our items.
8. OEM brand.
Achievements:
Our competive :
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
Send inquiry now ,get offer in 24 hours ! Even weekends
