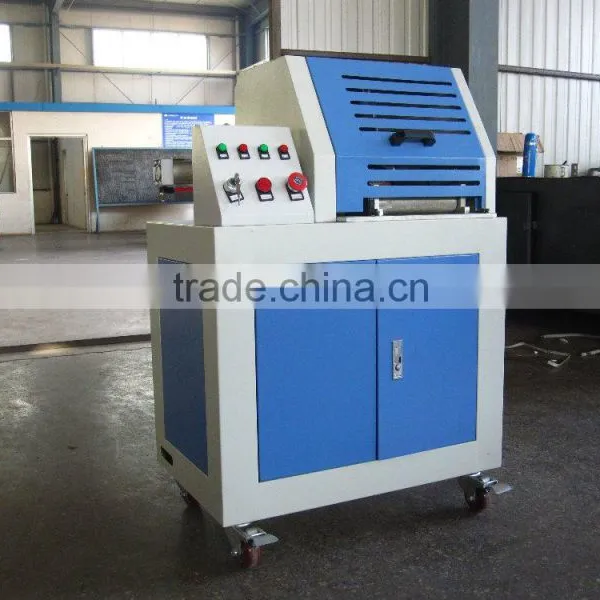

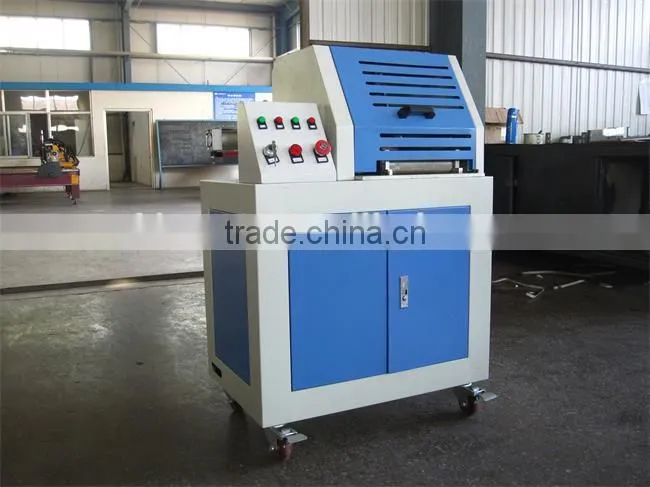

high speed low cost metal cutting and grooving machine 0.3-3mm
This CNC slotting machine, mainly used for the logos, signs, neon signs, billboards, light boxes, outdoor advertising and other advertising channel letters processing.
Features
1.Automatic feed, automatic slotting, automatically adjust the depth of slotting ,can slot the stainless steel, iron, aluminum and other metals width within 200mm.
2.With compact structure and scientific design, the machine realizes the stable operation because of the high-rigidity machine structure, and Integral floor design.
3.Elastic double roller design for the feeding structure, ensures smooth and precision feeding radically.
4.Stepping motor controls the feeding, grooving depth, can slot complex fonts once completed with high speed, high precision
5.Angle grinding for the slotting cutter , fast speed, high efficiency, low cost.
6.Automatic wear compensation for angle grinding, grooving depth adjustment automatically, without manual adjustment, which greatly improves the production efficiency compares the current manual or semi-automatic.
Specifications
|
rated voltage |
220v |
|
air pressure |
0.5-0.8Mpa |
|
application Materials |
Aluminum ,Iron, galvanized sheet, stainless steel and other metals |
|
Material Width |
≤200mm |
|
Material thickness |
0.2-3mm |
|
Total Power |
≤1000w |
|
Machine Size |
750*730*1200 |
|
Weight |
98kg |
