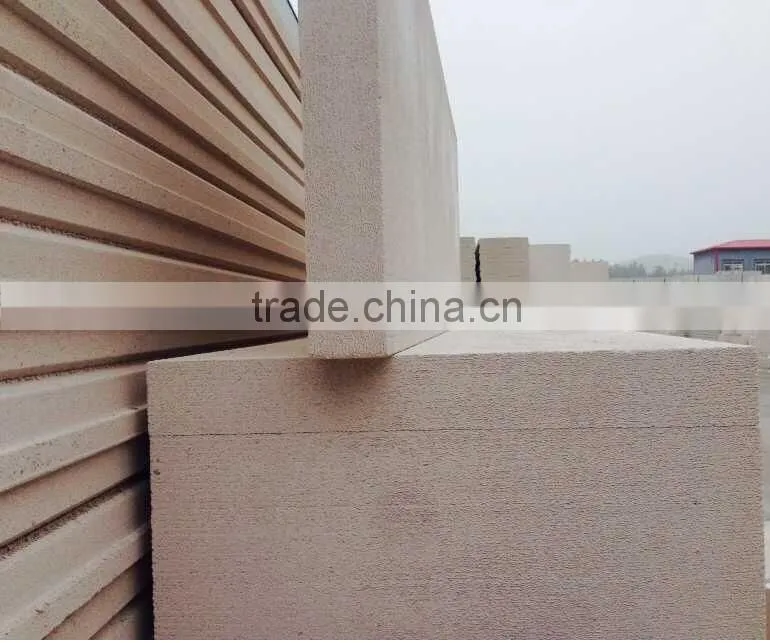

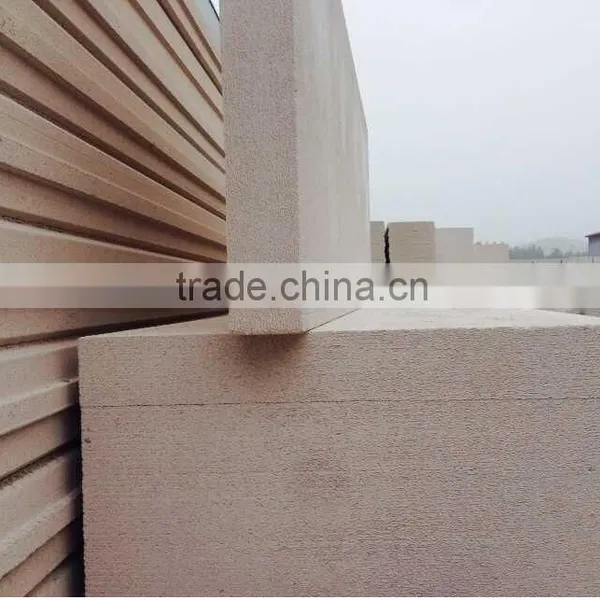

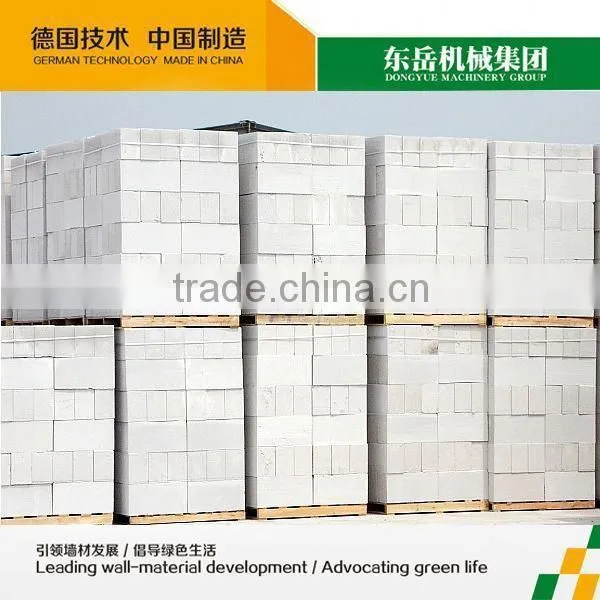

AAC ( ALC) lightweight concrete wall panel
Features & Advantages of new building material aac panel
1. Lightweight: Aerated concrete density is usually 400-900 kg/m3(according to the market),
which is 1/3 of clay block and 1/5 of common concrete.
2.Fireproof: Most of the major raw materials is inorganic materials, so it has good fire resistance,
and do not emit harmful gases when meet fire
3.Sound insulation: As the material inside has a large numbers of the pores and porous, which
has a good thermal insulation properties.
4.Thermal Insulation: Thermal conductivity is 0.9-0.22 W/(MK), which is 1/4 of clay bricks.
5.Anti-seismic: It can improve the two seismic than the brick level.
1.specification
All our AAC panels are 100% conform with the international quality standards GB 11968-2006.
AAC panel Sizes
Length : 2700-6000mm
Breadth: 600mm
Height : 50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm
Competitive price and high quality

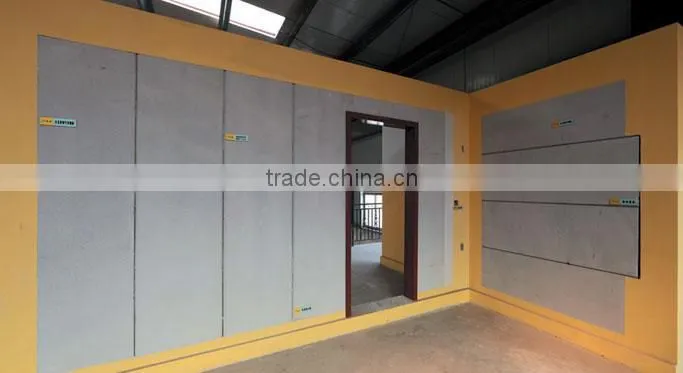

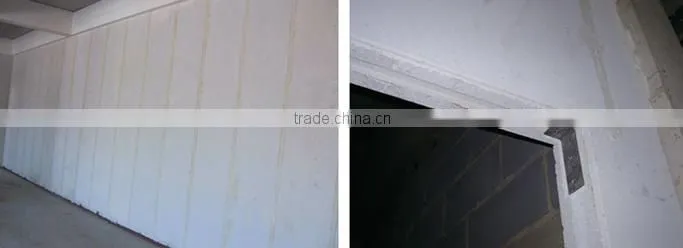

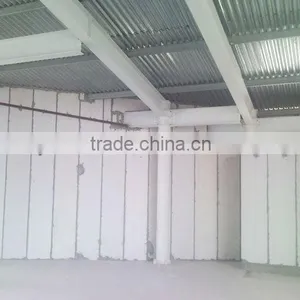

2.Internal wall panel

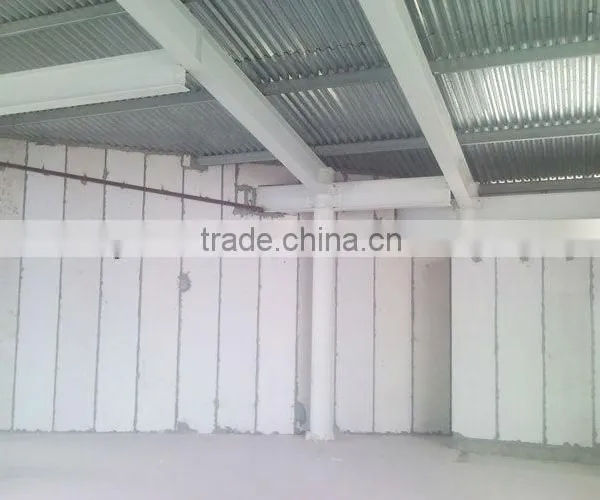

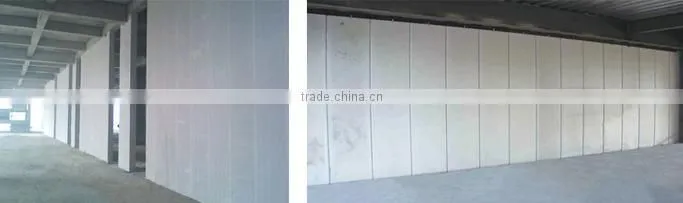

AAC panel can be used directly in internal wall of concrete structures and steel structures, such as in hotels, schools, offices, market places and houses etc. The internal walls such as household walls, separating walls, partition walls in bathrooms and kitchens etc conform to hang various things such as air conditioning, water heater, radiator, hanging cases etc.
Compared with traditional internal wall partition materials, AAC internal panels have obvious advantages in various technical performances: lightweight, high strength, thermal insulation, fire resistance, sound insulation, seepage prevention, frost resistance, durability, anti-seismic, high softening coefficient, no radiation, good creativity, scientific installing method, convenient and quick construction.
AAC internal panels are reinforced by antirust double-layer and two-way steel mesh. They have good load-bearing capacity, the static hanging weight in a single point being 120kgs. They are produced in high temperature, high pressure and steam curing, with the minimum shrinkage ratio in the inorganic materials, caulked with special polymer binders, which can effectively prevent cracking.
AAC internal panels are the thinnest among those with the same capacity in sound insulation and fire protection. Using AAC internal panels can effectively increase the usable area of a building, and reduce energy consumption. Without using structure columns, beams and other auxiliary components, it can reduce the wall load, thereby reduce the cost of the building.

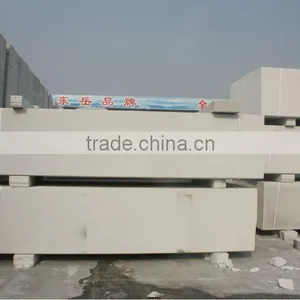

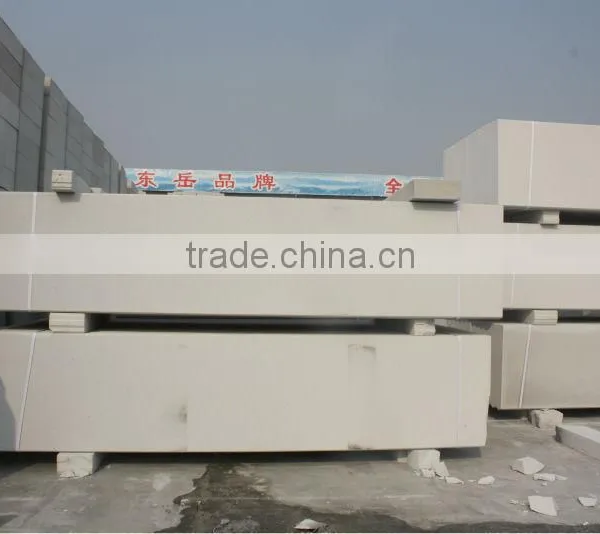

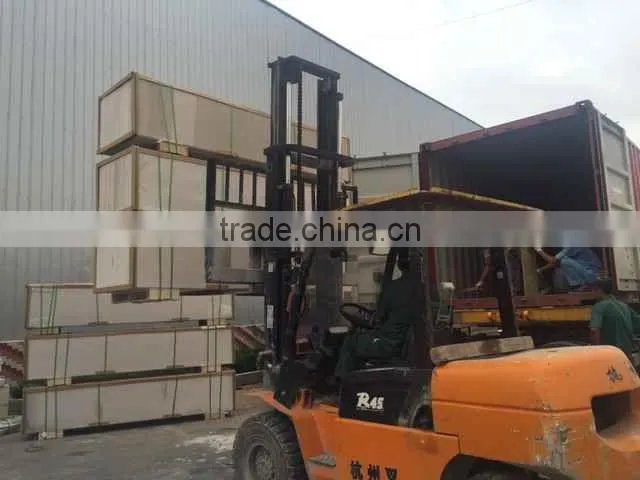

3.AAC panel loading
