Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > EPD-10X Edge Position Controller Motor Drive
EPD-10X Edge Position Controller Motor Drive
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
True Engin
Model Number:
EPD-10X
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EPD-2XX Linear Actuaor dc Servo Motor Driver for Epc Control SystemNegotiableMOQ: 1 Unit -
Linear Synchronous Motor Drives for Web Guilding ControlNegotiableMOQ: 1 Unit
-
High Quality Servo Actuator Motor Driver for Web Guilding ControllerNegotiableMOQ: 1 Unit
-
China Linear Synchronous AC220 Motor Drive for Web Guilding ControlNegotiableMOQ: 1 Unit
-
Linear Synchronous AC220 Motor Drive for Web Guilding ControlNegotiableMOQ: 1 Unit
Place of Origin
Hubei, China
Brand Name
True Engin
Model Number
EPD-10X

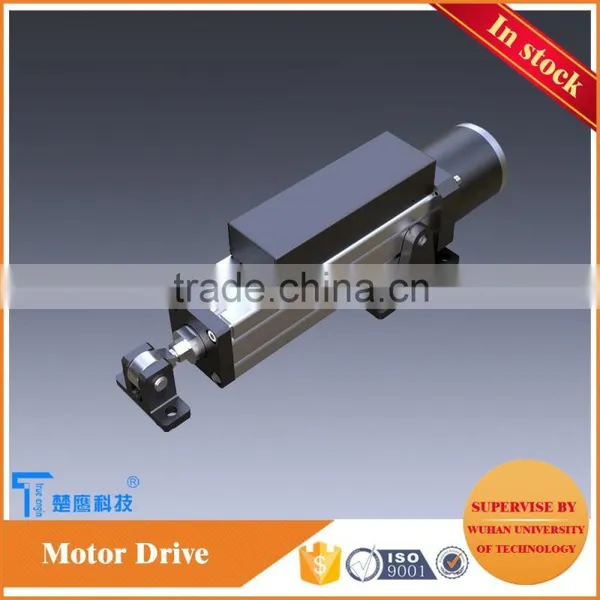

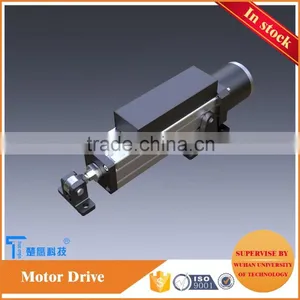

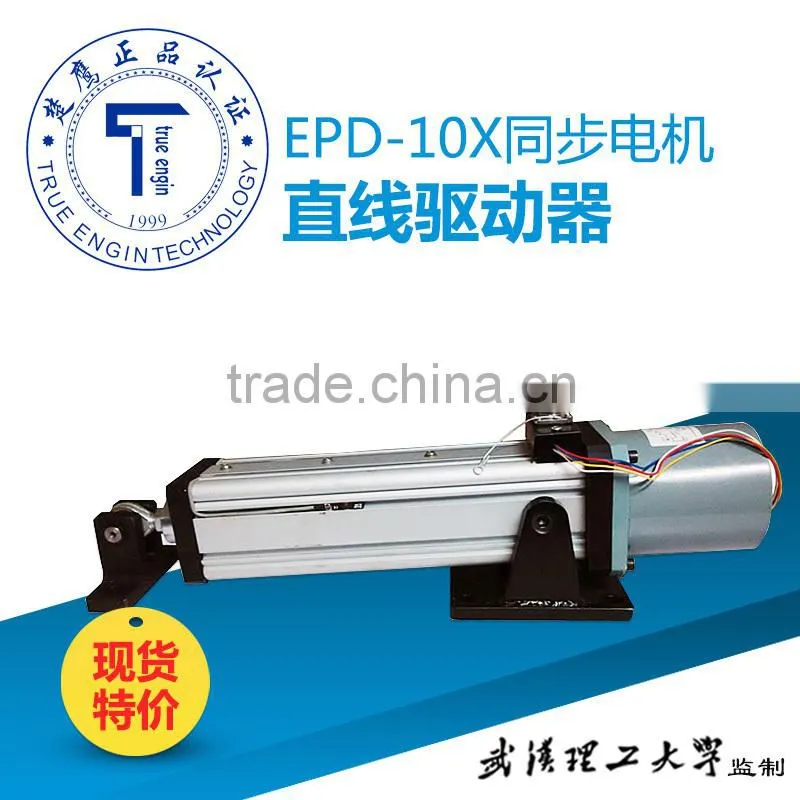

EPD-10X edge position controller motor drive
CHARACTERISTICS
1,pedestal construction 15°rotate in vertical direction
2,accurate ball screw rod
3,limit switches/middle switches
4,working voltageAc220V
5,synchronous motor90TDY(110TDY)
6,driver distance80-150mm
7,maximum thrust150Kg
8,driver speed10mm/sec
9,can be cooperated with EPC-100
TECHNICAL PARAMETERS
model |
size | weight |
accuracy |
response time |
Deviation speed |
||||
| H | H1 | L | L1 | L2 | |||||
EPD-101 |
95 | 43 | 328±70 | 95 | 100 | 800Kg |
±0.2mm |
15ms | 0-10mm/S |
EPD-102 |
106 | 60 | 328±70 | 110 | 117 | 1500Kg |
±0.2mm |
15ms | 0-10mm/S |
EPD-103 |
135 | 73 | 328±70 | 150 | 137 | 2500Kg |
±0.2mm |
15ms |
0-10mm/S |
EFFECT PICTURES
