Help CenterEPC AC Servo Motor
US$ 250 - 260
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
True engin
Model Number:
EPC100
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Line Web Guilding Servo Motor DriverNegotiableMOQ: 1 Unit -
Digital Linear Synchronous Actuator 700kgNegotiableMOQ: 1 Unit
-
EPD104 Digital Web Guiding Actuator Motor DriveNegotiableMOQ: 1 Unit
-
EPD104 Digital Web Guiding Actuator 200kgNegotiableMOQ: 1 Unit
-
EPD104 Digital Linear Synchronous Actuator 200kgNegotiableMOQ: 1 Unit
Place of Origin
Hubei, China
Brand Name
True engin
Model Number
EPC100
Type
Roller
Use
For Man Roland Printer
Printing Type
Offset Printing Machine

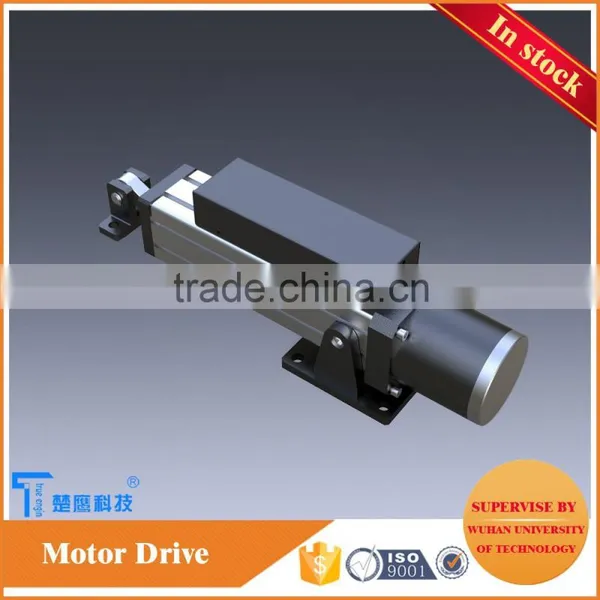

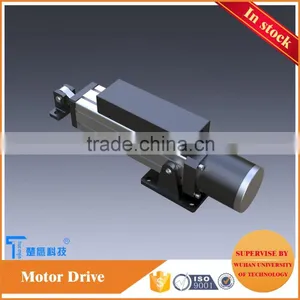

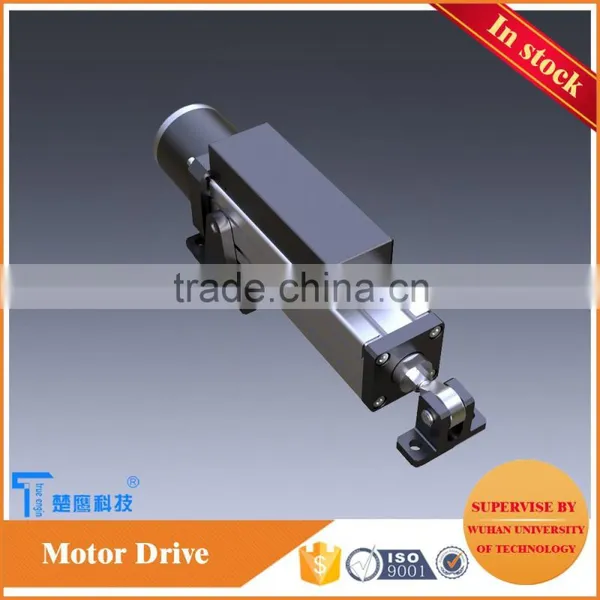

EPC web guilding actuator
CHARACTERISTICS
1,pedestal construction 15°rotate in vertical direction
2,accurate ball screw rod
3,limit switches/middle switches
4,working voltageAc220V
5,synchronous motor90TDY(110TDY)
6,driver distance80-150mm
7,maximum thrust150Kg
8,driver speed10mm/sec
9,can be cooperated with EPC-100
TECHNICAL PARAMETERS
model |
size | weight |
accuracy |
response time |
Deviation speed |
||||
| H | H1 | L | L1 | L2 | |||||
EPD-101 |
95 | 43 | 328±70 | 95 | 100 | 800Kg |
±0.2mm |
15ms | 0-10mm/S |
EPD-102 |
106 | 60 | 328±70 | 110 | 117 | 1500Kg |
±0.2mm |
15ms | 0-10mm/S |
EPD-103 |
135 | 73 | 328±70 | 150 | 137 | 2500Kg |
±0.2mm |
15ms |
0-10mm/S |
EFFECT PICTURES
CERTIFICATIONS
