Specifications
block machine use simen's motor , Mitsubishi PLC and Omron Travel Switch produce hollow solid and paver blockBrick making machine/construction material material/ fly ashBrick machine
We are a leading Manufacturer of block making machine, brick machinery, concrete block machine, brick making machine, cement brick machine, automatic block machine , paver brick machine, brick machine, hollow block machine, cement block making machine, for many years.

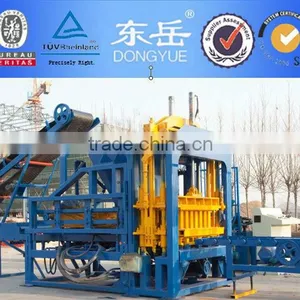

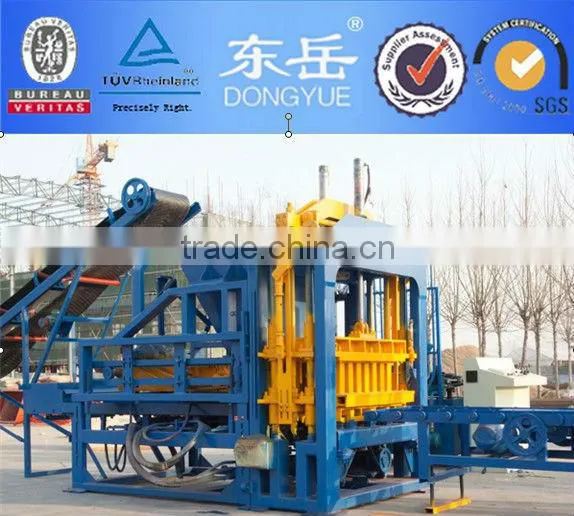

automatic block machine QT10-15 is suitable for the production of high aperture rate hollow brick, high adulteration fly ash agglomeration brick and so on.
1.automatic block machine QT10-15 advantage
(1)Mould structure: we design the mould structure specially in order to change the mould easily, about the mould lifespan,we use the latest heat treatment equipment to do carburization work
(2)About the electricity motor ,in Mixer and host machine ,we will use Germany Siemens motor ,because this two part nearly working all time in working day ,so we could use high level hard wearing motor for this ,and the motor we will also use CE standard ,
(3)About the switches ,we will select the France Schneider brand , it is could assure the working process smoothly .
(4) The Control System Using computer control and man-machine interface. Electrical equipments apply the well-known brands from Japan and Germany, like Japan Mitsubishi .
2.automatic block machine QT10-15 theoretical data
Dimension of host machine: 2.85x2.2x2.85 m
main vibrator style: lower mould vibration
Number of hydraulic vibrator:1
control style: PLC
forming style: hydraulic
Number of motor vibrator:2
hydraulic cylinders:3
Hopper capacity of concrete:0.7 M3
feeding style:360degree revolve
Moulding area;800x600 mm
forming height:40-250mm
Moulding period:15-20 S
vibration force:60 KN
forming blocks per mould:400x200x200mm 4
The size of the pallet:940x830 mm
Weight of the host machine:12.5T
Mixer style: JS750
General water Consumption:10 T
Voltage:380 V
Power:33.9 KW
3.automatic block machine QT10-15 production
Size(LxWxH) Pcs/Mould Pcs/hour Pcs/day(8hour)
400X100X200 20 3000-3600 24000
400X150X200 14 2100-2520 16800
400X200X200 10 1500-1800 12000
automatic block machine QT10-15 could produce many kind of hollow block ,solid brick ,porous block ,it is economic investment for client .
4. Guarantee
We will supply one year guarantee ,when the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help .
5.Voltage requirement
(1)380V / 50HZ-60HZ / 3 Phase
(2)415V / 50HZ-60HZ / 3Phase
(3)440V / 50HZ-60HZ / 3 Phase
(4)220V / 50-60HZ / 3 Phase
(5)240V / 50-60HZ / 3Phase
6. worker requirement
From loading material to transport finished block we need about 5-6 person to operate the whole line .
