Specifications

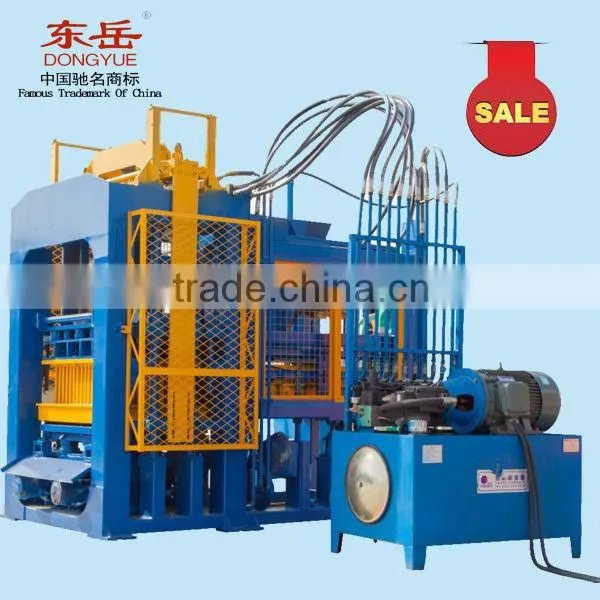

1.Automatic concrete block machine2.Siemens motor,heat treated mould mistibuish PLC
4.hydraulic pressure use Q235 steel
Solid brick hollow brick color paver road edge stone egg laying block machine egg layer brick machine oem cadona
- .Automatic concrete brick machine production line mainly advantage:
Till now, our automatic block making machine is available with QT4-15B series, QT4-15C series, QT6-15 series, QT6-15B series, QT8-15 series, and QT10-15 series. It has been certified by CE, SGS, TUV, and the like. Our machine has been approved by Bureau Veritas, TUV CERT.
Advantages of Concrete block/brick
1. Environmental friendly : Consumes Fly ash or other industrial waste
2. Environmental friendly : Saves invaluable top soil
3. Environmental friendly: needs no burning/backing.
4. Strength: Higher Strength Bricks.
5. Uniform Shape: Easier and faster Brick working.
6. Uniform Shape: Less Mortar in Brick work.
7. Uniform Shape: Less Mortar in Plaster.
8. Artificial Cement: Gains strength over time.
9. Artificial Cement: Walls can be left exposed/un plastered.
10. Better heat & sound insulation compared to red Bricks
11. Far Lesser brakeage during handling & transportation.
12. Better Vibration resistance compared to red Bricks
2. Detals instroducing of QT series Automatic concrete brick machine production line
A. QT4-15B automatic concrete brick machin prudction line
(1). Main Technical Parameter
Host machine demension: |
2800*1800*2700mm |
Rated pressure: |
40Mpa |
Main vibration form: |
platform vibration and hyraulic pressure |
Vibration frequency |
4600(r/min) |
Pallet size |
1050*550*25mm |
Molding cycle: |
15-25s |
Power |
25KW |
Weight of Machine |
7.5T |
Production capacity |
10m³/h |
(2).Production capacity
| Size | Quantity | Shaping Cycle | Per hour | |
| Hollow block | 400*200*200mm | 4 | 15-25s | 750pcs |
| Hollow block | 400*100*200mm | 8 | 15-25s | 1500pcs |
| fly ash brick | 230*110*76mm | 24 | 15-25s | 4000pcs |
| color brick | 200*100*60mm | 16 | 15-25s | 2800pcs |
B.QT6-15 automatic concrete brick machine production line
(1). Main Technical Parameter
Host machine demension: |
2850*2200*2850mm |
Rated pressure: |
60Mpa |
Main vibration form: |
platform vibration and hyraulic pressure |
Vibration frequency |
4600(r/min) |
Pallet size |
940*830*25mm |
Molding cycle: |
15-25s |
Power |
35KW |
Weight of Machine |
11.5T |
Production capacity |
20m³/h |
(2).Production capacity
| Size | Quantity | Shaping Cycle | Per hour | |
| Hollow block | 400*200*200mm | 6 | 15-25s | 1100pcs |
| Hollow brlock | 400*100*200mm | 12 | 15-25s | 2100pcs |
| fly ash brick | 230*110*76mm | 30 | 15-25s | 5000pcs |
| color brick | 200*100*60mm | 24 | 15-25s | 4000pcs |
C.QT10-15 automatic concrete brick machine production line
(1). Main Technical Parameter
Host machine demension: |
3500*2200*2850mm |
Rated pressure: |
100Mpa |
Main vibration form: |
platform vibration and hyraulic pressure |
Vibration frequency |
4600(r/min) |
Pallet size |
1300*900*30mm |
Molding cycle: |
15-25s |
Power |
45KW |
Weight of Machine |
14T |
Production capacity |
30m³/h |
(2).Production capacity
| Size | Quantity | Shaping Cycle | Per hour | |
| Hollow block | 400*200*200mm | 10 | 15-25s | 1100pcs |
| Hollow brlock | 400*100*200mm | 14 | 15-25s | 2100pcs |
| fly ash brick | 230*110*76mm | 42 | 15-25s | 7500pcs |
| color brick | 200*100*60mm | 35 | 15-25s | 6000pcs |

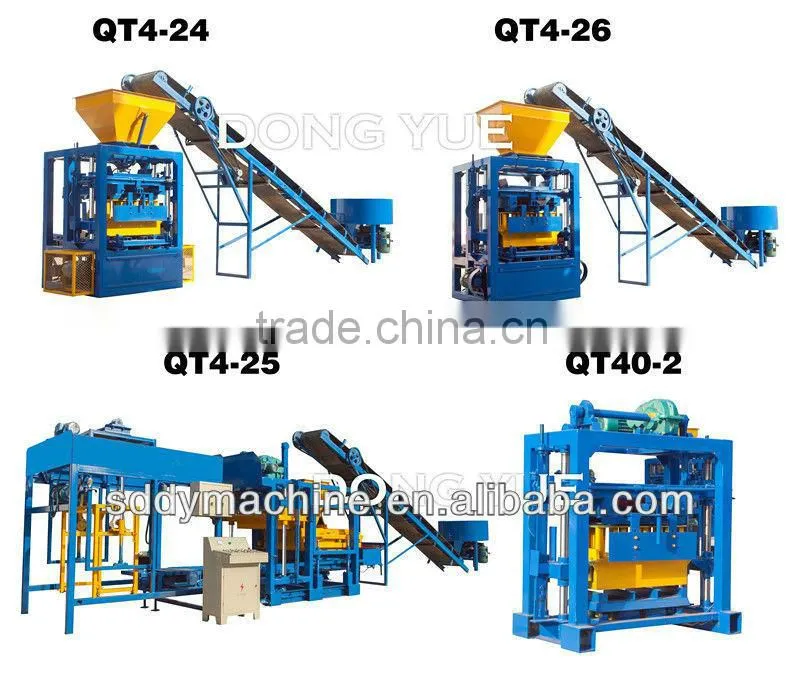

D.Small / Manaul / Mobile / Egg Laying Brick Making Machine
F.Simple / Small Concrete / Cement Brick Making Machine
Our company is the biggest manufacture for AAC block machine / Fly ash aerated concrete block machine / Concrete Block Making Machine/ baking free block making machine in China, Our company offers complete production lines for premium building components such as the autoclaved sand-lime brick, autoclaved aerated concrete block, and autoclaved aerated concrete / autoclaved lightweight concrete panel.
we has set up office in India,Vietnam, Indonesia, and we can supply the best technology support and service for customers.
We can supply our customer for designning, production, installation, commissioning, training and good after-sale service. Capacity: from 50000 cubic meter to 300,000 cubic meters per year.
We also produce kinds of concrete /cement block making machine, including automatic brick making machine, semi-automatic brick making machine, manual brick making mahcine, hollow / solid brick making machine etc brick making machine.
