High efficiency bitumen mixing factory with low price
Price Service Product Service Technology Service

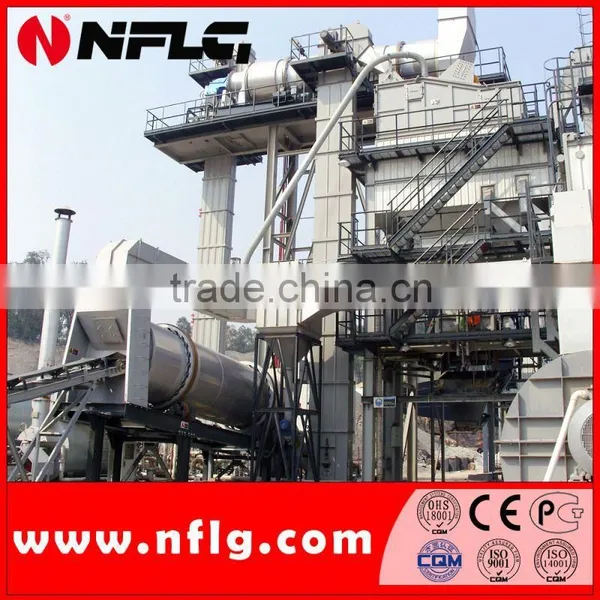

The bypass asphalt aggregate mixing equipment developed by NFLG provides a thermal efficiency of 90% and an energy reduction of 15%. The equipment uses the unique online intelligent detection. The burner independently developed by NFLG uses the double frequency conversion, various types of oil, and the original wear-resistant parts imported from Sweden which rank first in the world to provide safe, real-time and fast services.
1. Parameter for Bitumen Mixing Factory
| Model | PLB3000 | PLB4000 | PLB5000 |
| Capacity (under 5% aggregate moisture) | 240 t/h | 320t/h | 400t/h |
| Cold aggregate hopper quantities | 5 | 6 | 6 |
| Volume | 20 m³ | 20 m³ | 20 m³ |
| Drying drum model | GT 240 | GT 320 | GT 400 |
| Length/Diameter | 10 m * 2.5 m | 11 m * 2.8 m | 12.5 m * 2.9 m |
| Fuel | Diesel, heavy oil, natural gas, liquefied petroleum gas | Diesel, heavy oil, natural gas, liquefied petroleum gas | Diesel, heavy oil, natural gas, liquefied petroleum gas |
| Dust Collecting Model | Gravity dust collector+ bag filter | Gravity dust collector+ bag filter | Gravity dust collector+ bag filter |
| No. of screen layers | 5 layers | 6 layers | 6 layers |
| Screening area | 40 m² | 59 m² | 77 m² |
| Hot aggregate hopper | 36 m³ | 50 m³ | 70 m³ |
| Aggregate scale | 3250 kg | 4250 kg | 5250 kg |
| Powder scale | 600kg | 750kg | |
| Asphalt scale | 300kg | 500kg | 600kg |
| Mixer capacity | 3000 kg/batch | 4000 kg/batch | 5000 kg/batch |
| Finished product hopper | 220t | 230t | 250t |
2. Characteristics for Bitumen Mixing Factory
|
