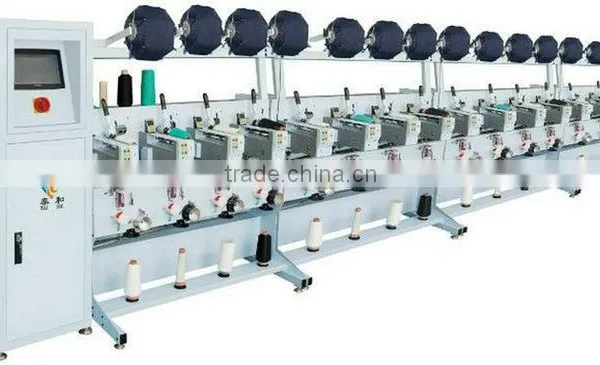

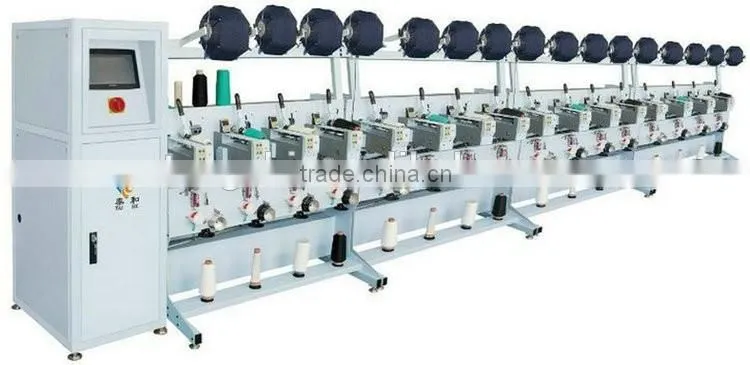

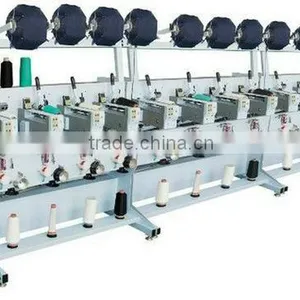

TTH-9B Hank to cone winding machine, it's used for rewinding yarns from hank to cone, the final package can be pineapple cone effect.
- The easiest operation with individual driving system
- A change of the TPM be small so high quality be right at a yield
- A winding of traverse diminish the occurrence of pilling
- The winding of the mixed yarn relaxed/ contracted by traversed action
- An individual fixing management with the suitable equipment.
Types of winding |
program |
Mechanical speed |
up to 500m/min (process speed depending on process parameters) |
Package shape |
freely programmable |
Traverse length |
147-250mm infinitely variable |
Take-up package diameter |
up to 280mm |
Package weight |
up to 4kg |
Supply package diameter |
up to 320mm |
Yarns |
textured polyester yarn, Nylon or flat filament yarn, elastic yarns, silk, staple yarns, fine technical yarns |
Take-up tubes |
cylindrical and conical up to 3°30′ conicity |
Layout |
single sided machine |
Number of spindles per section |
4 |
Max. number of spindles |
60 |
Gauge |
350-400mm |
Drive |
individual |
Installed power |
~280w per spindle |
Power consumption |
~120w per spindle |
Volume per section (L*W*H) |
1630*980*1920mm |
