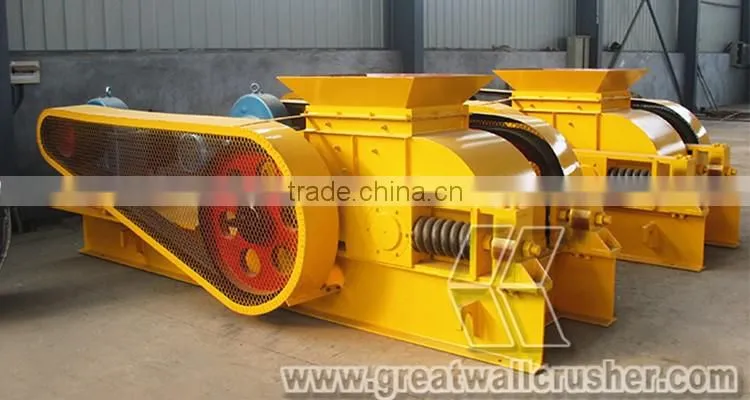

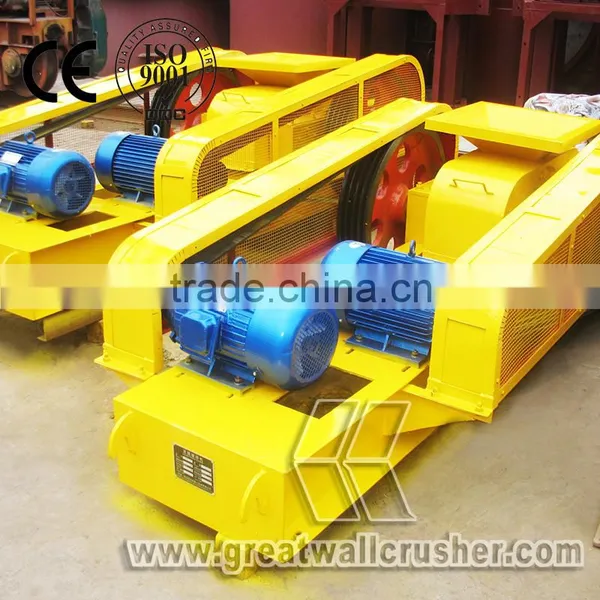

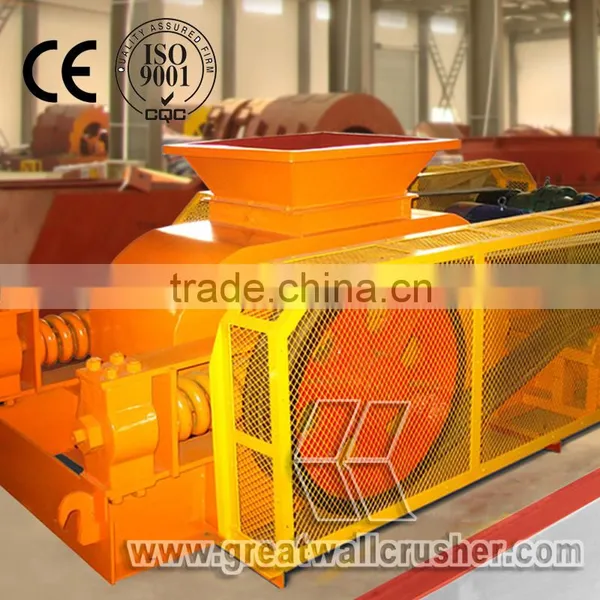

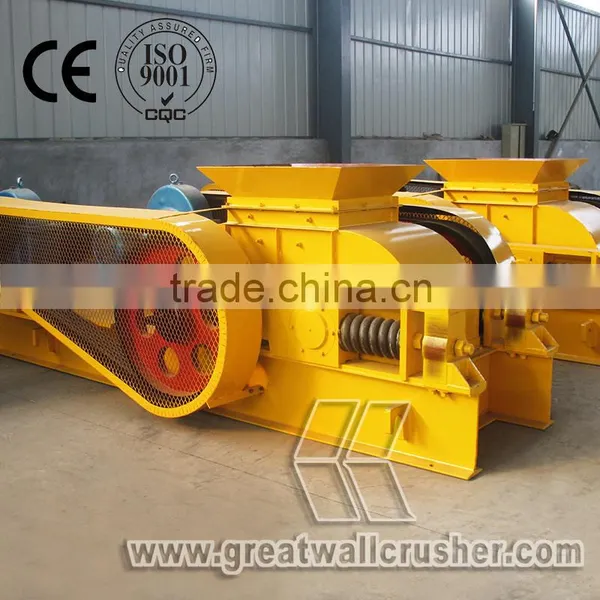

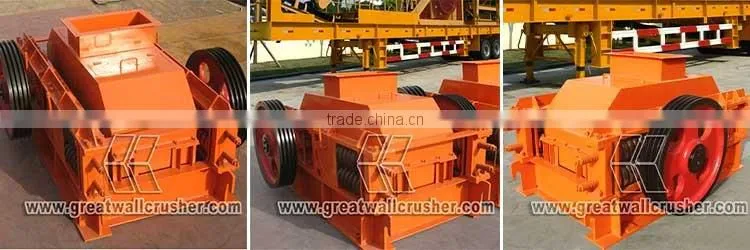

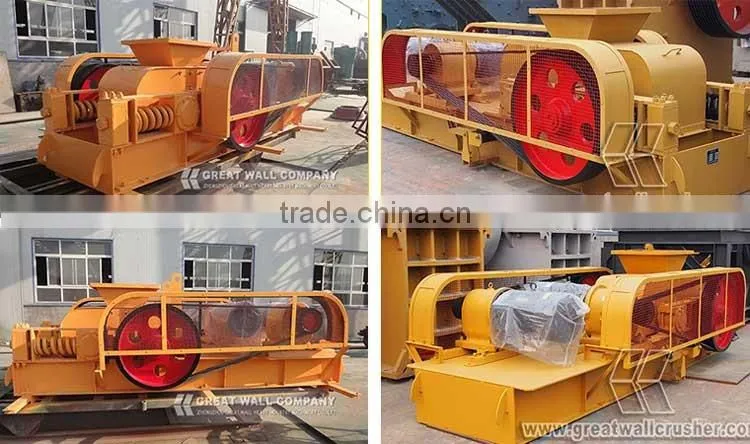

Great Wall crusher double roll, crusher double roll price
Great Wall crusher double roll, crusher double roll price Usage and Application
Crusher double roll is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.
Great Wall crusher double roll, crusher double roll price Structure and Working Principle
Structure
The Crusher double roll is mainly of Fixed Roller, Fixed roller bearing seat, Scraper device, Active Roller, Active roller bearing seat, Protection spring and hydraulic system, Bolts to fix spring, Top cover dismantling bolt, Roller observation window, Grease nipple, Machine lifting hole, Feeding inlet, Host pulley, Adjusting bolt of fixed roller, Foundation bolt hole,Bearing temperature sensor (users select the device) and so on.
Working principle
The motor drives the fixed roller and movable roller to work via reducer, V-belts or coupling. Materials are put into the space between the two rollers via the feed entrance. As the two rollers inward turning, the input materials are crushed, pressed, ground, and at last come out from the base of the machine.
The following picture shows the two teeth rollers of roller crusher and the working principle picture.

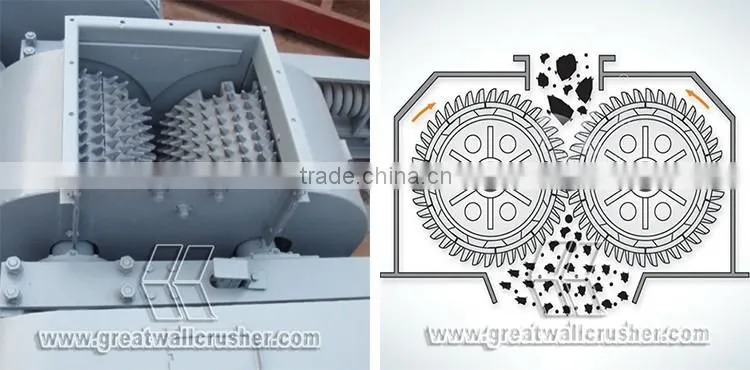

Teeth Roller Crusher: the crushing roller and working principle pictures

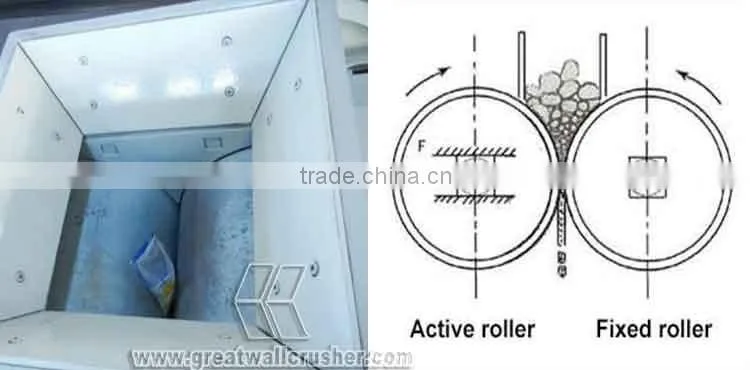

Smooth Roller Crusher: the crushing roller and working principle pictures
Great Wall crusher double roll, crusher double roll price Features
1. Compact structure, low noise and efficient;
2. Easy to install and only need simple foundation;
3. Can adjust the pressure and size easily.
4. Self-protection, the parts can not be damaged when hard materials such as the metals goes into the crushing cavity;
5. Low cost maintenance and easy to maintain.
Great Wall crusher double roll, crusher double roll price Main Specifications
Model |
Feeding Size |
Output |
Capacity |
Motor Power |
Weight |
Overall Dimension |
2PG400×250 |
<35 |
≤2-8 |
2-10 |
2×5.5 |
1.3 |
2110×870×810 |
2PG610×400 |
<65 |
≤2-20 |
5-20 |
2×15 |
3.9 |
3510×1420×1030 |
2PG750×500 |
<75 |
≤2-25 |
10-40 |
2×18.5 |
9.5 |
4210×1630×1260 |
2PG800×600 |
<80 |
≤2-25 |
12-45 |
2×22 |
10.8 |
4505×1780×1320 |
2PG1000×700 |
<100 |
≤3-30 |
20-65 |
2×30 |
14.9 |
5310×2175×1595 |
2PG1200×800 |
<120 |
≤3-35 |
35-80 |
2×37 |
25.5 |
6290×2270×1870 |
2PG1500×800 |
<130 |
≤3-45 |
50-120 |
2×75 |
33.7 |
7460×2410×2290 |
2PG1600×1000 |
<150 |
≤3-50 |
60-140 |
2×90 |
41.2 |
8220×2680×2475 |

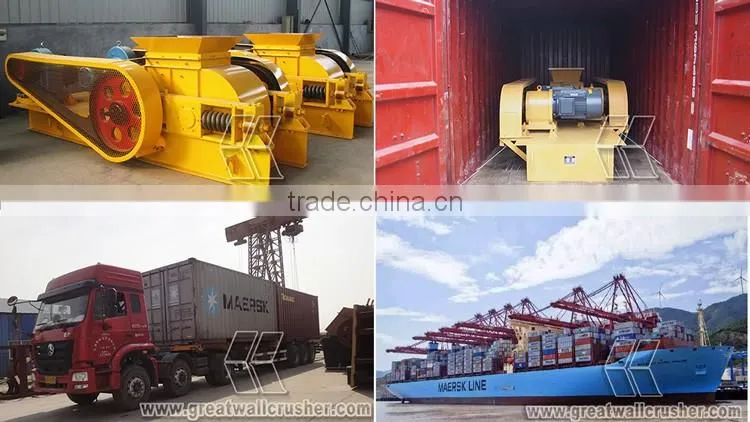

The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
Great Wall Company is a professional machine manufacturer with more than 30 years' experience, which specializes in manufacturing all kinds of large and medium sized heavy industry machines. The company not only has established system of designing, testing, inspecting and measuring, but also all kinds of modern production equipments, such as casting , heat treating, welding, machining and so on .
Great Wall Company has professional technology and great production strength, which can meet customers' growing demands. We will spare no efforts to keep improving ourselves to develop our company to be a well-known international enterprise with core competitiveness.
We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.
After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.
50 – 100 TPH low price crusher double roll in Philippines crushing plant
Mr. Fernandez from Philippines needs a crusher double roll. The main requirement as follow:
Material: mineral
Maximum feeding size: 15-80 mm
Output size: less than 15 mm
Capacity: 50 tons per hour
The required capacity is not too large, so double roller crusher is enough. And according to his feeding size and output size, 2PG1008 is suitable. The main specification of 2PG1008 as follow:
Maximum feeding size: 80 mm
Output size: 0.5-30 mm
Capacity: 15-130 TPH
Motor power: 22 x 2 KW
Crusher double roll has a series models, the capacity varied from 0.5 to 700 tons per hour. And the output size varies from 0.5 to 60 mm. So crusher double roll can be used in both medium and fine crushing and in larger or small crushing plant. The attractive factor is the crusher double roll price is cheaper than same specification crusher.
