Great Wall Raymond Mill For Sale
"Great Wall Make Great Machine"
Stone Mill Grinder Specifications

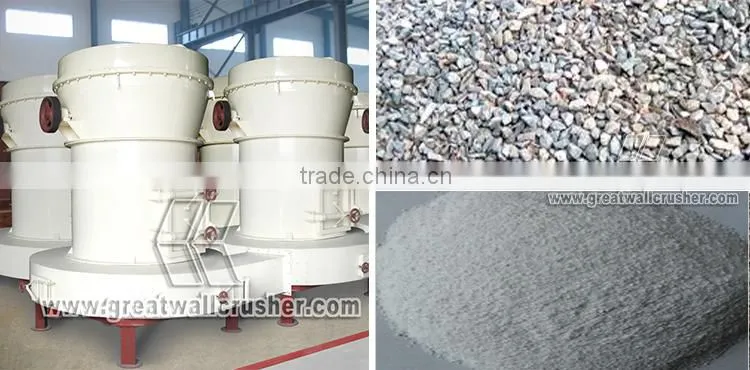

Stone mill grinder -- Raymond Mill
1.Tiny product size and even output granularity
2.Quick-wear parts with long working life
3.Long service life
4.Carefully design and elaborate to ensure a satisfied experience
Raymond Mill Usage and Application
Raymond mil is used to grind materials in the fields of building materials, mining, metallurgy and chemical industry. The materials must be non-flammable and non-explosive materials such as: limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate, manganese ore, iron ore, glass, ceram, active carbon, carbon black, fireproof materials, heat preservation materials, chemical materials and so on(300 kinds of materials). The materials should have the hardness less than 7 in Moh's scale and humidity less than 6 percent. The granularity of the end products can be adjusted from 30 to 325 meshes.
Rymond Mill Working Principle
After the materials enter the grinding chamber of the main frame, the grinding roller swings outward and presses closely upon the grinding ring due to the centrifugal force generated by the rotation of the main shaft. The blade carries materials to the space between the grinding roller and grinding ring, and materials are ground as the grinding roller rolls. After being ground, the powder is selected by classifier via the cycle wind of the blower and the rough powder will be back to the grinding chamber for regrinding. The qualified powder is brought into the powder collector together with airflow. The powder comes out as end products while the airflow goes back to the powder collector in cycling to make the machine work normally. The remained airflow comes out after purification by dust filter.
Raymond Mill Main Specifications
Model |
Grinding Roller |
Grinding Ring |
Feeding |
Output size (mm) |
Capacity |
Motor |
Overall |
|||
Numbers |
Diameter |
Height |
Outside |
Height |
||||||
3R1410 |
3 |
140 |
100 |
495 |
100 |
<8 |
0.613-0.044 |
0.15-1.2 |
14.1 |
3340*2200*3200 |
3R2115 |
3 |
210 |
150 |
726 |
150 |
<15 |
0.613-0.044 |
0.28-1.8 |
28.2 |
4480*3100*3970 |
3R2615 |
3 |
260 |
150 |
865 |
150 |
<15 |
0.613-0.044 |
0.35-2.8 |
35.7 |
5000*4100*4850 |
3R2715 |
3 |
270 |
150 |
884 |
150 |
<15 |
0.613-0.044 |
0.40-3.4 |
42.7 |
5050*4150*4900 |
3R3015 |
3 |
300 |
150 |
965 |
150 |
<15 |
0.613-0.044 |
0.45-3.7 |
55 |
5200*4200*4950 |
4R3016 |
4 |
300 |
160 |
990 |
160 |
<20 |
0.613-0.044 |
0.6-4.5 |
55 |
5250*5000*5500 |
4R3216 |
4 |
320 |
160 |
1073 |
160 |
<25 |
0.613-0.044 |
1.0-5.2 |
72.5 |
7700*7200*8800 |
5R4119 |
5 |
410 |
190 |
1400 |
190 |
<30 |
0.613-0.044 |
2.0-9.0 |
157.5 |
7900*8800*9650 |

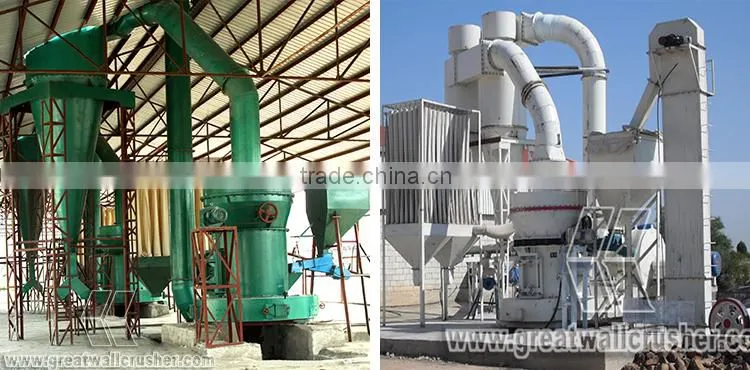

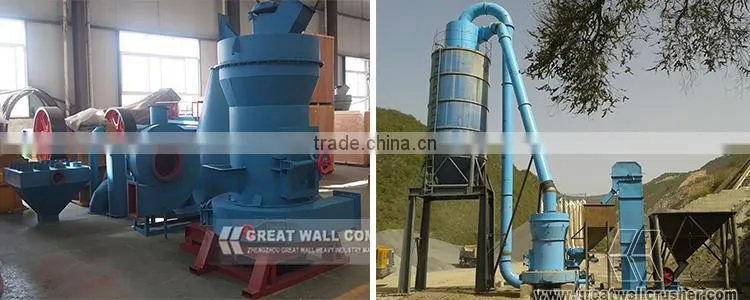

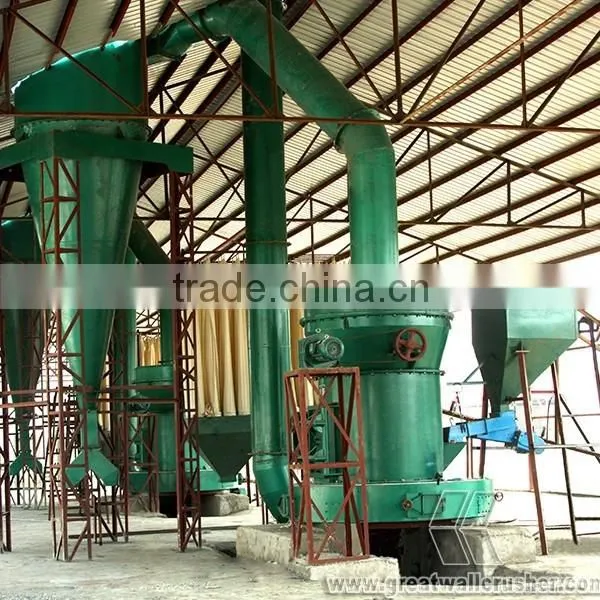

The following shows two Raymond mill production lines.
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
All the products of Great Wall Heavy Industry Company have approved ISO CE certificate.
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.
Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
A client called Alam enquiry to us via Alibaba about a marble mill. The main technical parameters as following:
Maximum feeding size: 15mm
Output size: 0.15mm
Capacity: 1t/h
According to his requirement, we recommend 3R2115 Raymond Mill. After communicating and negotiating, the client is satisfied with the quality of Raymond mill, price, payment term and delivery. Seven days later after deposit, the Raymond mill is well packaged to the port.
1. We are Manufacturer (Not Dealer):
All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.
2. If you are new for this business:
We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:
1. What is the raw material to be processed? And maximum feeding size of raw material?
2. What is the required output size after crushing?
3. How many tons per hour do you want?
Do not hesitate send us inquiry for more details about the impact crusher machine.
