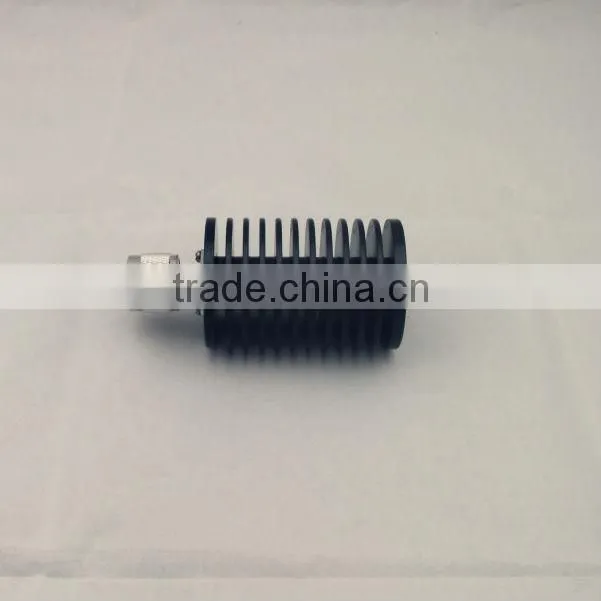

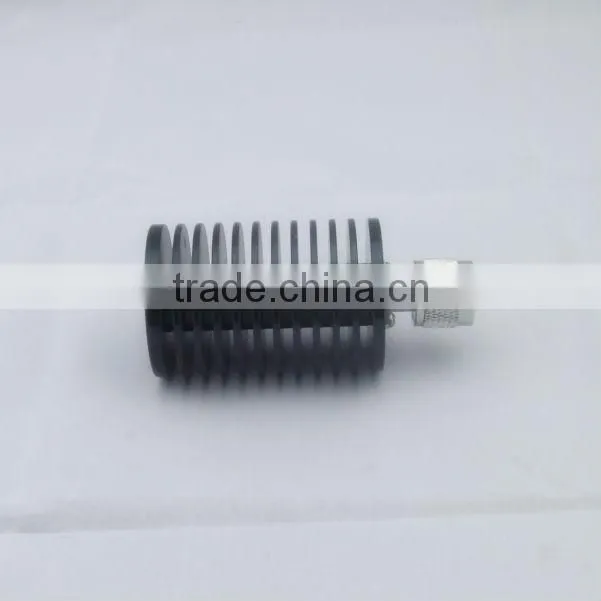

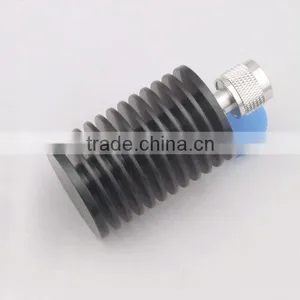

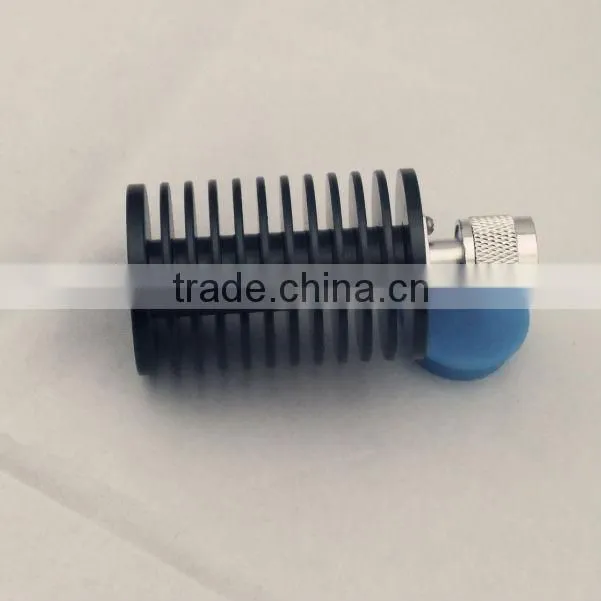

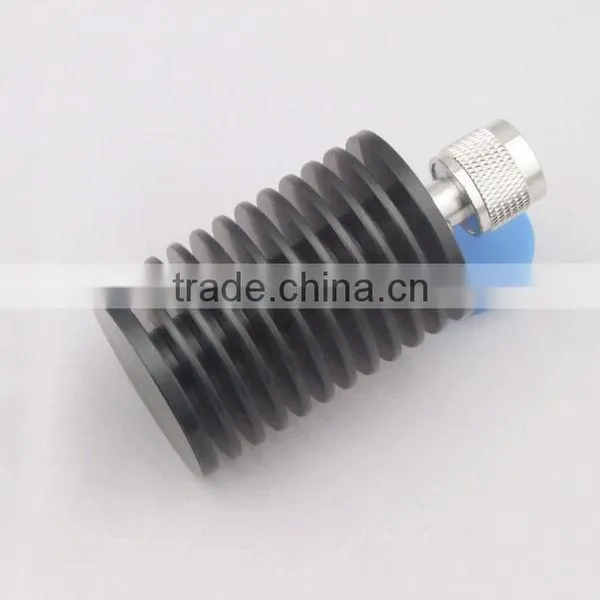

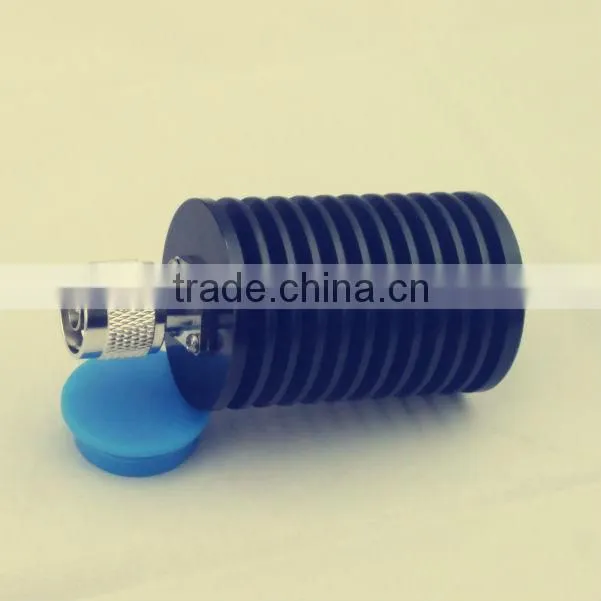

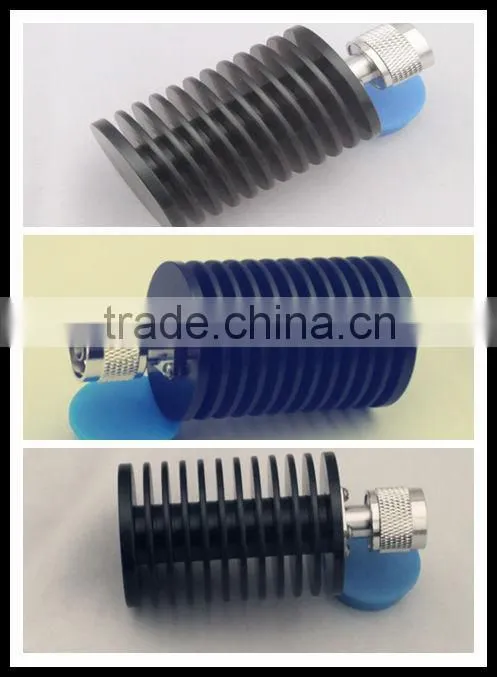

Help CenterCoaxial 20W RF Dummy Load/Termination Load
Related Products
-
DC-3G, RF 50w Dummy Load TerminationUS$ 1 - 50MOQ: 1 Piece -
100W RF Termination Load DC-3GUS$ 1 - 200MOQ: 1 Piece
-
DC-3G, 100 Watts RF Load TerminationUS$ 1 - 200MOQ: 1 Piece
-
DC-3000MHz, 100 Watts RF Power TerminatorUS$ 1 - 200MOQ: 1 Piece
-
DC-3000MHz, 100W RF Coaxial Termination LoadUS$ 1 - 200MOQ: 1 Piece
Specifications
1. We are Manufacturer of RFLoad2. OEM Service is available
3. 200pcs termination in stock
4. Best Price and Service
Note: Specifications can be changed according with customers' requirements.
Applications: 20W, DC-3000MHz,RF Dummy Load Termination (N-type or DIN-type)
1. 20W Coaxial Fixed Termination is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. 20W Termination is widely used in the IBS and BTS projects. All over the world, SETSAIL has sold most of the loads to ZTE and Huawei's oversea IBS contruction, especiall in Middle East and South American. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of this 20W Dummy Load is around 10,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2. 20W Coaxial Fixed Termination is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
3. 20W Coaixal Fixed Termination Load is just one of SETSAIL's RF Load Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
20W, DC-3000MHz,RF Dummy Load Termination (N-type or DIN-type)
Technical Specifications
Model: |
YFTX-TL-20-3G-N |
Frequency |
0-3GHz |
Power Capacity |
20W |
Return Loss |
20dB |
VSWR |
less than 1.20:1 |
Impedance |
50ohm |
Connector |
N-type or DIN-type |
Temperature |
-55deg to +125deg |
Weight |
0.165kg |
Note: Specifications can be changed according with customers' requirements.
