HK-1052 ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Spectrometer
Overview
HK-1052 ASTM D4294 X-ray Fluorescence Sulfur-in-Oil Spectrometer has been the overwhelming choice in the petroleum industry for years. Continuous improvements in performance and usability allow us to offer a better instrument to suit your requirements.
Our XRAY sulfur analyzers comply with ASTM D4294 standard Test Method for Sulfur in Petroleum and Petroleum Products by Energy-Dispersive X-ray Fluorescence Spectrometry,while offering the most cost effective alternative for sulfur in petroleum measurement.
Features

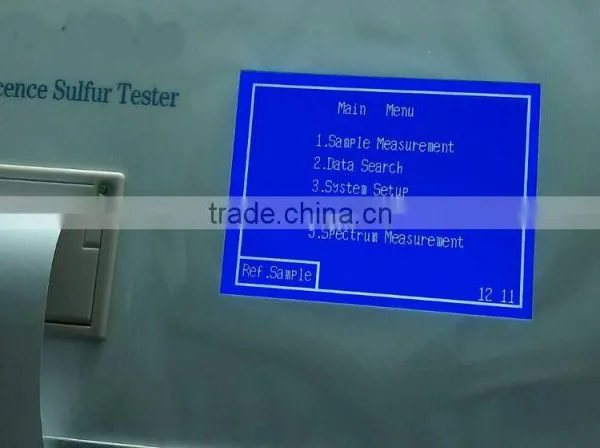

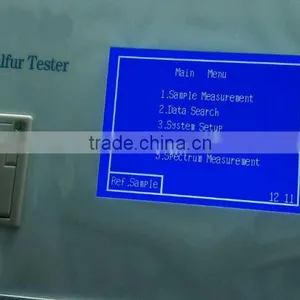

1.Our analyzer got electromechanical integration design of computerization, large screen LCD display, man-machine dialogue operation, concise and beautiful;
2. High measurement range, fast detection speed and small quantity sample consumption.
3. We adopt Fluorescence intensity ratio analysis method, can calibrate temperature, atmospheric pressure and carbon hydrogen ratio (C/H).
5. Using disposable sample cup, can avoid cross contamination; also user may record the sample batch number, S%(m/m) date;
6. Highly accurate sample platform location, it’s very easy to put or replace oil samples.
7. Big storage for at least 1000 test datas, user may check the content detection results and calibrated curve anytime.
8. We equip thermal printer for the analyzer.
9. The analyzer is equipped with standard RS-232C interface, can be connected to each PC.
Main Application
1. Our sulfur in oil analyzer can measure crude oil, heavy oil, diesel, kerosene, gasoline, naphtha and other kinds of petroleum products.
2. It can also test coal chemical products, for example, total sulfur content in primary benzene.
3. It can also test total sulfur or sulfide content in other liquid solid powder samples.
Technical Parameters
asuring range: 7ppm~5%;
2.Accuracy: a, repeatability (r):<0.02894(X+0.1691);b reproducibility (R):<0.1215(X+0.05555);
3.sample volume: 2~3ml(sample height 3mm~4mm);
asuring period: 60,120,240,300,600 seconds,Arbitrary set;
5.single sample auto test ,measured times: 2,3,5,10,50 Arbitrary set ,it can provide AVG and standard deviation at every end of measurement;
6. Calibrated curve: our analyzer can store 9 calibrated curves, five of linear line with one unknown; 4 of Binomial parabola
7.Working Condition: temperature:5~35℃;humidity:≤85%(30℃);power:AC220V±20V,50Hz;Power: 30W;
8.Dimension and Weight: 468mm×368mm×136mm;13kg
Included Accessories

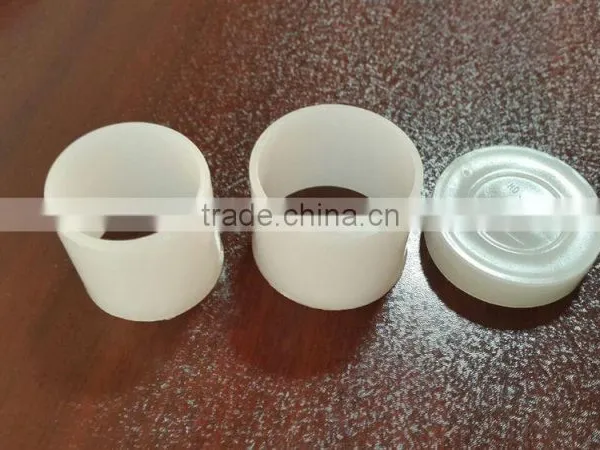

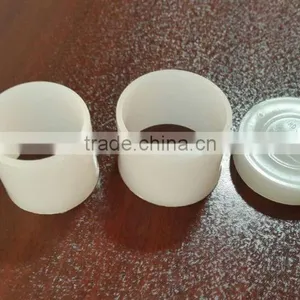

Sample cell (three parts): 200sets,
Sample cell film (6μm Mylar) 200pics
Leakage protection device (two parts)
Multifunctional pressure shaping device(two parts)
Dust shield of leakage protection device
Printing paper(57 mm in width: 30mm)
Calibration sample (10ml/piece)
Power supply wire (250V/6A) 1piece
3ml pipette 200 pieces
| X- RAY calibration sample | |
| light oil | heavy oil |
| 0ppm | 2ppm |
| 5ppm | 5ppm |
| 50ppm | 50ppm |
| 100ppm | 100ppm |
| 150ppm | 150ppm |
| 200ppm | 200ppm |
| 350ppm | 350ppm |
| 500ppm | 500ppm |
| 700ppm | 700ppm |
| 1000ppm | 1000ppm |
| 2000ppm | 2000ppm |
| 3000ppm | 3000ppm |
| 5000ppm | 0.50% |
| 10ml/piece | 0.70% |
| 1.00% | |
| 2.00% | |
| 3.00% | |
| 5.00% | |
| 10ml/piece | |
HK petroleum is a leading manufacturer of petroleum testing apparatus for laboratories in industries such as refinery, petrochemical, biofuels. Also we are manufacturer of ASTM thermometers, API hydrometers and glasswares. In fact, we are the only supplier who can provide both the main host and accessories in China. With almost 15 manufacturing experience, we have established a reputation for the supply of petroleum test instruments whose advanced capabilities, accuracy and reliability are a worldwide benchmark for many product quality measurements.
There are now over 100 quality control instruments in our product range. Our petroleum test instruments; including our flash point testers, oil test centrifuges and vapour pressure testers, provide innovative solutions to meet all customer demands.
Our quality control instruments are used for the measurement of Flash Point, vapor Pressure, Viscosity, Penetration, Contaminants and many other "quality" parameters.
1 How to deliver?
We can send by Express or by Air. Also we have best transportation solution for DHL, FEDEX, UPS,TNT faster and cheaper
2 What if it broken during transport?
Please do not worry, we do standard export package.
We have 12 months warranty, if it broken during transport, we can change a new one for you. If it is broken after 12 months, we can supply you a new one at a cost price.
1. Why choose us?
Low price:
We are end manufacturer instead of trader or dealer, saving a lot of medium cost, cutting the prices factually and saving money for customers.
High quality:
Our company focuses on product quality. We equip professional research and development team.
Good service:
We could provide product catalog and user manual to customer during inquiry stage. We will offer the installation and operation video, debug video and maintaining video to our customer before Ex-work. Following link is the video address which is for our previous customer: /watch?v=4CutklKG390
We offer fast delivery and secure packing. We provide one year guarantee and long term spare parts supply at cost price.
2. How can I choose the suitable one?
We design and manufacture our testers based on ASTM, IP, ISO standards, so user may tell the exact standard or test method to us, and then we can offer our solution.
3. How can I pay?
We accept many payment terms, such as T/T, L/C, Western Union, PayPal, and money gram and so on.
4. When I receive it after pay?
Normally, we have testers in our stock, if not, we can deliver within 5-7 days, please contact us to check transport time and charge to your address.
5. What should I do if I do not know how to use?
Please do not worry, manual user will be sent together, also we can offer Operation and installation video, you can also contact us with more technological support.
6. What should I do if some parts broken?
Please do not worry, we have 12 months warranty except accessories, you can also buy parts from us after 12months.
7. Can I order OEM/ ODM services?
YES, product can be customized.
8. What time can I contact?
We are available for 24&7. Contact phone number or email us if you need us.
