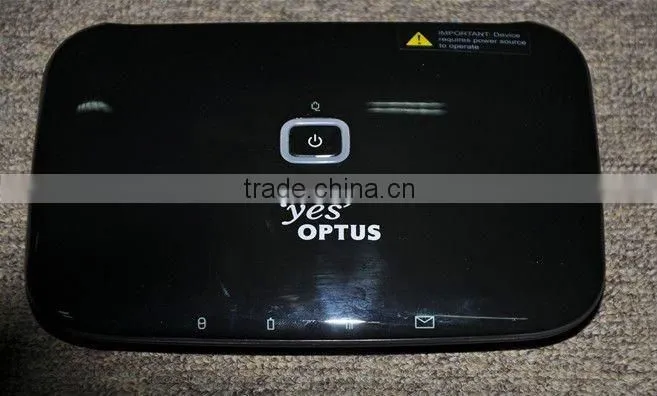

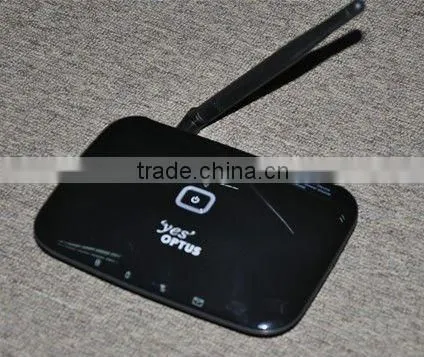

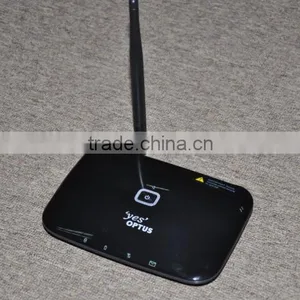

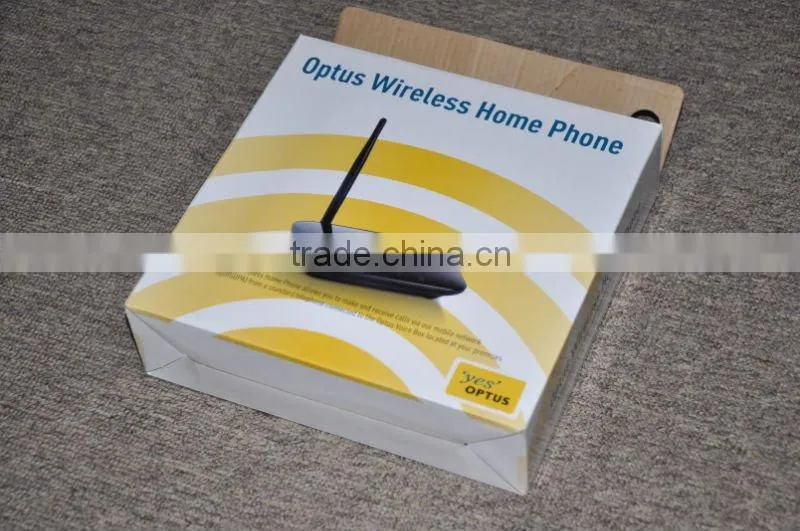

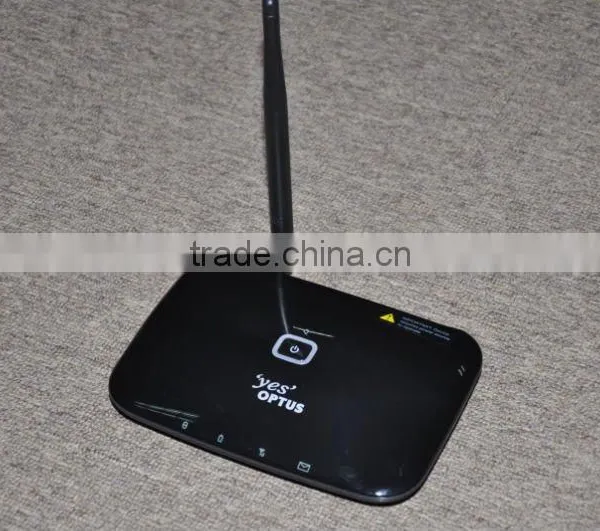

Help CenterHUAWEI ETS 1160 3G Fixed Wireless Terminal
Related Products
Brand:Huawei
Model no.: ETS1160
Product name: GSM Fixed Wireless Terminal
Frequencies: GSM850/1900Mhz 900/1800/2100Mhz GSM FWT/GSM fixed wireless terminal/GSM gateway
Features:
1) It is a 1 channel GSM Gateway which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module
5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set; gsm fwt/gateway8) Caller ID display;
6) DTMF/FSK Dialing;
7) Bell signal;
8) The RJ-11 socket which connect the phone or billing system for metering purpose;
9) Antenna socket (SMA);
10) IP Presetting;
11) Working status and Signal Strength by LED indicator;
12) back up Li-ion battery( Optional) 7.2V 1300mAh.standby 24hrs,talking time: 2.5hrs.
13) call forwarding.
14) voice mail
3,Technical Specifications
Air interface standard: GSM850/1900Mhz,900/1,800/2100Mhz full band
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU,US,AU,British can be optional
4,Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
5,Check Package:
GSM FWT 1 piece;
Ac-adapter 12V 1A: 1 piece,
GSM Antenna 1 piece,
User's Manual 1 piece,
G.W: 0.55kg per unit. And 20pcs per carton, 12.5kg per carton.
Gift carton Measurement: 55cmX34.5cmX32.5cm
