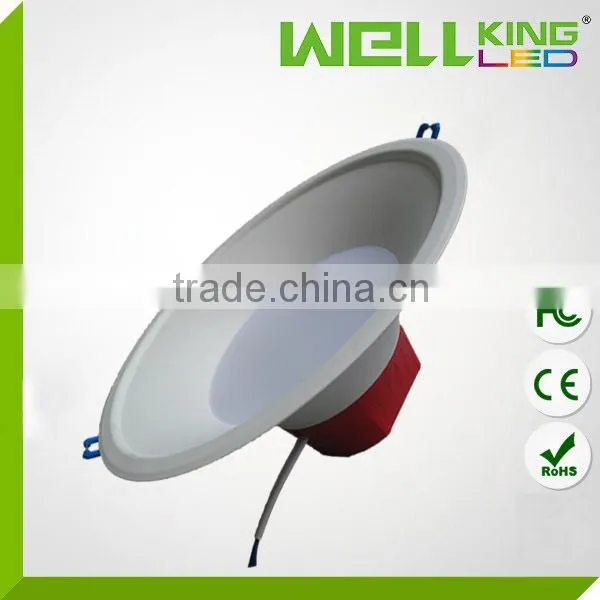

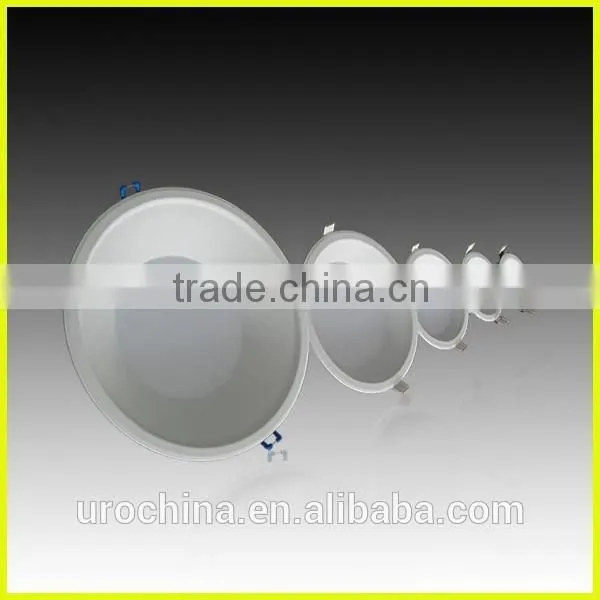

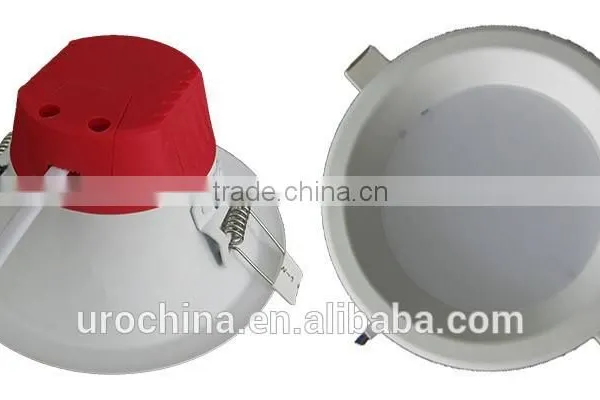

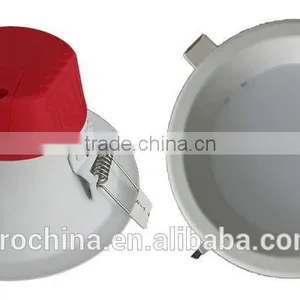

7w Intergration Led Surface Mounted Downlight 85mm
US$ 3 - 5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
high power LED
Warranty(Years):
2
Input Voltage(V):
AC100-240V/50-60HZ
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3Inch 7W Intergration Led Recessed Downlight 70mmUS$ 3 - 5MOQ: 50 Pieces -
3Inch 7W Intergration Recessed Led Downlight 230VUS$ 3 - 5MOQ: 50 Pieces
-
3Inch 7W Intergration Recessed Led Ceiling DownlightUS$ 3 - 5MOQ: 50 Pieces
-
10 w 2.5Inch Recessed Led Downlight SAMSUNG ChipUS$ 9 - 10MOQ: 10 Pieces
-
China Manufacturer 12w Led DownlightUS$ 2 - 10MOQ: 100 Perches
LED Light Source
high power LED
Warranty(Years)
2
Input Voltage(V)
AC100-240V/50-60HZ
Lamp Power(W)
7
Lamp Luminous Flux(lm)
560
Lamp Luminous Efficiency(lm/w)
80
Color Temperature(CCT)
Other, 2700-6500K/WW/DW/CW
Working Temperature(℃)
-20, +50
Working Lifetime(Hour)
30000
Lamp Body Material
Aluminum Alloy
IP Rating
Other, IP40
Certification
CCC, CE, EMC, LVD, PSE, SAA
Model Number
WK-DL-D28-7W
Place of Origin
Guangdong, China
Brand Name
WELLKING
7w intergration led surface mounted downlight 85mm
| Model#: | WK-DL-D28-7W |
| Light source | SMD5630 |
| Rated Power: | 7W |
| Input Voltage(V): | AC 100-240V 50/60 Hz |
| Product Size (Φ*H,mm): | Dia95*60mm |
| Hole cutting size: | 85mm |
| Lumens (lm): | 560lm±10% |
| Color Temp.(CCT): | 2700-6500K; |
| Beam Angle: | 120° |
| RA | >80 |
Packing details :
| Outer carton | 100 pcs/ctn |
| outer carton size | 520*520*300mm |
| Net weight/ctn | 11kg |
| Gross weight/ctn | 12kg |
Product Feature
- Quality high purity dia cast aluminium and pure aluminium heatsinker; 1W high power LED light source; High power factor import constant current led driver.
- Heatsinker and lamp shell integration design,LED and lamp shell is closely connected. the shell heatsink and air convection fully guarantee the lifespan of 30,000hrs of lamp.
- The shell is PMMA , good heat sink capacity. The lamp surface is processed with high temperature paint, gracious and top-grade appearance.
- Start with no delay, giving out normal brightness immediately when electricity turned on, no need wait, eliminating a long time start process of the traditional lamp.
- Efficiency is up to 90 Lm/W,wide color temperature range, high CRI is available ,CRI> 80.
- Anti radio wave, meet CE approval.
- Lamp shell with low thermal resistance and high thermal conductivity material, die-cast aluminum alloy , good eat transfer, excellent heat dissipation, etc.
- Shell color available: pure white The lamp body is processed with high temperature baking treatment.
- Wide Work Voltage range, global use, AC100-240V full range, constant current ensure life and brightness from voltage fluctuations.
- Eco-green, no lead, mercury, no hazard to environment, pass ROHS approval.
Application
Replace traditional energy-saving lamps, more energy-saving.
Applied for factory, publich place lighting.
Widely used in shopping mall, Corridor, office and homes and other large indoor places.
Other places that need energy-saving and high IP rank.
Our Services
1.Your inquiry will be replied within 24hours, except the holidays;
2. Customized design is available,OEM and ODM are welcome;
3.Deliver the goods to our customer all over the world with speed and precision.
4. 7 days of replacement period for free if any quality problem happened.
5. 2 years warranty period; very low cost for repairing.
