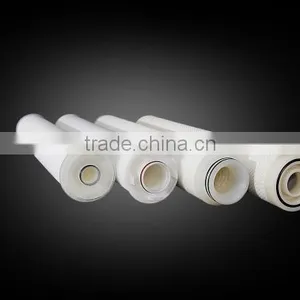

pp Water Treatment Oil Filter Cartridge in Water Filters thumbnail-4

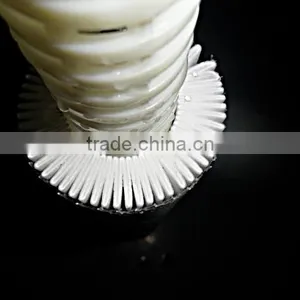

pp Water Treatment Oil Filter Cartridge in Water Filters thumbnail-5
pp Water Treatment Oil Filter Cartridge in Water Filters photo-1

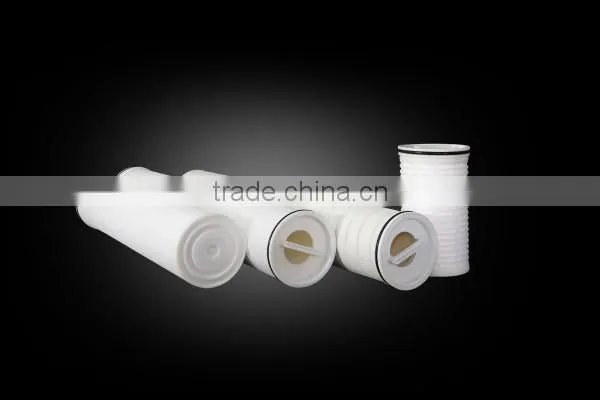

pp Water Treatment Oil Filter Cartridge in Water Filters photo-2

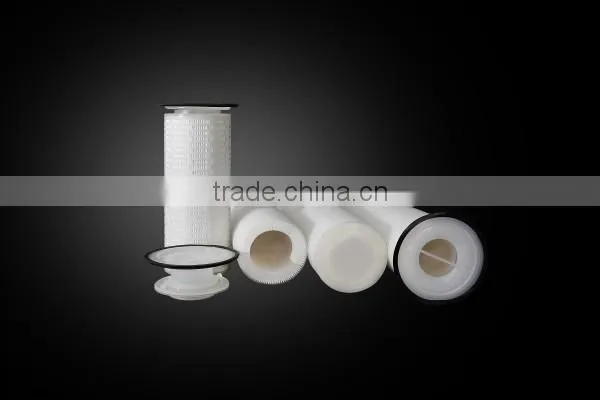

pp Water Treatment Oil Filter Cartridge in Water Filters photo-3

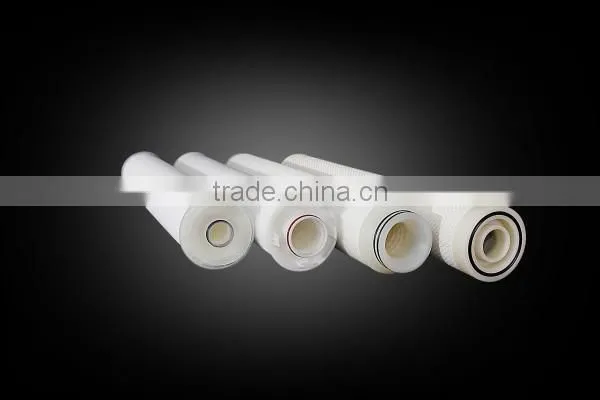

pp Water Treatment Oil Filter Cartridge in Water Filters photo-4

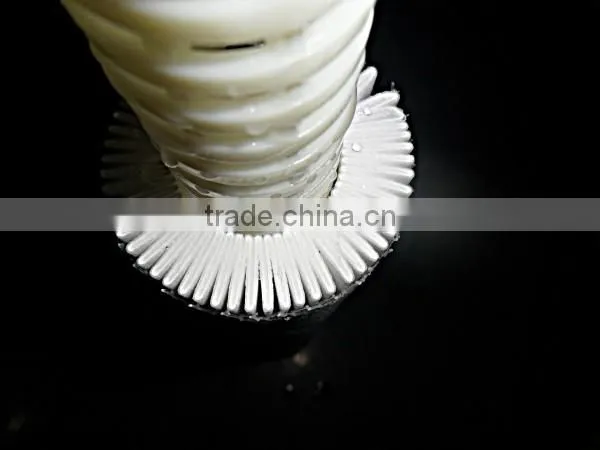

pp Water Treatment Oil Filter Cartridge in Water Filters photo-5
US$ 1 - 3 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
OEM
Model Number:
pp pleated
Contact Supplier Request Quote Chat Now
Wuhu Huamo Environmental Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name OEM
Model Number pp pleated

pp water treatment oil filter cartridge in water filters
1.Filter Media:PP,PET,Glass Fiber
2.OD:64mm
3.ID:28mm



pp water treatment oil filter cartridge in water filters

-Chemical
--Oil & Gas Ind
--Metal Treatment
--Process Water
--Electronis
--Coatings, Paint
--Petroleum
--Prefiltration





FEATURE:

-Large filter area and depth filtration provides a long lifetime of pleated filter cartridge.
--Low cost because of large filter area and reduces labor costs to change
--The Absolute glass fiber media supplies optimal eddiciency of solids removal.





SPECIFICATIONS:



Outside Diameter: 64mm
Inside Diameter :

28mm

Length :

10",20",30",40"
Filter Media : PP , PTE,Glass Fiber
End Cap Material,Center Core :   PP
Out cage  PP
Seal Material :  Silicone, EPDM, NBR, Viton
End Cap Types :

DOE,-226/Flat End
Removal Rating :

1μm,2μm,5μm,10μm,20μm,50μm
Operating Pressure and temperature :

The pleated cartridge construction will withstand differential

Pressures up to 60 PSI(4Bar) at ambient temperature.
The optimum changeout differential pressure is 35psi(2.5Bar) up to 52°C.

Service condition :

  500KPa(5Bar)by 20°C
  300KPa(3Bar)by 65°C

Beta: 5000(99.98% removal efficiency) for glass fiber media.
Construction: Fully thermal welded.

pp water treatment oil filter cartridge in water filters
