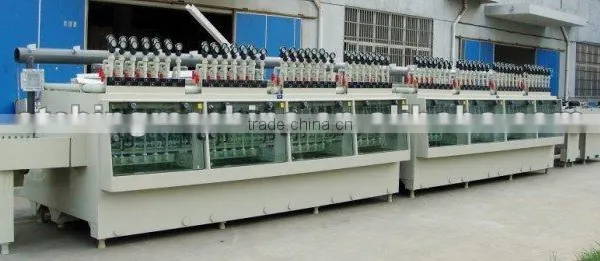

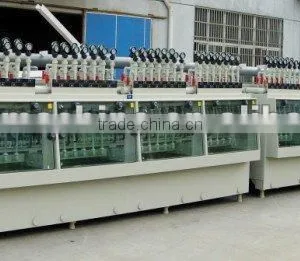

TY- Eight-meter Etching Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tian Yi
Model Number:
TY-EM-01
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Tian Yi
Model Number
TY-EM-01
Specifications
1.used for the process of double-sided, multilayer lead and tin plate batch etching2.obtain higher accuracy of circuit graphic
Etching Machine
Process Flow:
Feeding → Four-meter etching 1 → Four-meter etching 2 → Chemical washing → Recycle water washing → Running water washing → Blot up→ Discharge
Application:
Mainly used for the process of double-sided, multilayer lead and tin plate batch etching, which can obtain higher accuracy of circuit graphics.
Main technical parameter:
1 |
Size of Machine |
L12300*W2000*H1980mm |
2 |
Working Height |
900mm |
3 |
Working Width |
640mm |
4 |
Wheelbase |
35mm |
5 |
Running Speed |
0.5-5m/min |
6 |
Power voltage |
Three-Phase Four-Wire 380 V 50 HZ |
7 |
Total power |
75KW |
8 |
Size of minimal board |
80*60mm |
9 |
Thickness of outputting board |
0.1-3.2mm |
10 |
Running water consuming |
8-12L/min |
