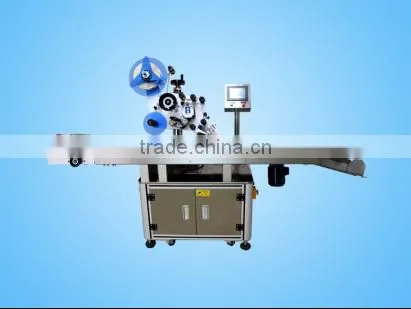

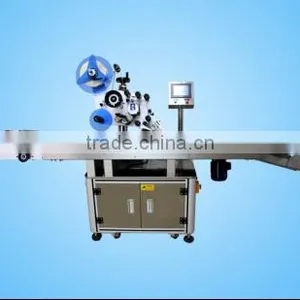

Automatic card labeling machine
Basic using
Special using in various kind of card and cover film on plastic sheet, high accurate, no air bubble; With the function of automatic recognition of product, select label head against different product, can be used match all kinds of packing line.
Product Feature
--Sub-card steadily, part card adopt advantaged sorting and opposite direction wheel technology, efficiency more high than other general cub card machine.
--High speed, For supervision code of medicine box, stable speed could be more than 200pcs/min.
--Widely using scope, can meet requirement of various kind of card, sheet, using on labeling for non-fold carton;
--Labeling accurate and steady, the roll wheel presses top of the label on product, conveyor smoothly and even, to sure the labeling accurate.
--Perfect design for the adjustable parts of equipment and the label splitting, labeling position adjust slightly select 6 kind degree of freedom, can sure the change of different product and label splitting be easy, and save time.
--Intelligent control,Automatic photoelectric tracing, no label for when product didn’t come, automatic correct, automatic testing, can avoid leaking and wasting.
--High stability,Panasonic PLC + KUNLUN TONGTAI Screen + Panasonic needle electronic eye + Leuze label testing electronic eye as the high grade electronic control, support equipment working at 7*24hours;
Configuration specification
Electrical equipment |
Quty. |
Brand/remark |
Electrical equipment |
Quty. |
Brand/remark |
Stepper motor |
1set |
YAKO/Leadshine |
Labeling electric eye |
1set |
Leuze/DataSensor |
Above motor driver |
1set |
YAKO/Leadshine |
EUT electric eye |
1set |
Panasonic/Riko |
Conveyor motor |
1set |
Wanshsin/OPG/JSCC |
PLC programable controller |
1set |
Panasonic |
Above motor driver |
1set |
Wanshsin/OPG/JSCC |
screen |
1set |
Kunlun tongtai |
Labeling speed |
50-200p/min |
||||
Labeling accurate |
±1mm |
||||
Product scope |
L*W*H: 40mm~280mm *40mm~200mm *0.2mm~2mm |
||||
Label scope |
Width20-150mm,Length6-150mm |
||||
Voltage |
220V |
||||
Equipment measurement |
L*W*H:2200×700×1400 |
||||
video link : /watch?v=BHzT7LLs-iw
welcome to contact with us if have any questions .
