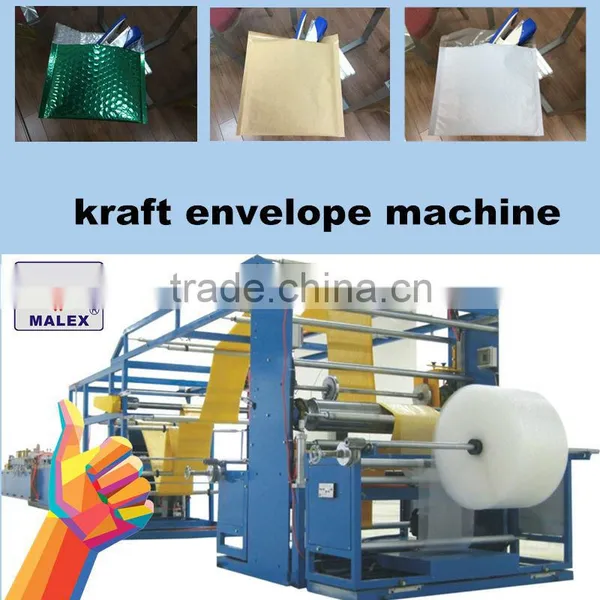

craft paper bubble envelope machine made in China
Kraft Bubble Envelope Making Machine,
model MXEV600, the min specification is 100*100mm, the max one is 600*600mm, the size of the edge is 40~50mm, the output is 30~80pcs/min.
This machine adopts servodrive, controlled by mini computer, displayed by LCD and set by touchable data. The operation is very easy and the bag making is accurate. The biggest feature is that the running speed is twice than other domestic machines, the output is increased greatly.
Features:
1. To produce double-side sealing kraft bubble envelope bag;
2. Drove by servo motor drive, controlled by computer, displayed by LCD and set by touchable data.
3. With high efficiency of bag making, nice and accurate sealing;
Main technical data
1) Material appliedl: Kraft paper, air bubble film, adhesive tape.
2) Envelope type: Double-side sealing
3) Output capacity: 30~80pcs/min.
4) Min size of envelope: 100*100mm
5) Max size of envelope: 600*600mm.
6) Material: Kraft paper, air bubble film, self-sticky tape;
7) Total power: 28kW
8) Consumption power: 8~12kW
9) Voltage: 380 V, 50 Hz / 3 Phase
10) Machine dimension: L : 18m, W : 2m, H : 2.8m.
11) Total weight: 4600kg
Parts of the machine
unwinding part for the kraft paper unwinding part for the air bubble film
heat laminating part forming part
folding part
heat sealing and cutting part tape stick part
the finished products the machine can also fold aluminum envelope
2)wrap the whole machine by air bubble film
Delivery condition of bubble envelope making machine
within 30 days after receiving the bank slip of deposit
