Specifications
testing handheld ODTR1.1310/1550 dual-wavelength testing
2.Visible light source
3.Easy to operate
4.manufacturer in china

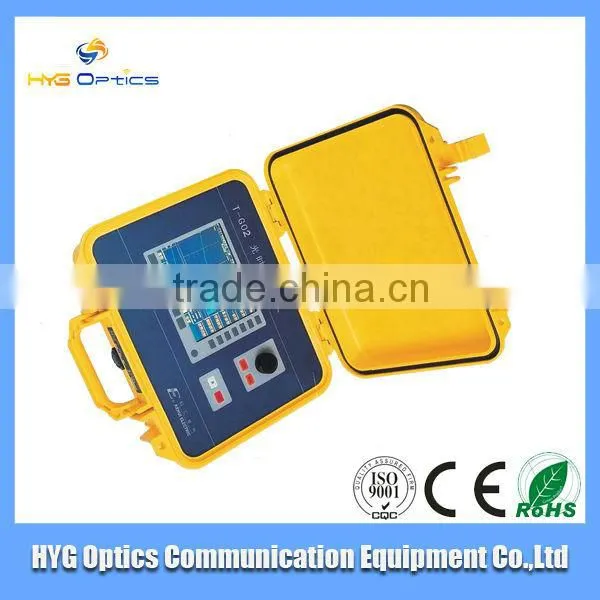

handheld SM ODTR Optical Time Domain Reflector for fiber testing
HYG2405series of handheld Optical Time Domain Reflector (OTDR) is a high performance, cost-effective optical network analysis tester, with the feature of lightweight, easy to use,high intelligence and having a hotkey for automatic rapid testing.HYG2405Series handhold OTDR is small, powerful and portable. It is battery powered. 3.5 Inch TFT-LCD can meet the needs of high luminance environment and night. HYG 2405OTDR has simple and friendly graphical user interface. Touch screen panel and keyboard button can meet different operator’s habits
[Main Feature]
u 1310/1550 dual-wavelength testing;
u Visible light source, facilitate to inspect fiber break;
u Complete PC analysis software for you to quickly and
efficiently generate a professional OTDR reports;
u Easy to operate, both the touch-screen panel and keyboard
button can completely operate the equipment, meeting different
operator’s habits;
u All important tests can provide a hotkey to operate automatically,
to ensure higher test efficiency;
u 3.5-inch TFT LCD with brightness adjustment support, suit
for high luminance environment and night;
u With auto-sleep function to save power;
u NI-MH battery-powered, low-voltage protection, continuous working time up to 8 hours;
u Hardware power switch, thorough stop electrical energy loss, ensures the battery can work longer;
u Determine fiber optic cable or fiber optic’s failure point, connection point, breakpoint position
u Describe fiber optic cable or fiber’s loss distribution curve, measure cable, fiber’s length and the loss, attenuation coefficient between two points
u Measure fiber optic cable, optical fiber connector’s insertion loss
u Measure fiber optic cable, optical fiber’s reflection loss;
[Applications]
u Fiber production and research devices
u Fiber Network Testing and Maintenance
u Optical Communication Teaching and Test
[Technical Specification]
u Source Type: LD
u Connector Type: FC (SC, LC)
u Wavelength: 1310nm 1550nm
u Fiber type: Single-mode
u Weaken Blind spot :15m
u Event Blind spot : 8m
u Dynamic Range : 26dB
u Maximum test distance : 80Km
u Data storage capacity : 180 test curve
u Size: 220mm×110mm×70mm
