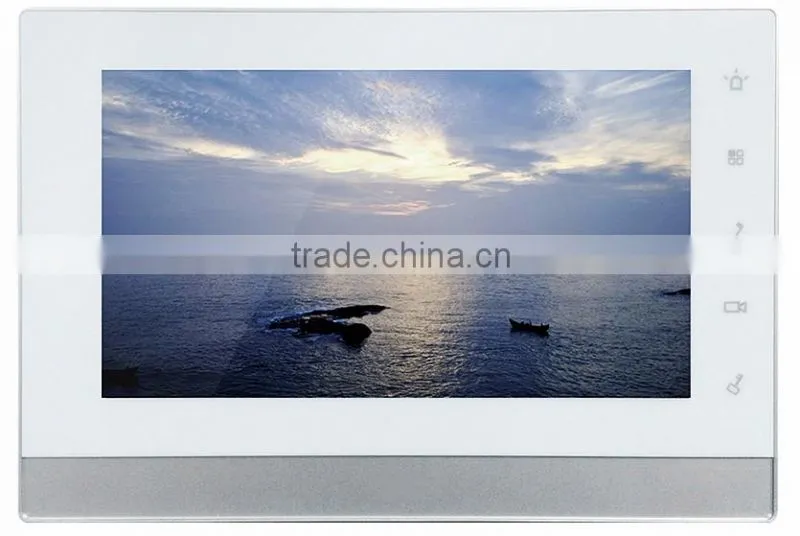

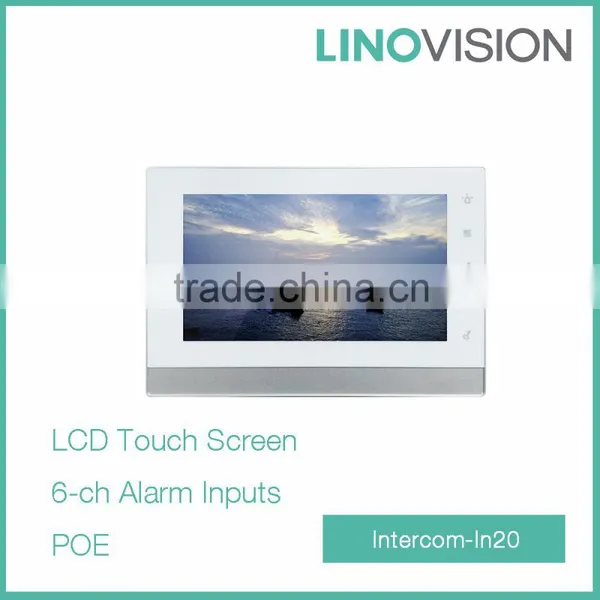

> Built-in Color 7-inch TFT LCD, Capacitive touch screen resolution 800×480
> Support 6 channels wire alarm input
> Support several indoor monitors and working together (set one master and others slave)
> Call among indoor monitors
> 1 channel 10/100Mbps self-adaptive Ethernet
> Support IP cameras live view
> Support Propriety POE power supply
> Support SD card local recording
> Surface mount.
Model |
Intercom-In20 |
System | |
Main Processor |
Built-in microcontroller |
Operation System |
Embedded LINUX operating system |
Video | |
compression |
H.264 |
Resolution |
800*480 |
Audio | |
Audio Input |
All-direction microphone |
Audio Output |
Embedded loudspeaker |
Bidirectional Talk |
Support bidirectional talk |
Display | |
Screen |
Color 7-inch TFT LCD, touch screen |
Operating modes |
Mechanical keys (emergency, protection, video talk, monitoring, unlock ); |
Alarm | |
Alarm input |
Support 6 channels input |
Alarm output |
Support 1 channel output |
Network | |
Ethernet |
10 M / 100 Mbps adaptive |
network protocol |
TCP/IP |
General | |
Power |
DC 10~15V or supply directly by Special switching power |
Power Consumption |
Standby ≤1.5W, work≤7W |
Work Temperature |
-1 °C to +60 °C |
Humidity: |
10~90%RH |
Dimensions |
200mm×126mm×22mm(L*W*T); |
Weight |
0.8Kg |
For New Installations
Recommended Models
| Picture | Model | Description |
|
Intercom-In20 |
|
|
Intercom-Out10B/W |
|
|
Intercom-Out20 |
|
|
Intercom-NS1060A |
|
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider!
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestones

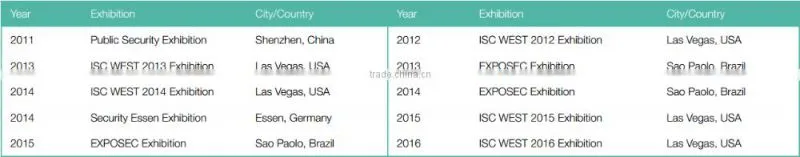

| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company. We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
