2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera

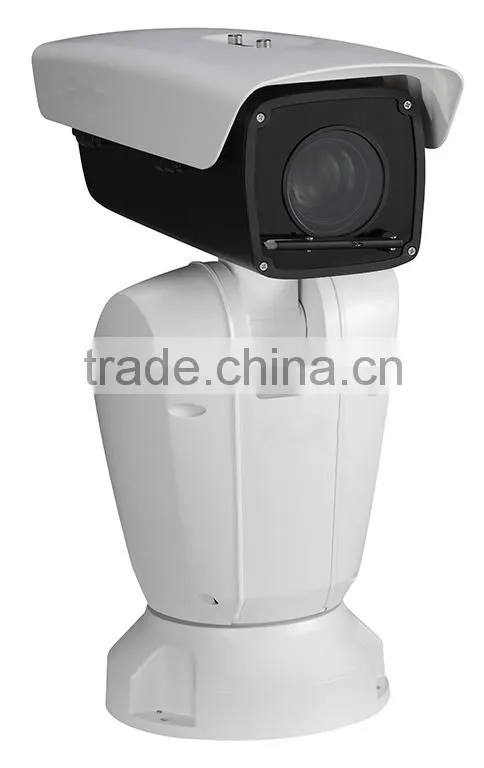

2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera photo-1
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera photo-2

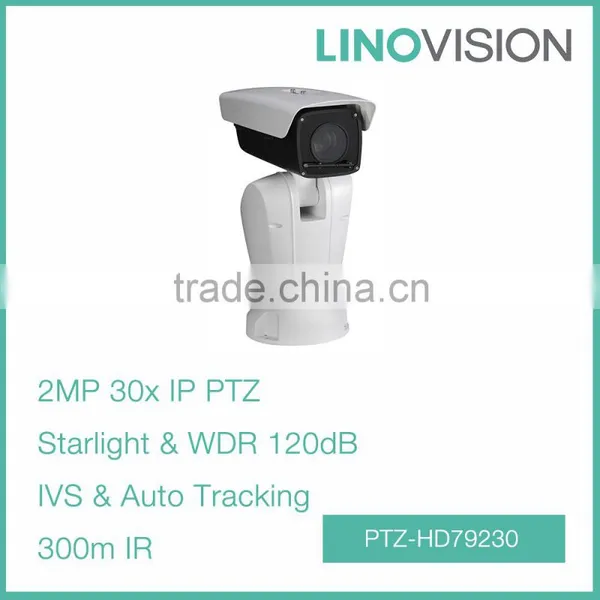

2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera photo-3
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera photo-4
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera photo-5
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera photo-6
US$ 1,170 - 1,350 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Linovision/No name/OEM
Model Number:
PTZ-HD79230
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Linovision/No name/OEM
Model Number PTZ-HD79230
Type Other, PTZ Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof



Key Features

                                                       2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera



>Powerful 30x optical zoom
>Star light camera, excellent low-light performance
>Support Triple-stream encoding
>Max 60fps@720P and 30fps@1080P resolution
>Defog, Wiper, Ultra DNR, Ultra low bitrate, EIS, ROI, Day/Night(ICR), Auto iris,
>Auto focus
>120dB WDR
>Support Auto tracking and IVS
>Pan range: 360° endless, speed up to 160°/s
>Up to 300 Presets, 8 Tour, 5 Pattern, 5 Auto scan
>Support intelligent 3D positioning
>IR Distance up to 300m, IP66
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS



Technical Datasheet

Model

PTZ-HD79230

Camera

Image Sensor

1/1.9" Exmor CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux at F1.5, B/W: 0.0001Lux at F1.5, 0Lux (IR on)

S/N Ratio

More than 55dB

Video Output

BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR(120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Defog

On / Off

ROI

Support

Wiper

Support

Lens

Focal Length

6mm ~ 180mm (30x Optical zoom)

Max Aperture

F1.5 ~ F4.3

Focus Control

Auto / Manual

Angle of View

H: 61.2° ~ 2.32°

Close Focus Distance

100mm ~ 1500mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -90° ~ 45°

Manual Control Speed

Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /s

Preset

300

PTZ Mode

5 Pattern, 8 Tour, 5 Auto Pan, 5 Auto Scan

Positioning Accuracy

±0.1°

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period

Time Task

Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

Protocol

DH-SD, Pelco-P/D (Auto recognition)

IR Distance

300m

Video

Compression

H.264 / MJPEG

Resolution

1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF
(352×288/352×240)

Frame Rate

Main Stream

1080P (1 ~ 25/30fps) / 720P(1~50/60fps)

Sub Stream1

D1/CIF(1 ~ 25/30fps)

Sub Stream2

720P/D1/CIF(1 ~ 25/30fps)

Bit Rate

H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

Compression

G.711a / G.711u(32kbps)/ PCM(128kbps)

Interface

1/1 channel In/Out

Intelligent Function

Auto Tracking

Single-scene, multiple-scene, panorama-scene

IVS

Tripwire, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.

Tracking Trigger Mode

Manual / Auto (alarm triggered)

Tracking Trigger Event

Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Compatibility

ONVIF PSIA CGI

Max. User Access

20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

Micro SD, Max 64GB

RS485

1 port

Alarm

7/2 channel In/Out

General

Power Supply

AC 24V/5A

Power Consumption

70W/90W(Laser /heater on)

Working Environment

-40ºC ~ 70ºC / Less than 95% RH

Ingress Protection

IP66, All-metal aluminum alloy, 6000V anti-lightning surge

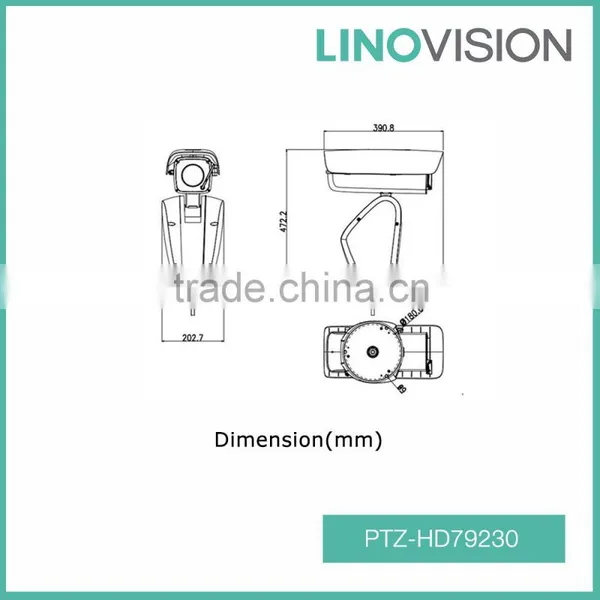

Dimensions

202.7mm×390.8mm×472.2mm

Weight

10.5Kg

Product Details
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera
2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera

Company Profile

Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.



We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.



Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.



Our Mission: To be a global leading integrated video surveillance solutions provider.

2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera

Our Advantage

  • Consulting and Systems designing
  • Product qualification and recommendation
  • Project Integration service
  • End to End & One stop sourcing
  • Help to make website and marketing material
  • OEM hardware/software design for specific needs
  • Life cycle support
  • Regularly training and knowledge updates



Our Milestone



2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera



Exhibitions

2MP IR Positioning System Full HD 30x Network Auto Track High-Speed Dome Camera



Year Exhibition Name Address Year Exhibition Name Address
 2011  Public Security Exhibition  Shenzhen, China  2012  ISC WEST 2012 Exhibition  Las Vegas, USA
 2013  ISC WEST 2013 Exhibition  Las Vegas, USA  2013  EXPOSEC Exhibition  Sao Paolo, Brazil
 2014  ISC WEST 2014 Exhibition  Las Vegas, USA  2014  EXPOSEC Exhibition  Sao Paolo, Brazil
 2014  Security Essen Exhibition  Essen, Germany  2015  ISC WEST 2015 Exhibition  Las Vegas, USA
 2015  EXPOSEC Exhibition  Sao Paolo, Brazil  2016  ISC WEST 2016 Exhibition  Las Vegas, USA



FAQ



Q. May I print our company logo on camera and NVR?

A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.

Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.

Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.

Q.What is Minimum Order Quantity?

A: Sample order is welcome, but the price is depend on the quantity.



Q: How to ship the goods?

A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
