Model

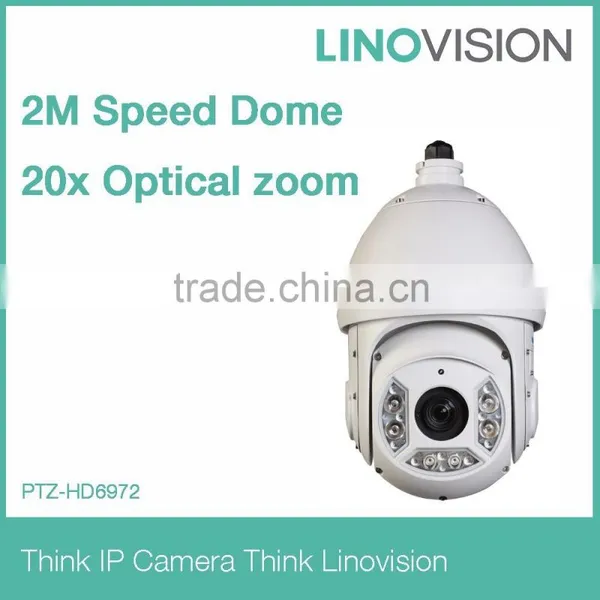

PTZ-HD6972: 2MP CMOS PTZ Dome, 25/30fps@1080P(1920x1080), 20x optical zoom, 4.7-94mm lens, Support DWDR, ICR Day/Night, IP66
Feature
> 20x optical zoom
> H.264 & MJPEG dual-stream encoding
> Max. 25/30fps@1080P(1920x1080) & 720P resolution
> DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
> Max 240°/s pan speed, 360° endless pan rotation
> Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 2/1 alarm in/out
> Support intelligent 3D positioning with DH-SD protocol
> Micro SD memory, IP66
> IR Distance up to 100m
> Free CMS, free mobile phone APPs
Specification
Model |
PTZ-HD6972 |
|
Camera | ||
Image Sensor |
1/2.8” Exmor CMOS |
|
Effective Pixels |
1920(H) x 1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Min. Illumination |
Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4 |
|
S/N Ratio |
More than 50dB |
|
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
|
Camera Features | ||
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC / DWDR (Digital WDR) |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Privacy Masking |
Up to 24 areas |
|
Digital Zoom |
16x |
|
Lens | ||
Focal Length |
4.7mm~94mm(20x Optical zoom) |
|
Max Aperture |
F1.4 ~ F2.6 |
|
Focus Control |
Auto / Manual |
|
Angle of View |
H: 54.1° ~ 3.2° |
|
Close Focus Distance |
100mm~ 1000mm |
|
PTZ | ||
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
|
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
|
Preset |
80(DH-SD), 255(Pelco-P/D) |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
Speed Setup |
Human-oriented focal length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
IR Distance |
100m (2 near IR LED+ 4 far IR LED) |
|
Video | ||
Compression |
H.264 / MJPEG |
|
Resolution |
1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 25/30fps) |
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
|
Audio | ||
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
|
Interface |
1/1 channel In/Out |
|
Network | ||
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
ONVIF |
ONVIF Profile S |
|
Max. User Access |
20 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface | ||
Memory Slot |
Micro SD, Max 64GB |
|
RS485 |
1 |
|
Alarm |
2/1 channel In/Out |
|
General | ||
Power Supply |
AC 24V/2.2A (±10%) |
|
Power Consumption |
10.5W, 26W (IR on, Heater on) |
|
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Dimensions |
Φ204.7(mm) x 359.9(mm) |
|
Weight |
7.8kg |
|
Dimension (mm)
WEB, Mobile App and CMS:
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
Think IP camera, think Linovision.
In the last 8 years, we are proud of designing and manufacturing a complete line of IP cameras, as well as DVRs, NVRs, IP Speed Domes, PC based DVRs, management software, PoE switches, etc.
With headquarters in the city of Hangzhou (China), we are working closely with several world-leading manufacturers here, like Hikvision, Dahua, etc.
Our Core Competence includes:
- Excellent product quality as you can expect from other big brands;
- Capable of hardware/software customization according to your specific requirements;
- Faster response and speed delivery;
- We insist on win-win cooperation, most of our partners are growing together with us in the last 5 years.
