Model

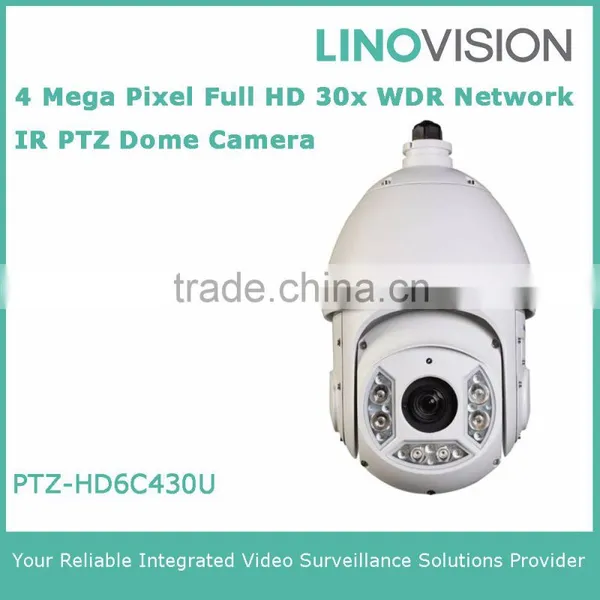

PTZ-HD6C430U: 4mp Full HD 30x WDR IR PTZ Dome IP Camera , 25/30fps@4M(2592×1520), 4.5mm ~ 135.0mm (30x Optical zoom), WDR, IP66, IR Distance up to 100m;
Feature
>4 Mega pixel Real Time Professional IR PTZ Camera
>30x optical zoom
>Latest Compression H.265 Supported
>Support Multiple Video Compression H.265 / H.264 / H.264H / MJPEG
>Support Triple-stream encoding
>Multiple Independent Full HD 1080p Streams
>60fps @ Full HD Resolution (1920x1080)
>25/30fps@4M(2592×1520),50/60fps@3M/1080P resolution
>120dB WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>240°/s pan speed, 360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out, Support intelligent 3D positioning
>Micro SD memory for local recording, IP66 Weather Proof
>IR Distance up to 100m
Specification
Model |
PTZ-HD6C430U |
Camera | |
Image Sensor |
4MP Sensor |
Effective Pixels |
2688(H) x 1520(V) |
Scanning System |
Progressive |
Electronic Shutter Speed |
1/1 ~ 1/30,000s selectable |
Min. Illumination |
Color: 0.05Lux; B/W: 0.005Lux; 0Lux (IR On) |
S/N Ratio |
More than 50dB |
Video Output |
BNC(1.0Vp-p/75Ω), PAL / NTSC |
Camera Features | |
Day/Night |
Auto(ICR) / Color / B/W |
WDR |
Dual Shutter 120dB |
Backlight Compensation |
BLC / HLC / WDR (120dB) |
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
Gain Control |
Auto / Manual |
Image Enhancement |
Brightness, Contrast, Sharpness, Compression, BLC, Mirroring, WDR, |
Noise Reduction |
Ultra DNR (2D/3D) |
Privacy Masking |
Up to 24 areas |
Digital Zoom |
16x |
Lens | |
Focal Length |
4.5mm ~ 135.0mm (30x Optical zoom) |
Max Aperture |
F1.6 ~ F4.4 |
Focus Control |
Auto / Manual |
Angle of View |
H: 60° ~ 2.40° |
Close Focus Distance |
100mm~ 1500mm |
PTZ | |
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: 180° auto flip |
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
Preset |
300 |
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
Speed Setup |
Human-oriented focal length/ speed adaptation |
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
Idle Motion |
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
Time Task |
Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
IR Distance |
100 Meters (2 near IR LED+ 4 far IR LED) |
IR Wavelength |
850 nm |
Video | |
Compression |
H.265 /H.264 /H.264H/ MJPEG |
Resolution |
4M(2592×1520)/3M(2304×1296)/1080P(1920×1080) / |
No. of Streams |
3 Independent Streams, Multiple real time 30fps 1080p Streams |
Frame Rate |
4M/3M(25/30fps)/1080P(50/60fps) |
Bit Rate |
All Streams: Controllable Frame rate and Bandwidth CBR/VBR |
Audio | |
Compression |
G.711a / G.711u(32kbps)/ PCM(128kbps) |
Interface |
1/1 channel In/Out |
Intelligent Function | |
IVS |
Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection |
Face Detection |
Support |
Alarm Trigger |
IVS Functions, Intelligent Video, Face Detect, Periodical Timer, Ping |
Alarm Event |
Intelligent IVS Events, Face Detection, FTP/SD Card/NAS Upload, |
Network | |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
Compatibility |
ONVIF PSIA CGI |
Max. User Access |
20 users |
Smart Phone |
iPhone, iPad, Android, Windows Phone |
Web Browser |
Microsoft IE, Google Chrome, Mozilla Firefox, Opera |
Auxiliary Interface | |
Memory Slot |
Micro SD/SDHC Card, 64GB |
RS485 |
1 |
Alarm |
2/1 channel In/Out |
General | |
Power Supply |
AC 24V/3A, DC 24V (±10%) |
Power Consumption |
10.5W, 26W (IR on, Heater on) |
Working Environment |
-40ºC ~ 60ºC / Less than 90% RH |
Ingress Protection |
Metal (Aluminum), IP66 Weather Proof / Vandal Proof |
Dimensions |
Φ204.7(mm) x 359.9(mm) |
Weight |
7.8kg |
Approvals |
FCC Part 15 subpart B, CE EN55022 Class A, EN55024, UL, ROHS, LVD |
