Stone coated metal roofing production line

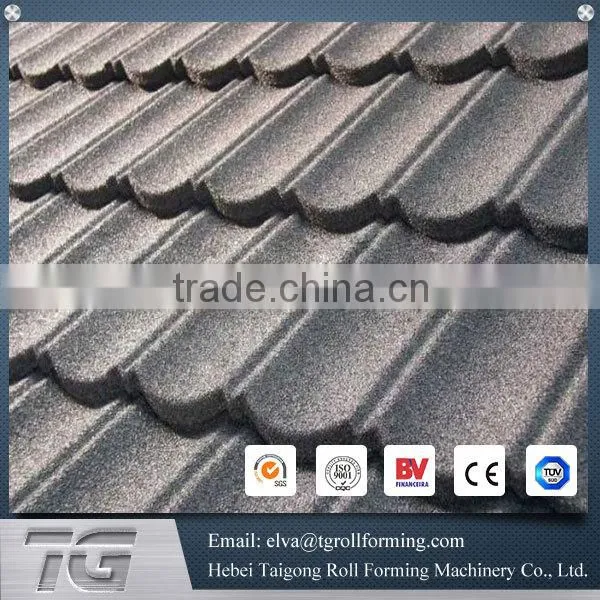

Colorful stone coated metal roof tile is a modern environmentally friendly roofing material with
the basic of 0.4mm Al-zin coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.

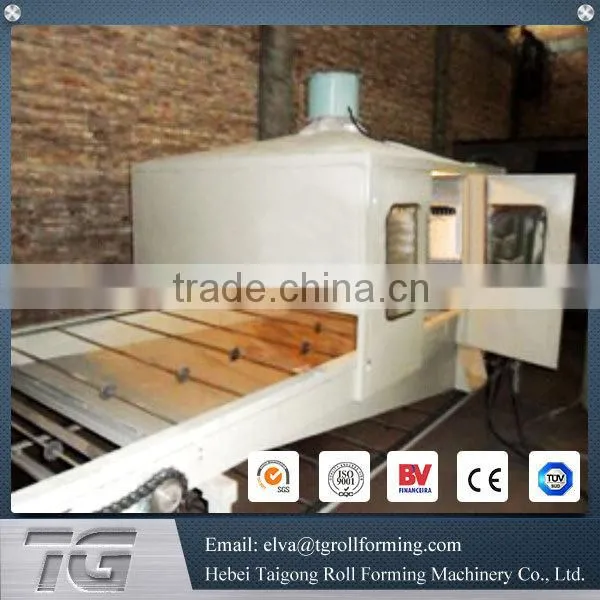

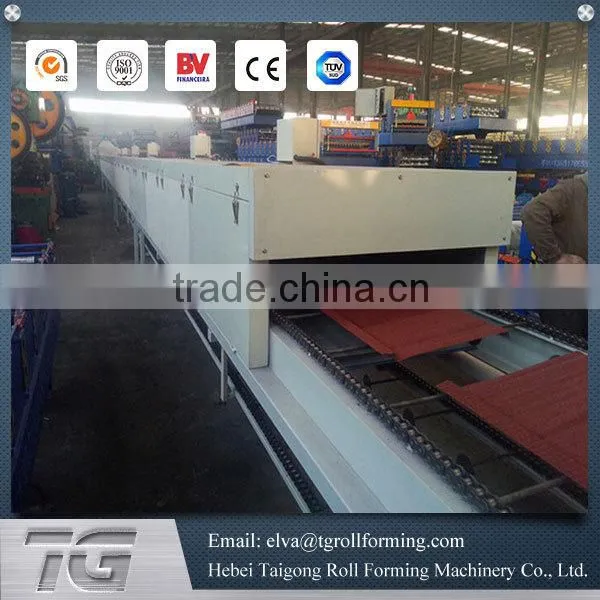

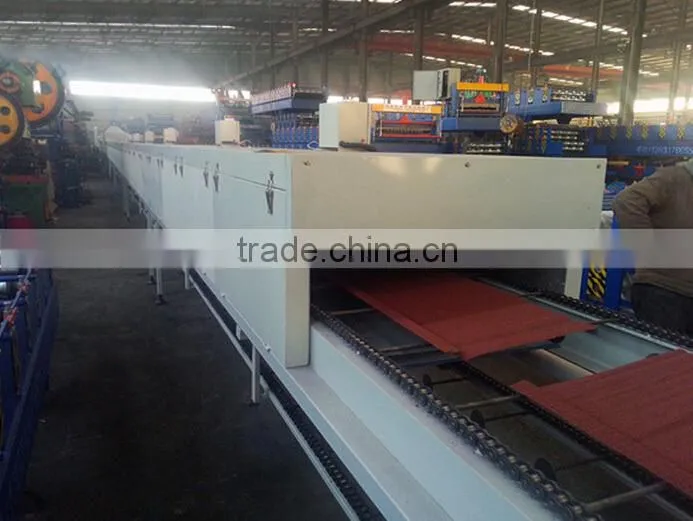

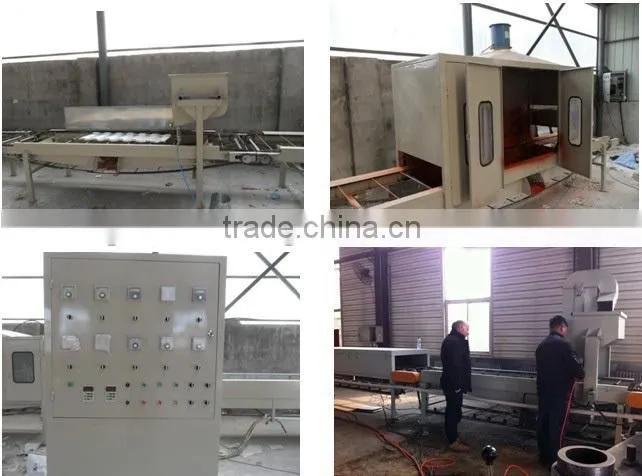

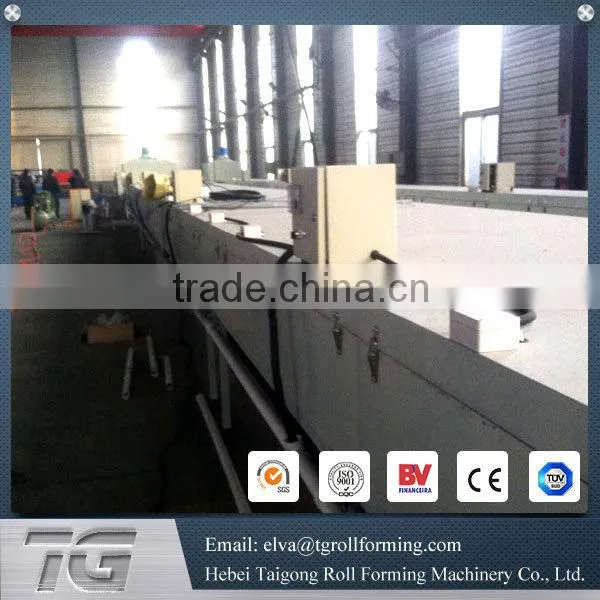

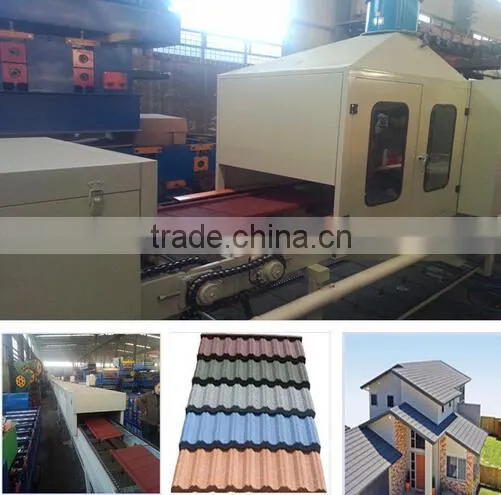

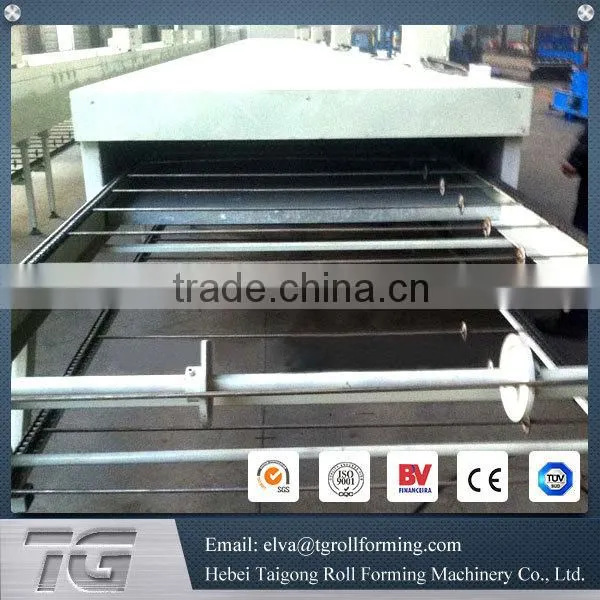

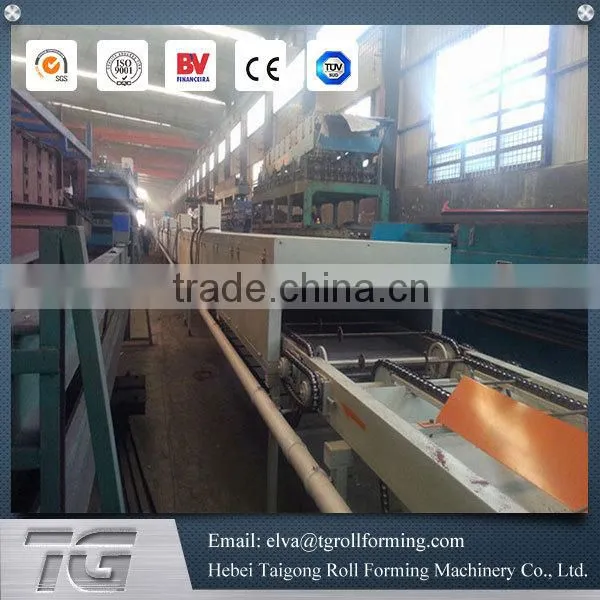

Production line pictures for reference.
1. Working flow
Step 1: The roofing tile profile forming
Slitting the sheet — Lace shearing — Press the profile
Pressing the profile: (can change the mould)
Step 2: Sand blasting (the stone coated)
It is including five main parts:
1 Auto bottom glue spraying section
2 Auto stone coated section
3 The first time drying section
4 Auto face glue spraying section
5 The second time drying section
2. Production Line Detail Introduction:
1. Auto bottom glue spraying section | |
Appearance size |
4000*1000*2000mm |
Driving section |
3KW Excitation motor or frequency speed regulation (AS per customers’ requirements ) |
Automatic pressure spray tank |
1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Automatic glue machine motor |
Servo motor ; Power: 750w ; PLC |
Automatic spray gun |
4 set (spare parts) |
Dust collecting fan |
1 set ; Power: 200w |
Damp proof lamp |
1 pc ; Power: 100w |
Conveying device |
Chain reciprocating |
Air compressor |
1 set ; Power: 7.5kw |
Dust control of axial flow fan |
1 set ; Power: 200w |
Agitator |
1 set ; Power: 1.5kw |
2. Auto stone coated section | |
Appearance size |
3500*1000*1500mm |
Framework |
Steel welding |
Conveying device |
Chain reciprocating |
Automatic sand hopper |
1 set ; Capability: 200kg |
Bucket lift |
1 set |
Manual sandblast gun |
4 sets |
3. The first time drying section | |
Appearance size |
25000*1000*1200mm |
Framework |
Steel welding |
Frame type thermal insulation wall |
1.2mm cold steel with Rock wool |
Automatic temperature controller |
4 sets ; Range: 0°~160° |
Infrared heating tube |
30pcs ; Power: 30kw |
Conveying device |
Chain reciprocating |
Air cooling device |
1 set ; Power: 200w |
4. Auto face glue spraying section | |
Appearance size |
3000*1000*2000mm |
Framework |
Steel welding |
Damp proof lamp |
1 pc ; Power:100w |
Automatic pressure spray tank |
1 set ; Capability: 200kg ; Range: 0.6~1Mpa |
Conveying device |
Chain reciprocating |
Automatic spray gun |
4 sets (spare parts) |
Manual patch glue gun |
4 sets |
Dust control of axial flow fan |
1 set ; Power: 200w |
Automatic glue machine motor |
Servo motor ; Power: 750w |
5. The section time drying section | |
Appearance size |
30000*1000*1200mm |
Framework |
Steel welding |
Frame type thermal insulation wall |
1.2mm cold steel with Rock wool |
Automatic temperature controller |
4 sets ; Range: 0°~160° |
Infrared heating tube |
30pcs ; Power: 30kw |
Conveying device |
Chain reciprocating |
Air cooling device |
1 set ; Power: 200w |
This line is 80M long. So we need the workshop length is about 90M.
And also need one of 2*3 air compressor room.
About the workers need:
PLACE |
QTY. |
Panel loading |
one |
Bottom spraying |
one |
Stone coating |
one |
Fill stone |
one |
Face glue |
one |
Bottom glue mixing |
one |
Finish goods receiving |
one |
3. Company Information:
4. Payment terms and after-sale service:
1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 120 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
If you have any further question of our Equipment, please feel free to contact me, thanks!
