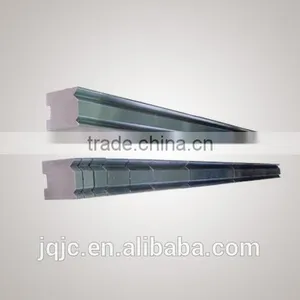

Kingball custom mold making factory stainless steel tablet press punch and die
We produce hydraulic cnc press brake ,and also manufacture press brake tooling.because some parts are produced by ourselves , so our press brake price is lower than other press brake factory, welcome to inquiry.

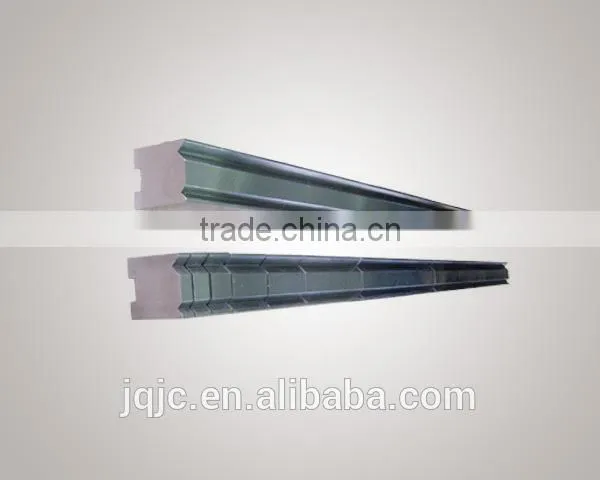

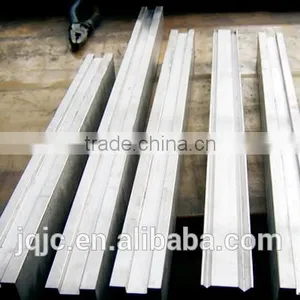

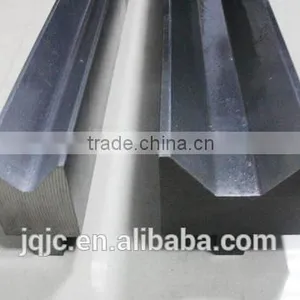

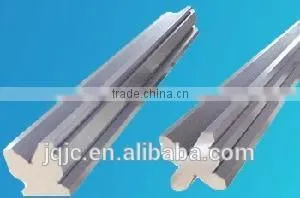

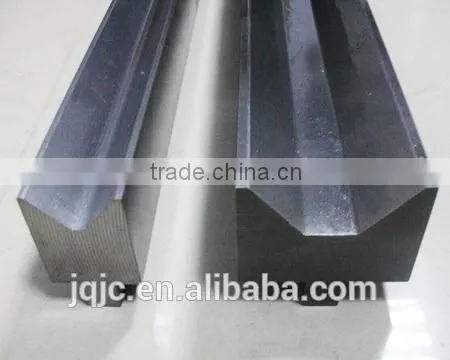

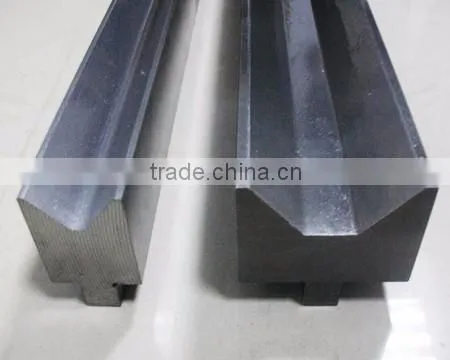

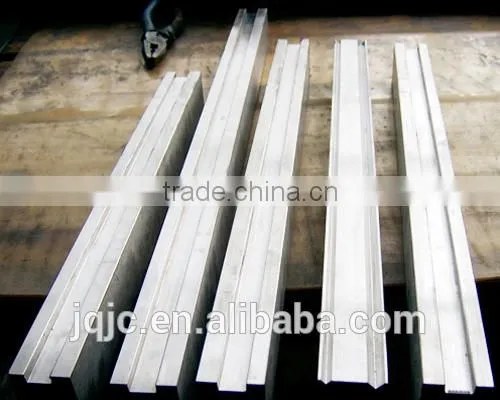

Introduction of press brake tooling
1. press brake tooling is used for bending machine forming tool of bending sheet metal .
2. It is mainly by changing the physical state of the molding material to achieve the workpiece shape
3.Press brake die can be divided into the upper die and lower die for sheet metal forming and separating mold. The forming mold has a molding cavity, separating mold has a separation blade.
4. we are also manufacturer of press brake ,bending machine and shearing machine etc.
Operation attentions of press brake tooling.
1.Bending plate need press the lowest position with delay function,and avoid the plate hurt workers.
2.When you choose notch,you need buy 8 times thickness of plate,such as, 4mm plate ,you need choose 32mm width notch.
3. Check the upper and lower die bending machine coincidence degree and robustness; check the positioning device conform to the requirements or not.
Specification of press brake tooling

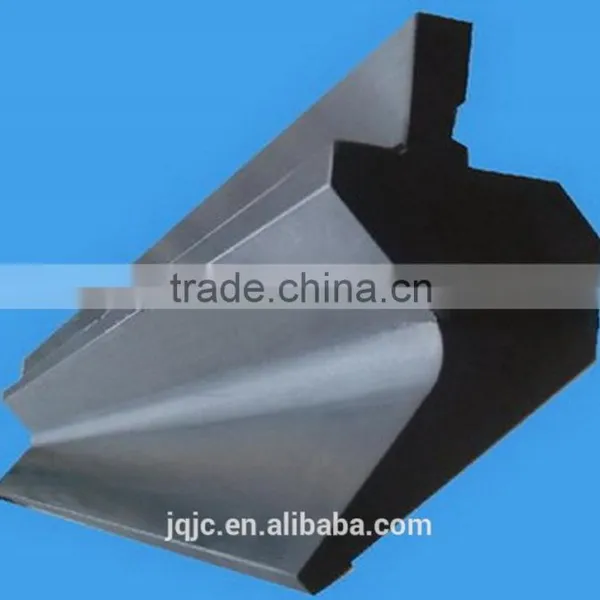

bending machine mould
1.Material: 42CrMo
2.Hardening: Total Hardening
3.Hardness: HRC47+/-2
4.Surface Tolerance: 0.02mm
bending machine mould
for any press brake
2.practical and easy to set and replace
3.all specifications are acceptable
petitive price
5.fast delivery and safety package
Material |
42CrMo=SCM440=42CrMo4=4140 |
General Hardness |
HRC47+/-2 |
Surface Tolerance |
0.02mm |
Sectioned |
AVAILABLE |
Certification |
ISO9001:2008 |
Supplying Brands |
amada, tokyo, trumpf, wila, LVD, YSD, beyeler, etc. |
OEM & ODM Service |
AVAILABLE |
CUSTOMIZE & DESIGN Service |
AVAILABLE |
Notch width of the tooling slection
Regarding the notch selection of press brake tooling,generally you need choose 8 times thickness of plate as the width of notch.Such as you want to bend 4mm sheet ,you need select 32mm notch width.
General of press brake tooling specification
Item of press brake |
Upper mould size(mm) |
Lower mould size(mm) |
40T/2000 |
2000×70×18 |
2000×55×55 |
40T/2000 |
2000×80×18 |
2000×75×75 |
40T/2000 |
2000×90×30 |
2000×55×55 |
40T/2000 |
2000×150×26 |
2000×55×50 |
63T/2500 |
2000×85×28 |
2500×70×70 |
63T/2500 |
2500×150×25 |
2500×65×65 |
63T/2500 |
2500×85×28 |
2500×55×55 |
63T/2500 |
2500×100×20.5 |
2500×70×7 |
80T/3200 |
3200×80×18 |
3200×95×95 |
100T/3200 |
3200×150×26 |
3200×95×95 |
100T/3200 |
3250×86×28 |
3250×75×7 |
100T/3200 |
3200×72×30 |
3200×100×100 |
100T/3200 |
3250×80×25 |
3250×95×95 |
100T/3200 |
3200×85×25 |
3200×75×75 |
100T/3200 |
3200×80×25 |
3200×95×95 |
160T/3200 |
3200×90×56 |
3200×110×110 |
160T/3200 |
4000×80×25 |
4000×110×11 |
160T/3200 |
4000×90×30 |
4000×110×11 |
160T/3200 |
4000×134×34 |
4000×120×120 |

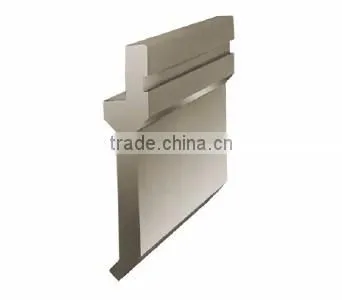

Drawing of the tooling for you choose
MOQ: 1 set
TERMS of payment : 30%TT, 70% before shipment or L/C atsight.
Packing & shipment: if you need it urgent ,you can choose by air. the best method ,you 'd better buy one press brake from us, then the press brake tooling price will be lower.because they sent be together by sea.
