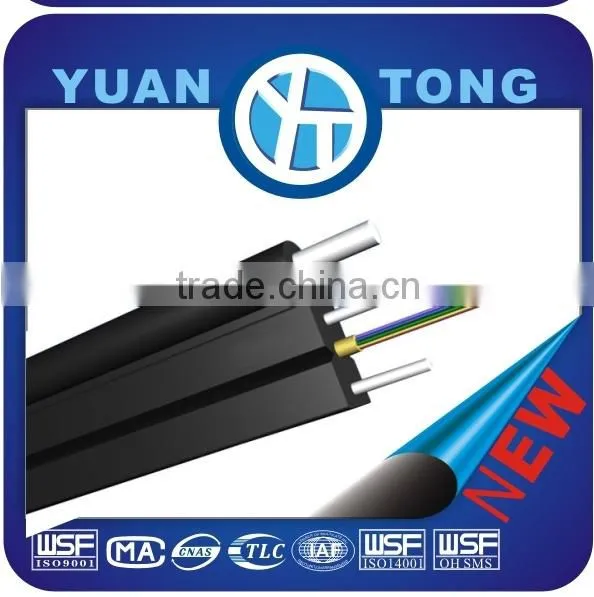

4 core multi mode aerial fiber optic cable GJYXCH manufacturer
Features
1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

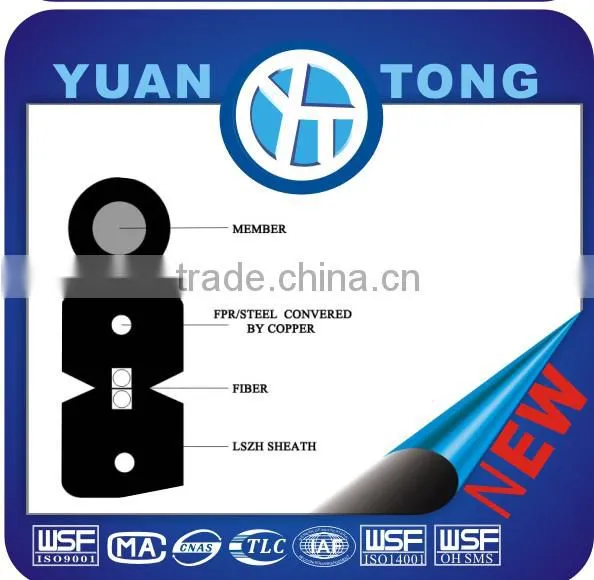

2. Two parallel steel wires ensure good performance of crush resistance to protect the fiber
3. Single steel wire as the traditional strength member ensures good performance of tensile strength
4. Simple structure, light weight and high practicability
5. Novel flute design, easily strip and splice, simple installation and maintenance
6. Low smoke, zero halogen and flame retardant sheath
Application
1. Used in indoor cabling, and end users directly cabling
2. Used as access building cable
Technical Parameters
|
Fiber count |
Cable diameter (mm) |
Cable weight (kg/km) |
Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N) |
Bending Radius Dynamic/Static (mm) |
1 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
2 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
4 |
(2.0±0.2)×(5.6±0.2) |
21.5 |
30/60 |
300/1000 |
15/30 |

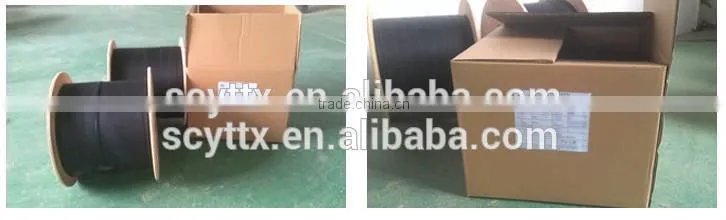

1. 2000 Meters/drum, each drum in one carton, carton size is 0.407*0.407*0.345
2. Special wooden drum or iron wooden drum is also available according to cable size and packing length.
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
3. OEM and ODM services are acceptable when customer demand in advance.
Sichuan Yuantong communication Co.,Ltd is a company specializing in the development of optical communication products, production, sales and with independent right of high-tech enterprises.
Add: Chengdu Southwest Airport Economic Development Zone, from the Shuangliu Airport, highway takes only a few minutes.
Scale of company: More than 4000 square meters(office building area 1200 square meters , plant construction area of 2500 square meters, containing optical fiber cable workshop, workshop, extrusion workshop, preparatio workshop)
Staff: More than 150 workers
Main product: the covered optical cable, indoor cable and FTTX professional solution for the whole series of products
Our market: United states, Europe, the middle East and Southeast Asia and many other countries
Certificate
Why you choose us?
Firstly we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this way we can provide you with high-end products, competitive price and superb service.
Secondly we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.
Thirdly your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is complicated will reply u the second day.
Last but not the least, we have gained Alibaba trade assurance so there’s no worry about our quality.
Payment:
Massive order: T/T, T/T&LC, are all acceptable.
Small order: T/T, Credit- card, west-union are acceptable.
Shipping & Delivery:
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 years after-sale service. If there is no man-made problem. we will replace or repair for you freely. Even after one year If any problem happened, our team will do our best to help you figure it out, so no worries.
