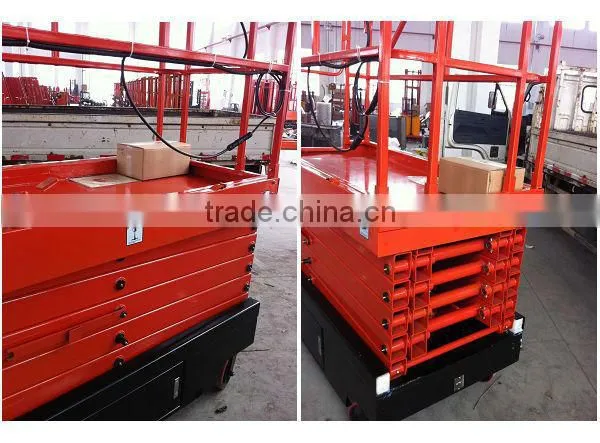

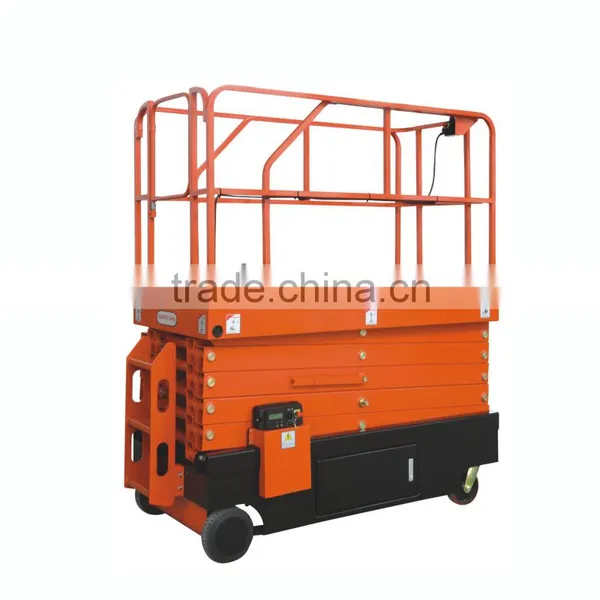

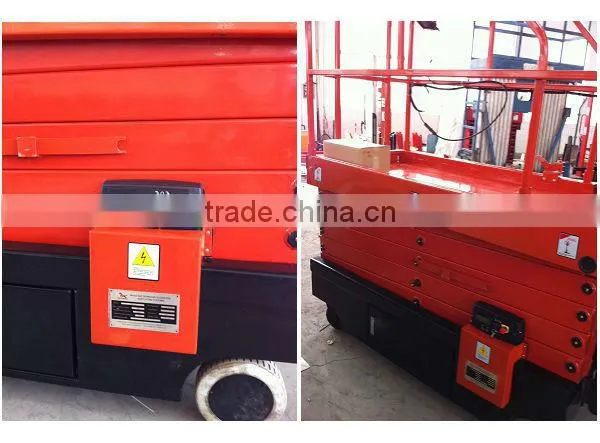

Help Center6.0m Whole-electromotion Scissor-type Aloft Lifting Platform.
Related Products
-
7.4m Whole-electromotion Scissor-type Aloft Lifting Platform.US$ 1 - 9,000MOQ: 1 Unit -
11m Scissor Type Elevating Platform With Pulling Device(2)US$ 3,500 - 5,000MOQ: 1 Unit
-
9.0m Scissor Type Elevating Platform With Pulling Device(2)US$ 3,500 - 5,000MOQ: 1 Unit
-
7.5m Scissor Work Platform With Pulling Device(2).US$ 3,500 - 5,000MOQ: 1 Unit
-
6.0m Scissor Type Elevating Platform With Pulling Device(2)US$ 3,500 - 5,000MOQ: 1 Unit
Specifications
lifting platform1.Platform size:1870*730mm
2.Max. machine height: 7100mm
3.Capacity: 300Kg
4.With CE certificate
Advantages
1. Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.
3. Driving wheels and balance wheels assembly to keep the safety.
4. Spraying plastics appearance.
5. 2-3 days working time of one time charging.
6. With safety-falling equipment,ensure the safety during operation.
Specification:
| model number | FSJY6 | |
| Maximum platform height | mm | 6000 |
| Maximum machine height | mm | 7100 |
| Minimum platform height | mm | 1010 |
| Ground clearance | mm | 90 |
| Rated lifting capacity | kg | 300 |
| Extending platform capacity | kg | 100 |
| Platform size | mm | 1870x730 |
| Extending platform length | mm | 900 |
| Maximun speed(platform stowed) | km/h | 3-4 |
| Maximun speed(platform elevated) | km/h | 0.6-1 |
| Minimum turn radius | mm | 1900 |
| Maximum gradeability | % | 10-15 |
| Driving wheel size | mm | Φ250x80 |
| Caster size | in | 8 |
| Driving motor | 2x24/0.5 | |
| Lifting motor | v/kw | 24/2.2 |
| Aneroid Battery | v/ah | 2x12/150 |
| Charger | v/A | 24/20 |
| Pothole Protection system | Mechanical control | |
| Overall length | mm | 2030 |
| Overall width | mm | 900 |
| overall Hight | mm | 2120 |
| Overall Weight | kg | 1300 |
Product details
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.
Our nearest export port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to Motorcycle hydraulic scissor lift, for a period of 1 year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be
defective in material or workmanship when under proper operation during warranty period.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will sendquotation for
the new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
