Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 10m Single Mast Mobile Aluminium Work Platform

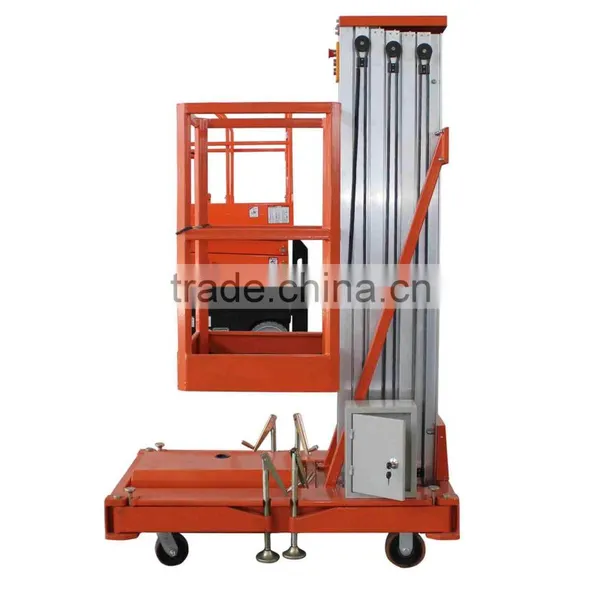

10m Single Mast Mobile Aluminium Work Platform

Name: 10m Single Mast Mobile Aluminium Work Platform
Brand: Shintool
SKU: 133388203

10m Single Mast Mobile Aluminium Work Platform thumbnail-1

10m Single Mast Mobile Aluminium Work Platform photo-1

US$ 1 - 4,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Shintool

Model Number:

AWP10-1000

Contact Supplier Request Quote Chat Now

Hangzhou Shintool Machinery Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Shintool

Model Number AWP10-1000

Lift Mechanism Telescoping Lift

Lift Drive / Actuation Electric Motor

Power 2.0Kw

Rated Loading Capacity 125 Kg

Min. Lifting Height 2150mm

Max. Lifting Height 11700mm

Table Size 650*600mm

Overall Dimensions 1330mm * 800mm * 2150mm

Weight 430Kg

Certification CE

Warranty One year guarantee

After-sales Service Provided Overseas third-party support available

Specifications

aluminium work platform
1.Platform size:650*600mm
2.Working height:11700mm
3.Capacity:125kg
4.With CE

Product Description

Advantages

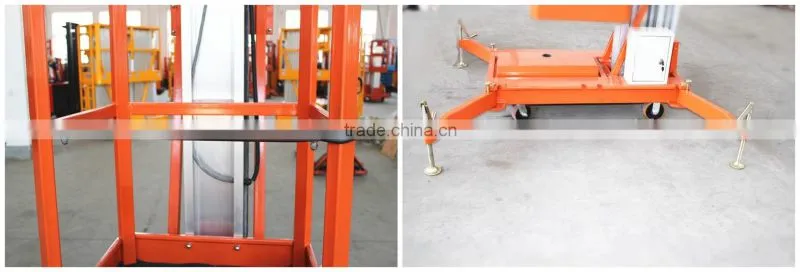

The single mast mobile elevating work platform has the following characteristics:

1.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.

2.Safe and reliable: The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP duringwork. They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs. The stand bars are installed in the turning legs. Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the steadiness of the whole platform is guaranteed.

3.Convenient: The whole work platform is light because the lifting masts are made of alloy aluminum. The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.

Specification

Model Number			AWP10-1000
Max.platformheight		mm	10000
Working height		mm	11700
GroundClearance		mm	80
Liftrated Capacity		kg	125
Platform Size		mm	650*600
Outspread Size		mm	1930*1770
Electrical Source	AC	v	220
Electrical Source	DC	v	24
AneroidBattery		v/Ah	2*12/60
Charger		v/A	24/10
Lifting Motor	AC	v/kw	220/0.75
Lifting Motor	DC	v/kw	24/2.0
Overall length		mm	1330
Overall width		mm	800
Overall height		mm	2015
Overall Net Weight	AC	kg	450
Overall Net Weight	DC	kg	480

Product details

Packaging & Shipping

Packaging & Shipping

Our Services

At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.

Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.

Our nearest export port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.

Warranty details

SHINTOOL provide the warranty period to Motorcycle hydraulic scissor lift, for a period of 1 year after the date of Bill of Lading.

During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be defective in material or workmanship when under proper operation during warranty period.

After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will sendquotation for the new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
