Help CenterShuttle Racking System
Related Products

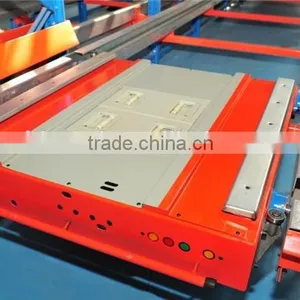

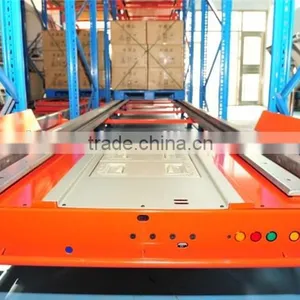

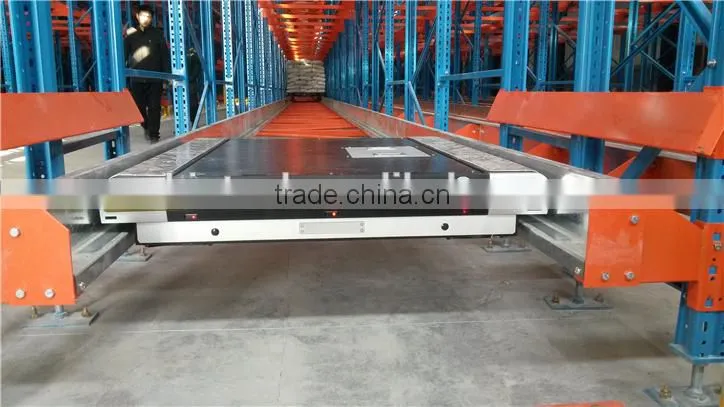

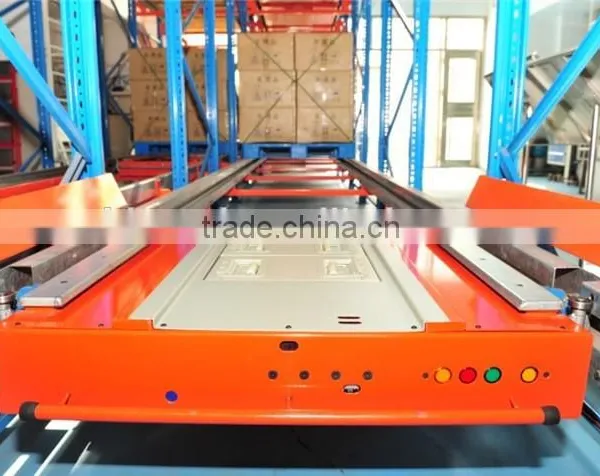

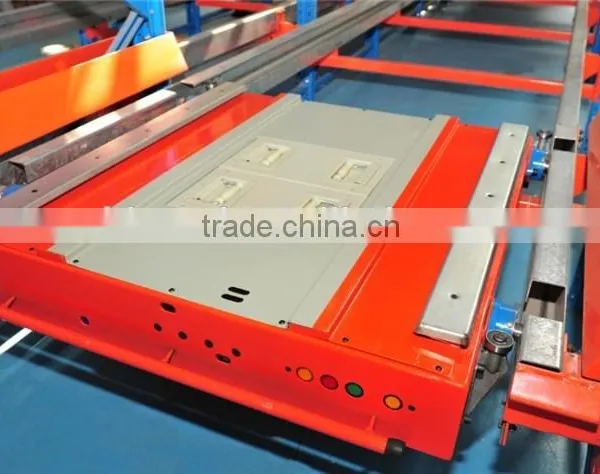

A shuttle system consists of supporting rack, shuttle rails and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
When the pallet is required, the cart moves in under the pallet, lifts it and brings it to the front of the rack where it can be retrieved by a forklift.
All the movements of the shuttle cart are controlled with a hand held remote control. The shuttle cart is placed in the desired lane with a forklift.
| Heavy Rack | |
| Material | High grade SS400 Cold Rolled Steel |
|
Load Capacity & Dimension |
(1) Loading capacity: 500-4000 kgs /pair beam. |
| (2) Height: 1500-10000mm | |
| (3) Depth: single row 800-1200mm ( decided by pallet size), back-to-back 1800-2700mm | |
(4) Length: 1500/2000/2500/2800/3000/3300/3500/3600 | |
| (5) Special sizes also available to specific storage needs. | |
| Main Parts Specs(mm) | (1) Upright: 80*60*2.0/90*70*2.0 |
| (2) Beams: 100*50*1.5/120*50*1.5/140*50*1.5/160*50*1.5/140*50*2.0/160*50*2.0 | |
| (3) Horizontal & diagonal bracings: 40*24*1.5 | |
| (4) Upright Footplates: 120*120*3.0 | |
| (5) Safety locking pins | |
| Features | (1) Beam levers are adjustable in 75mm pitch interval. |
| (2) Different sizes, various specifications and colors are available according to your needs. | |
| (3) Maximizes space utility ratio while retaining optimum product accessibility. | |
| (4) Strength and rigidity prevents compression damage to goods. | |
| (5) Bottom level of pallets can be stored on the floor, lowering structure costs. | |
| (6) Bolts & nuts | |
| (7) Anchors and all necessary components. | |
| Surface Treatment | High-quality Powder Coating |
| Certificates | CE certified, ISO9001 |

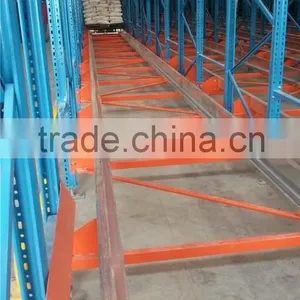

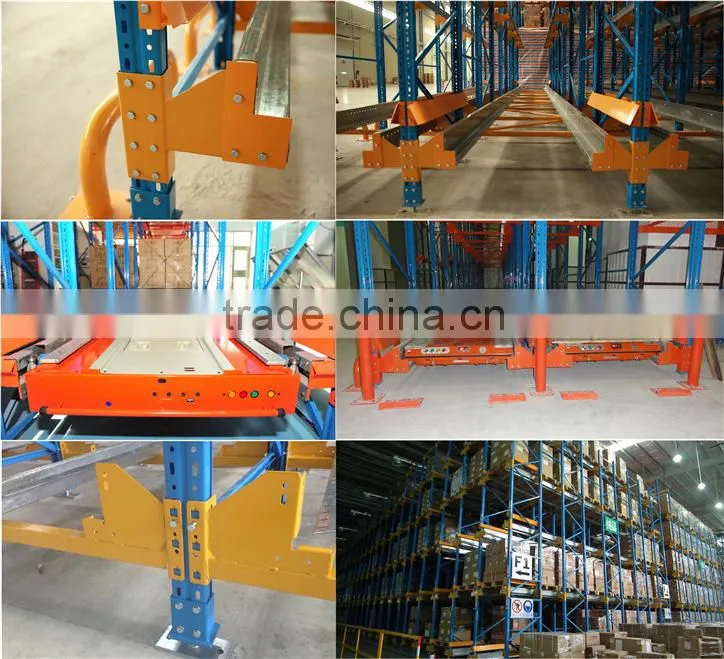

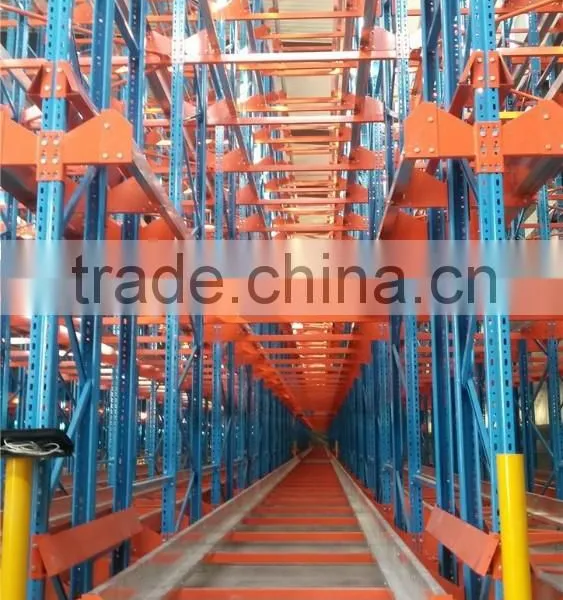

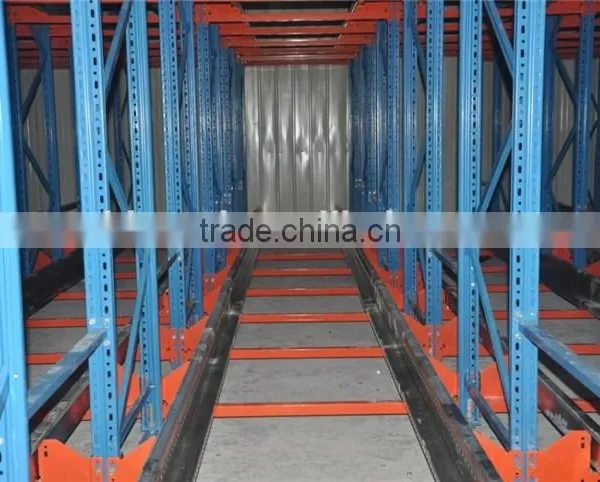

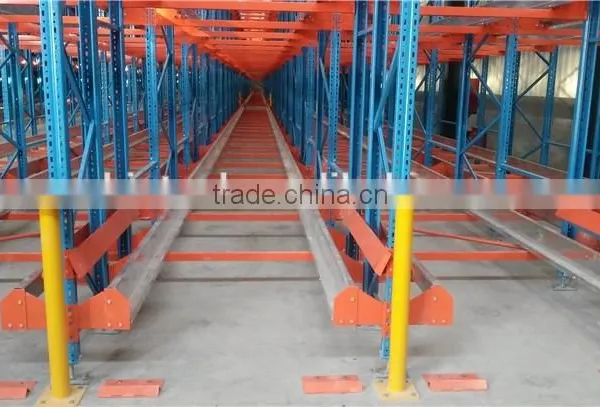

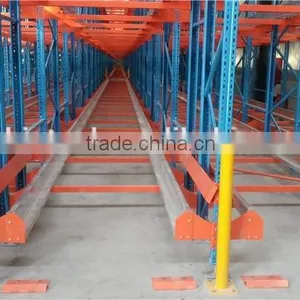

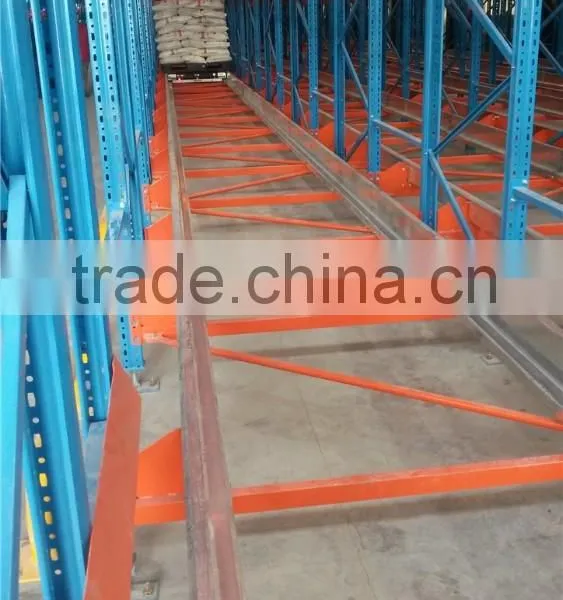

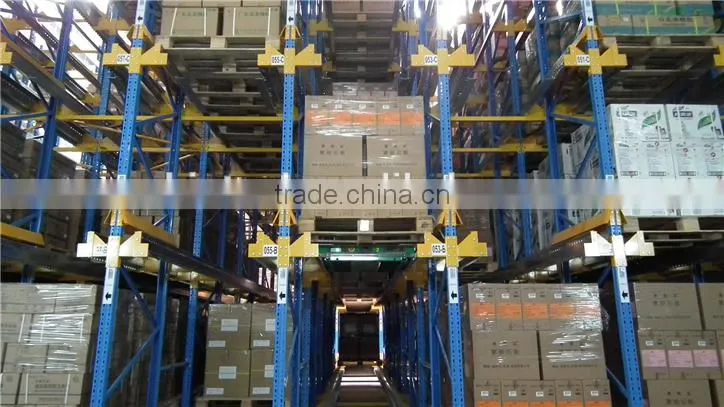

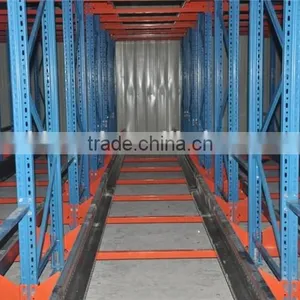

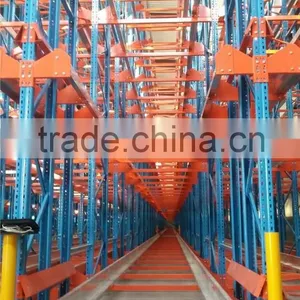

Pictures of Shuttle Pallet Racking
A. Each piece covered with wrapped film,
B. Uprights,& beams stacked up in a rule,packed together separately,
C. While shelf boards stacked up in a rule,packed together separately.
Located in Nanjing, Jiangsu, found in 1995, with 22 years’ developing, now we have 3 factories and more than 600 employees. Now our annual turnover exceed 100 millions dollars.
In 2014, we introduced in whole Italian Gasparini rolling mill production line, welding robots, rolling roll cleaning sand blasting machine and automatic electrostatic power coating production line.
These makes us the unique one in whole China racking industry who use the most advanced European production devices. All our products are made in accordance with European production standards.
For more information, please click the following picture.
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of pallet (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
Our Parters
1. Warranty
One Year
2. Delivery time
The standard products are delivered within 20 days.
3. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
4. Are samples available?
Yes, we can send some sections of samples for your reference by express.
