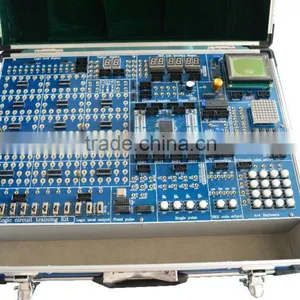

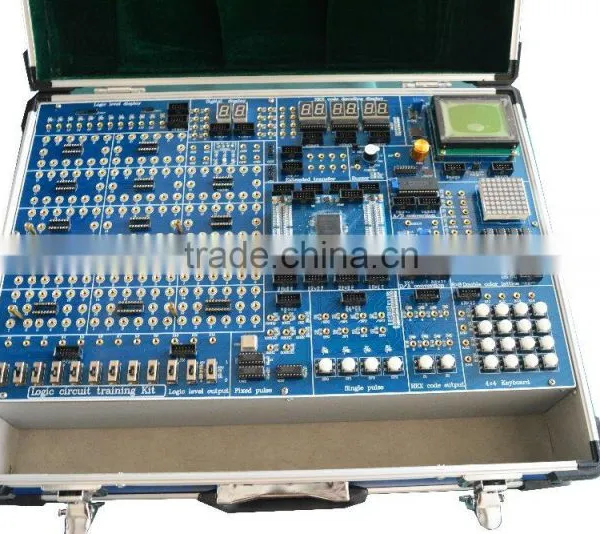

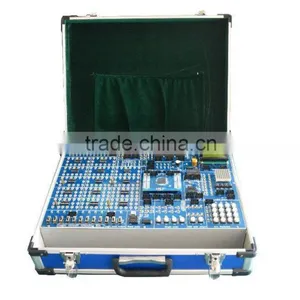

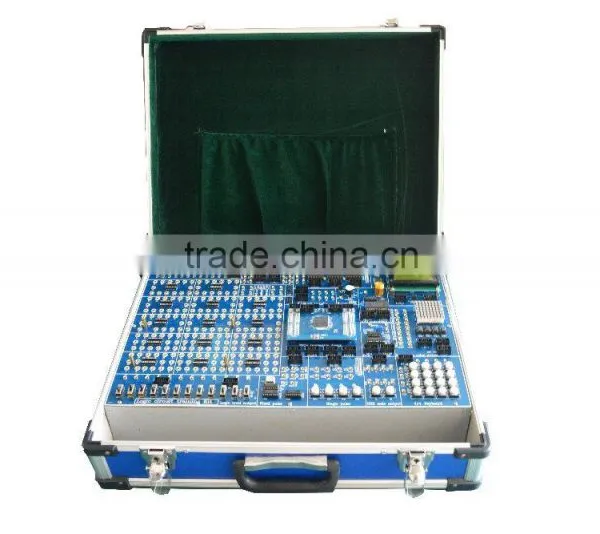

Brief introduction:
This training kit is a comprehensive electronic design platform for electronic system designand teaching. It can carry out multi type experiment and it is suitable for electronic technology research and develpment in the vocational and technical school and universities.
Composition :
(1)Power supply :Input : AC 220V±10% ,50H;
Output:DC±12V/200mA ;5V/2A.
(2)7 channel fixed frequency pulse sources: 1HZ,10HZ,100HZ,1KHZ,10KHZ,100KHZ,1MHZ
(3)Digital frequency meter : 0~300KHZ
(4)Two single pulse: can simultaneously output both positive and negative pulses, pulse amplitude is TTL level.
(5)Quad (T1, T2, T3, T4) and start and stop timing generator circuit.
(6)Logic level input and display:
A, Sixteen digital independent logic level switch: output "0", "1" level (positive logic).
B, Sixteen digital logic level display circuit driven by the LED driver circuit.
(7) 6 digital consisted of eight digital LED tube BCD decoder display.
(8) All Lattice-1032E All I / O ports, EDA program and relevant software is available.
(9) Other components:
A,IC socket : 40P*1pcs, 20P*2pcs, 16P*1pcs, 14P*4pcs;
B,Multiple self-made experimental area;
C,Two different resistance adjustable potentiometer.
Experiments:
1. TTL integrated logic gates parametric tests
2. CMOS integrated logic gates tests
3. Logic gate circuit experiment
4. Commonly used combinational logic device function tests
5. Data Selector and its applications
6. Blood relations and voting circuit detection circuit
7. RS trigger function test
8. JK trigger logic functions and the main parameters test
9. Functional testing of the shift register
10. Decimal counter (CMOS)
11. Asynchronous Counter
12. Synchronous counter
13. Counting, decoding, display circuit experiment
14. 555 integrated timer and its application
15. Sequence Detector
16. Digital - analog converter
17. Following comparison type A / D converter circuit
18. Manually controlled traffic light controller
19. Taillights control circuit
20. Digital clock circuit design
21. Timing circuit testing and research
22. Waveform generator and one-shot
23.A / D converter circuit;
24.D / A converter circuit;
25.EDA device development and design experiments;
