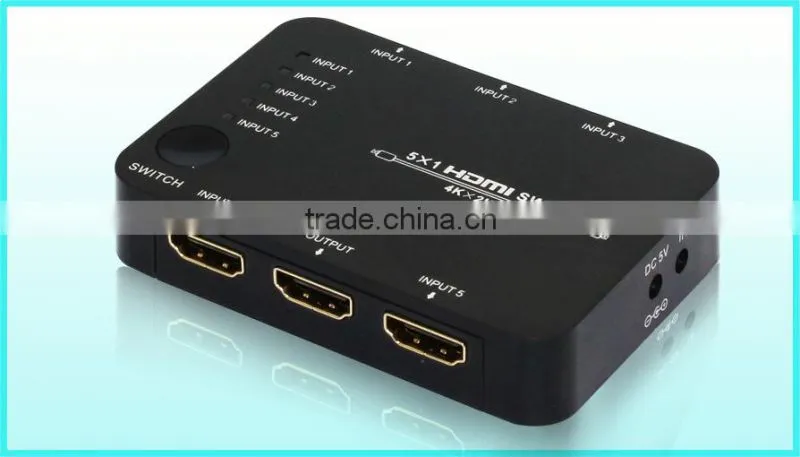

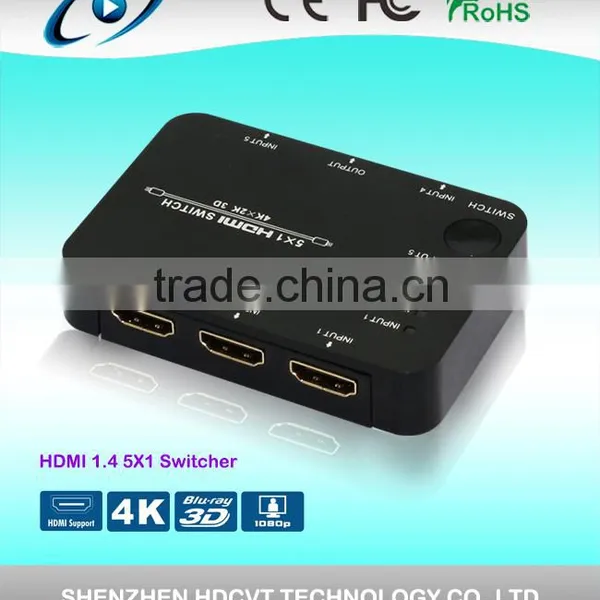

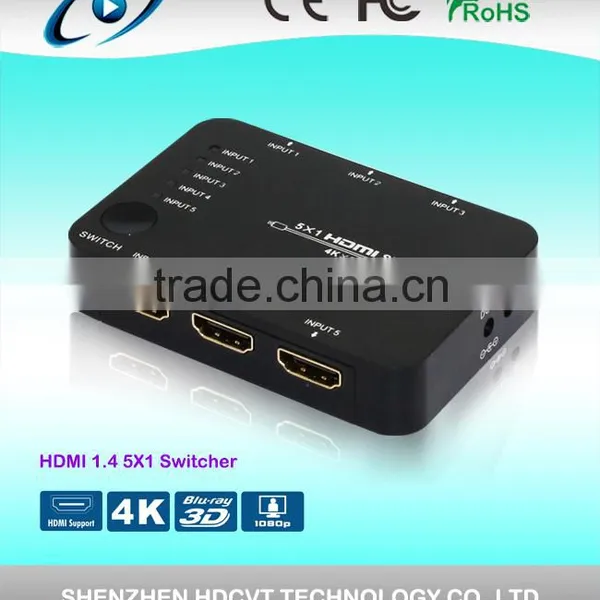

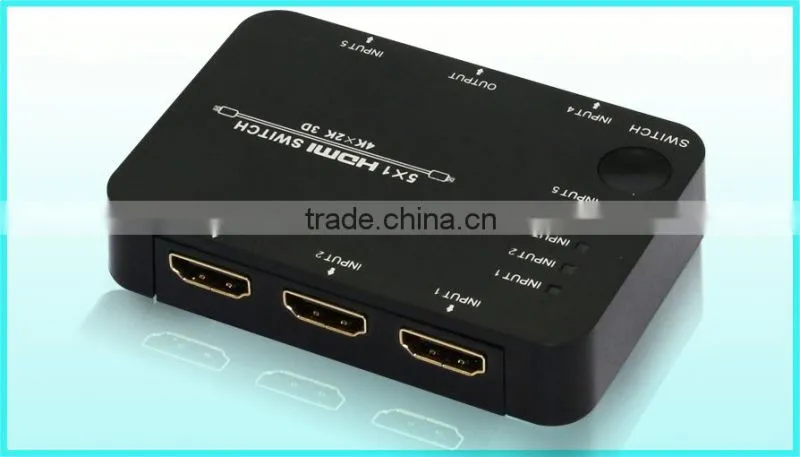

Switch HDMI 5x1, HDMI 1.4, 4K x 2K
Introduction
This is a high performance 3 HDMI input and 1 HDMI output switch. It supports HDCP repeater functions and fast switching between any of the HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives uses complete control over the selection of sources and makes the device incredibly user friendly.
Features Compliant with HDMI 1.4a, CTS 1.4a, DVI 1.0standards. HDMI 1.4 support: 3D TV support. Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per color depth. Audio support: Dolby TrueHD DTS-HD Master Audio 7.1CH Low power consumption, does not require an external power supply
Specifications Frequency Bandwidth 2.97Gbps Input Ports 5 HDMI Female ports, IR Receive port Output port 1 HDMI Female port HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 87(D) x59.5 (W) x 19(H) Weight (g) 60 Power Consumption 0.2W
|

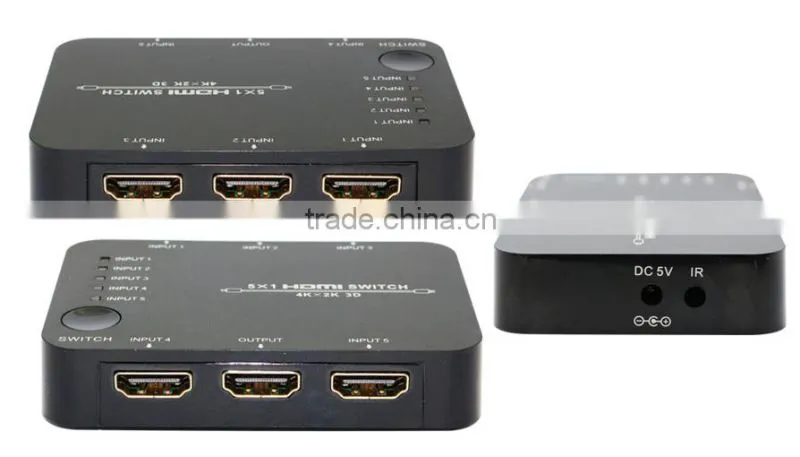

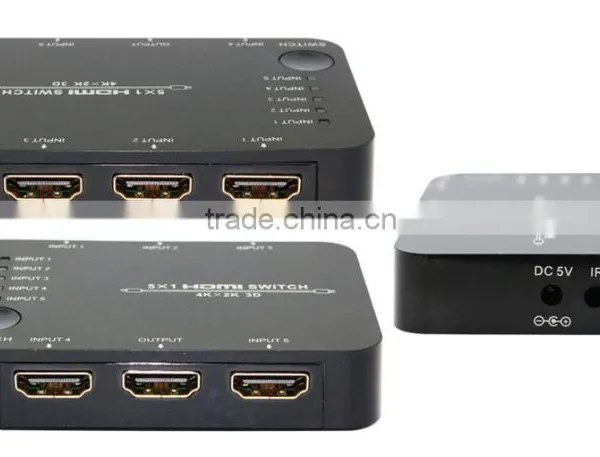

5×1 Switch Operation controls and Functions
Face Panel: 1 Switch button,press the button will switch the input source;
2, 3, 4, 5 ,6 Led indicate ,Indicates the HDMI input port selected corresponding to the light.
Front Panel:1, 3, HDMI input port, connect with DVD, PS3,Set-top Box and Note Book with HDMI cable
2, HDMI output port, connect with HDTV or monitor with HDMI cable
Rear Panel:HDMI input port, connect with DVD, PS3,Set-top Box and Note Book with HDMI cable
Right Panel:1 DC 5V input port;
2 IR receiver port: connect a IR extend cable and receiver the Remote signal.
Package
HDMI 1.4 4by1 Switcher
5V USB to DC Power Supply cable
Remote control
IR Receive Extend cable
Operation Manual
Shipping
Shenzhen HDCVT Technology Co., Ltd. was established in 2008. We are a high-tech video and HDMI product manufacturer in Shenzhen, China. With over five years of business, we have become a leading high top standard supplier of video switcher products and all kinds of AV-VGA, Video Converters and others. Our customers always satisfy you with our high quality goods and the best service.
