Specifications
Portable Laser Metal Engraving Machine1.IPG fiber laser engrave
2.galvanometer scan head
3.mini compact design
4.high speed

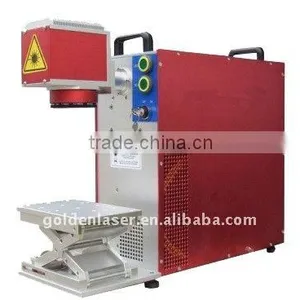

Portable Laser Metal Engraving Machine GDBGX-10
Machine Features:
1.Taking use of integrated design of whole structure, equipped with automatic focusing system. The operation is very humanized.
2.Adopting the imported original IPG fiber laser form Germany. Good beam quality. High photoelectric conversion efficiency. Long working life (100,000 hours).
3.Its beam quality is much better than traditional solid laser marking machine. As the base module(TEM00) output, diameter of focal spot is less than 20um.Divergence angle is 1/4 of pumped semiconductor laser. Particularly applicable to fine, precision marking.
4.Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast.
5.Long lifetime, small dimension, apply to work in the narrow environment.
6.Processing speed is 3 or 5 times faster than traditional marker.
Applied industry and materials
Materials: Any metal (including precious metals),engineering plastic, plating coating materials, spray material, plastic, rubber, epoxy resin, ceramic, and other materials.
Industry: The phone keypad keys, translucent plastic keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches ,jewellery, automobile accessories, bags decorated clasps, cookers, stainless steel products and other industries.
Technical Parameter
Laser generator |
Fiber Laser |
Laser power |
10W |
Standard marking area |
70mm×70mm |
Optional marking area |
35mm×35mm, 130mm×130mm |
Working table |
Manuel up and down aluminium alloy working table |
Marking speed |
0-2000mm/s |
Cooling system |
Air cooling |
Control system |
Digital offline control |
Galvo positioning accuracy |
±0.01mm |
Power supply |
AC220V ± 5% / 50/60Hz |
Format support |
AI, BMP, PLT, DXF, DST, etc. |
Optional |
20W fiber laser Rotary device for cylinder marking |
