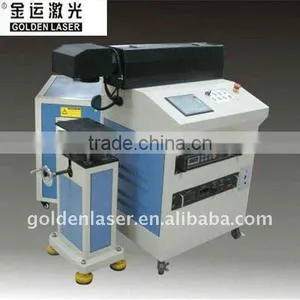

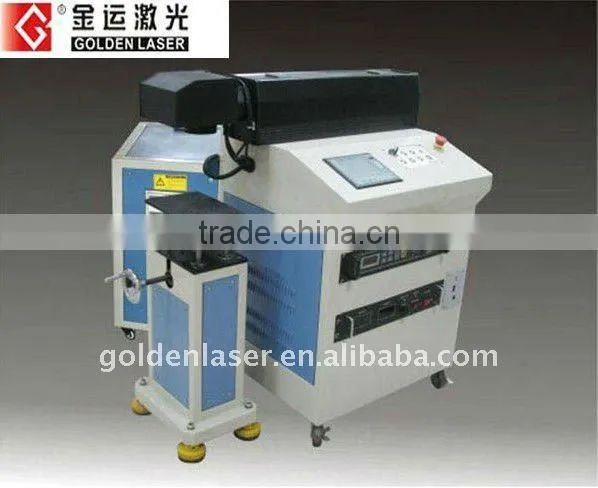

Help Center50W YAG Laser Stainless Steel Marking Machine
Related Products
-
10W 20W Portable Fiber Laser Marking Machines for Metal Fiber Laser MarkerNegotiableMOQ: 1 Set -
Fiber Laser Marker on MetalNegotiableMOQ: 1 Set
-
Compact Mini Laser Marking System (10W Fiber Laser)NegotiableMOQ: 1 Set
-
Small Laser Marking on Denim FabricNegotiableMOQ: 1 Set
-
RAYCUS/SPI/IPG Fiber Laser Metal MarkingNegotiableMOQ: 1 Set
Specifications
Laser Stainless Steel Marking Machine1.Diode YAG laser
2.effective mark
3.highest quality and contrast
4.Germany Galvo head
Laser Stainless Steel Marking Machine
--The most effective marking technology available on the market today is laser marking.
--It is a fast marking technology that can even be used on hardest materials such as carbides.
--Laser marking offers you a marking solution of the highest quality and contrast.
Machine Features
1. High speed Germany Galvo head. High photoelectric conversion efficiency.
2. Fast marking speed, permanent and precise marking result without any distortion.
3. Sealed optical path, low failure rate and maintenance-free.
4. With Diode side-pump YAG laser, it can satisfy diversified marking requirements.
[In appearance, there are integrated model and detached model for choice.]
Model |
GDBEC-50 |
Laser type |
YAG diode side-pump laser |
Laser power |
50W |
Laser wavelength |
1064nm |
Working area |
70mmX70mm |
Marking speed |
0-2000mm/s |
Mark linear speed |
0-7000mm/s |
Repeatability precision |
±0.1mm |
Mark depth |
0.2mm (metal) |
Power |
AC220V±5% / 50Hz |
Minimum line width |
0.1mm |
Minimum character |
0.5 mm |
Pulse width |
0.5-20ms |
Compatible software |
CorelDraw, AutoCAD, Photoshop |
Graphic format supported |
BMP/JPG/GIF/TGA/PNG/TIF |
Vector graphics format supported |
AI, DXF, DST, PLT, etc. |
Cooling system |
1.6KW water chiller |
Working table |
aluminium alloy working table |
Operating temperature |
0 - 45°C |
Operating humidity |
5 - 95% |
Standard |
Height-adjustable working table |
Optional |
YAG diode side-pump laser 75W, 100W. Rotary device. Optional working area: 35mm×35mm / 110mm×110mm / 130mm×130mm / 205mm×205mm |
Prompt & Good After-sale Service:
1. One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.
