Specifications
Laser cutter machine for plywood/wood board1.Precise cutter engraver
2.Double head
3.High efficient
4.laser cutting plywood

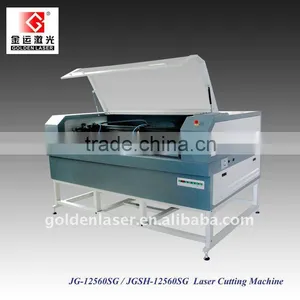

Laser cutter machine for plywood/wood board
Laser cutting is a perfect match for working with a broad range of wood applications, including architectural models, jigsaws, toys, inlays, die-boards, and more. With these and other wood applications, high speeds and clean edges are critical. GoldenLaser solutions offer a fast, safe, and easy way to cut wood with smooth and precise edges, even for the most complex shapes and sizes. GoldenLaser's laser cutting equipments can be used on all types of wood, including solid wood, plywood, veneer, balsa, soft wood, hard wood, Laminated Board and MDF, etc.
Laser cutting has never been so simple, accurate, and fast! As one of the world’s leading laser manufacturers, GoldenLaser offers a full scope of state-of-the-art laser equipment to deliver quick, clean, quality results for a broad range of industrial laser cutting needs.
Laser Cutting Engraving Machine
Technical Parameter | ||||
Model NO. |
JGSH-10060 |
JGSH-13070 |
JGSH-12560 |
JGSH-13090 |
Laser Type |
CO2 DC glass laser tube / CO2 RF metal laser tube |
|||
Working Area |
1000mm×600mm |
1300mm×700mm |
1250mm×600mm |
1300mm×900mm |
Single Head |
65W×1 |
80W×1 |
80W×1 |
80W×1 / 100W×1 |
Double Head |
65W×2 |
80W×2 |
80W×2 |
80W×2 |
80W (Cutting), |
80W (Cutting), |
|||
Working Table |
Zinc-iron honeycomb working table / Strip panel working table |
|||
Fixed working table |
Electric up and down working table |
|||
Repeating Location Accuracy |
±0.1mm |
|||
Motion System |
Step motor / Servo motor |
|||
Cooling System |
Water cooling and protection system |
|||
Power Supply |
AC110V-220V 50/60Hz |
|||
Format Support |
AI, BMP, PLT, DXF, DST, etc. |
|||
Standard collocation |
Mini air compressor, 550W exhaust system |
|||
Optional collocation |
Rotary attachment, |
|||
Features
1. CE Certified.
2. GOLDEN LASER Patent: Dual core laser processing system. Double combined laser heads work alternately. Stable running with separate laser tube/laser power supply makes longer working life of the machine.
3. Front and back run-through design for large materials processing.
4. Precise cutting and engraving, high speed and easy operation.
5. Automatic up and down working table, automatic focus system, ensuring the best focusing and processing effect.
6. With rotary attachment, it can achieve fine engraving for various non-metal cylindrical and tubular materials.
7. Suitable for engraving and cutting a variety of non-metal materials.
Application
Applicable Materials: Wood, Acrylic, Plywood, MDF, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, ABS, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Balsa, Rubber Sheet, etc.
Applicable Industries: Advertising, Signs, Signage, Sign Letters, Advertising Letters, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc.
The Outstanding Laser Cutting Advantages Over Traditional Cutting Tools:
- perfectly clean, smooth and precise edges for difficult geometries
- extremely high cutting speed
- ultra-high flexibility
- tool-free (no retooling!!!) and contact-free technology
- easy handling of machine
- feature "nesting" guarantees most efficient use of materials
- highly economical
Prompt & Good After-sale Service:
1. One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.
