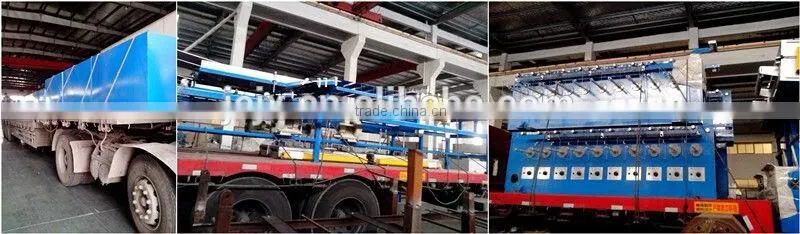

Cable machine automatic copper wire tinning machine
Main capability characteristic :
1.Adding one room inside the annealing furnace can make the furnace temperature uniformity .The energy -saving effect is very remarkable .
2.Dual tinning tank design ,we can make production diversified at the same time .
3.Spooler arrange in double layer can save space .
Technique parameter :
|
Model |
Drawing Die |
Outletwire Diameter (mm) |
Line Speed (mpm/max) |
Send-out Method |
Annealing Method |
Tin-plating Method |
Total Installed Power (kw) |
Machine Dimension (m)
|
Machine Weight (kg) |
JCJX-40H |
40 |
0.10-0.32 |
300 |
Hairbrush wire placing or by tension wire |
Tubular annealing |
Sing-furnace hot dip (transverse plating) mould tin-scraping |
79.2 |
19.30*2.20*1.60 |
3500 |
JCJX-40H |
32 |
0.1-0.32 |
300 |
77.2 |
19.0*2.20* 1.60 |
3400 |
|||
JCJX-24H |
24 |
0.1-0.32 |
300 |
76.2 |
18.8*1.60* 1.60 |
3000 |
|||
JCJX-40HA |
40 |
0.25-0.8 |
180 |
90 |
21.3*2.20* 1.60 |
4000 |
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.
About our company
Jiangsu Jiacheng Machinery Co,.Ltd,was founded in 1990,owing a technical team formed by many experts and engineers,our company is concentrated on making the best products in China.we are professional manufacturer in making all kinds of high speed wire drawing machine,rigid frame standing machine,annealing and tinning machine,bunching machine,extruder and so on. And our products have exported to India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt and so on.
Our multiple factory
Welcome to visit Jiangsu Jiacheng Machinery Co., Ltd.
