Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll

Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll thumbnail-1
Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll thumbnail-2
Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll thumbnail-3
Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll photo-1
Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll photo-2
Mill Roll,cast Iron Mill Roll,back up Roll,chilled Cast Iron Mill Roll,Nodular Pearlitic Cast Iron Roll photo-3
US$ 399 - 899 MOQ: 1 Ton
Key Specifications
Get Latest Price
Type:
Forging Parts
Material:
Alloy
Plating:
Chrome
Contact Supplier Request Quote Chat Now
Harbin Sidiou Commerce And Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Forging Parts
Material Alloy
Plating Chrome
Certification Other, CNAS
Product Description



Range: Forged rolls (weight≤50tons)

Name

Specification

Material

Forged Work Roll

Dia. 60~ Dia. 1000mm

9Cr2Mo, 86CrMoV7,MC3,MC5,etc.

Forged Back Up Roll

Dia. 240~ Dia. 1500mm

70Cr3Mo,9Cr2Mo,86CrMoV7, MC3,MC5,etc.

Forged Intermediate Roll

≤Dia. 1000mm

9Cr2Mo, 86CrMoV7,MC3,MC5 etc.

Forged Leveling Roll

Dia. 30~ Dia.1000mm

60CrMoV, H13, 80CrMoV, etc

Forged Table Roll

Dia. 100~ Dia. 1000mm

1035, 1045, C35E, C40E, C45E, etc

Forged Pinch Roll

Dia. 80~ Dia. 1000mm

1035, 1045, C35E, C40E, C45E, etc

Forged Driving Roll

Dia. 80~ Dia. 1000mm

1035, 1045, C35E, C40E, C45E, etc

Forged Cradle Roll

Dia. 80~ Dia. 1000mm

1035, 1045, C35E, C40E, C45E, etc

Forged Guide Roll

Dia. 80~ Dia. 1000mm

1035, 1045, 4150, 4340, 4140, etc

Forged Piercing Roll

Dia. 80~ Dia. 1000mm

1035, 1045, 4150, 4340, 4140, etc

Forged Straightening Roll

Dia. 80~Dia. 900mm

60CrMoV,801CrMoV,H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc







  1. Material:H13,4130,4140,4150,4340,1035,1045,EN9,EN19,EN24,EN31,51200,SUJ2,100Cr6,K310,34CrNiMo6,36CrNiMo4,42CrMo4,86CrMoV7,Cr 2%, Cr3%, Cr 5%, etc.
  2. Surface Hardness: max 100 HSD
  3. Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 – FBH max 4mm
  4. Forging reduction ratio: ≥4

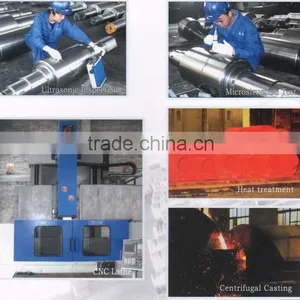

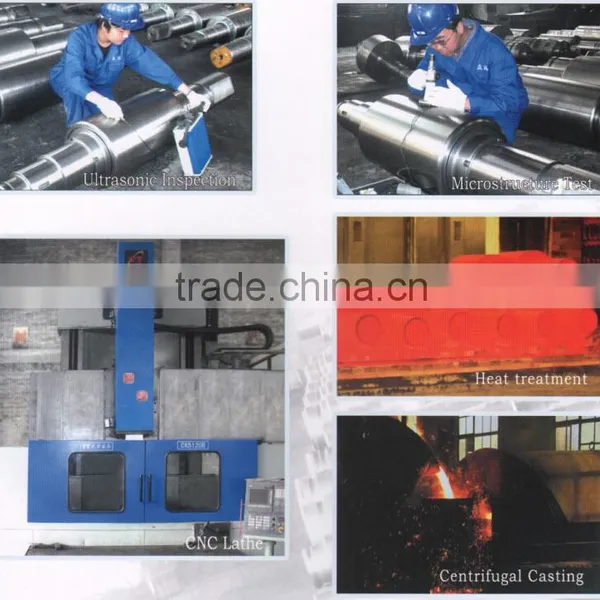

  5. Manufacturing process: steel ingot→forging→rough machining→QT→2th rough machining→induction quenching→finishing machining→packing→delivery
  6. Quality required: Surface defect and decarburization shall be free. All dimensions are 100% OK.
  7. Marking: Heat Number, Order Number, Made in China on bar end
  8. Packing: wooden box or metal pallet for protection against rust and damage.

    Range: Forged rolls (weight≤50tons)

    Name

    Specification

    Material

    Forged Work Roll

    Dia. 60~ Dia. 1000mm

    9Cr2Mo, 86CrMoV7,MC3,MC5,etc.

    Forged Back Up Roll

    Dia. 240~ Dia. 1500mm

    70Cr3Mo,9Cr2Mo,86CrMoV7, MC3,MC5,etc.

    Forged Intermediate Roll

    ≤Dia. 1000mm

    9Cr2Mo, 86CrMoV7,MC3,MC5 etc.

    Forged Leveling Roll

    Dia. 30~ Dia.1000mm

    60CrMoV, H13, 80CrMoV, etc

    Forged Table Roll

    Dia. 100~ Dia. 1000mm

    1035, 1045, C35E, C40E, C45E, etc

    Forged Pinch Roll

    Dia. 80~ Dia. 1000mm

    1035, 1045, C35E, C40E, C45E, etc

    Forged Driving Roll

    Dia. 80~ Dia. 1000mm

    1035, 1045, C35E, C40E, C45E, etc

    Forged Cradle Roll

    Dia. 80~ Dia. 1000mm

    1035, 1045, C35E, C40E, C45E, etc

    Forged Guide Roll

    Dia. 80~ Dia. 1000mm

    1035, 1045, 4150, 4340, 4140, etc

    Forged Piercing Roll

    Dia. 80~ Dia. 1000mm

    1035, 1045, 4150, 4340, 4140, etc

    Forged Straightening Roll

    Dia. 80~Dia. 900mm

    60CrMoV,801CrMoV,H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc







    1. Material:H13,4130,4140,4150,4340,1035,1045,EN9,EN19,EN24,EN31,51200,SUJ2,100Cr6,K310,34CrNiMo6,36CrNiMo4,42CrMo4,86CrMoV7,Cr 2%, Cr3%, Cr 5%, etc.
    2. Surface Hardness: max 100 HSD
    3. Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 – FBH max 4mm
    4. Forging reduction ratio: ≥4
    5. Manufacturing process: steel ingot→forging→rough machining→QT→2th rough machining→induction quenching→finishing machining→packing→delivery
    6. Quality required: Surface defect and decarburization shall be free. All dimensions are 100% OK.
    7. Marking: Heat Number, Order Number, Made in China on bar end
    8. Packing: wooden box or metal pallet for protection against rust and damage.
