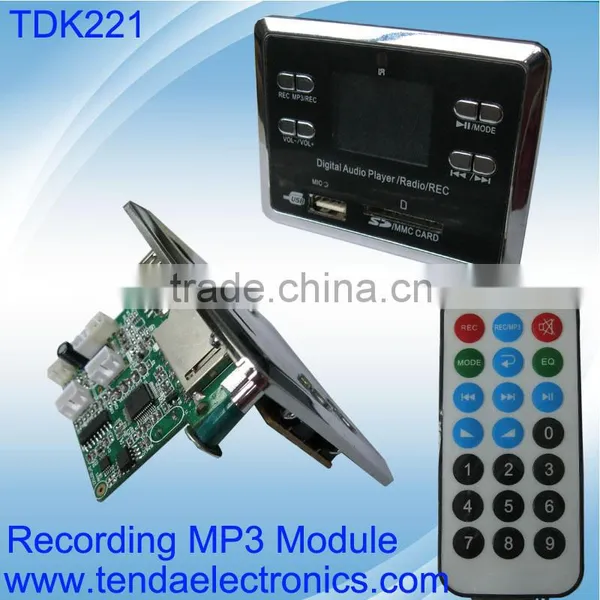

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source

Name: Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source
Brand: Tenda
SKU: 133664057

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source thumbnail-1

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source thumbnail-2

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source thumbnail-3

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source photo-1

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source photo-2

Digital MP3 Playback Recording Module With LCD ,PA Amplifier Mp3 Source photo-3

US$ 5 - 7 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Brand Name:

Tenda

Model Number:

TDK221

Screen:

Yes

Contact Supplier Request Quote Chat Now

Guangzhou Dongyi Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Tenda

Model Number TDK221

Screen Yes

Battery Life 10 - 20 hours

Style Watch

Function Voice Recorder, FM Radio, Bluetooth

Color Black

Specifications

2. Technical Info.
a. DC 5V power input , 3.7V optional
b. On-Board 2Watts x 2 Amplifier Optional
c. FM Radio optional

Product Description

2. Technical Info.

a. DC 5V power input , 3.7V optional b. On-Board 2Watts x 2 Amplifier Optional c. FM Radio optional d.With USB/SD/AUX/Record/FM Mode e.Memory support upto 32GB f. 16-bit Stereo DAC g. MPEG-1, MPEG-2, MPEG-2.5 Audio Layer 1,2,3 decoder. Bit rate 8-448Kbps, 8-48KHz,CBR/VBR/ABR h.Plays Mp3 and record Mp3 file ( Recorded file at 44.1KHz , 128kbps ,Stereo) I. Integrates an USB 2.0 full speed Host/Device controller and a MP3 Decoder Engine J.On-Board Mic for recording k.Can record FM , AUX Audio sources to USB /SD Memory

3.Pannel Keyboard functions

a. REC : Record button , short press enter into record state , second press to stop reocrd and save the recorded file into SD or USB Memory. b. MP3/REC : Switch to play the MP3 music file or Recorded MP3 files. c. VOL- : Volume down d. VOL+: Volume up e . PLAY/PAUSE : In USB/SD Mode , short press for play or pause music, In FM Mode short press for Auto-Search Radio channels and save, In REC Mode ,press for stop recording and save file then play it immediately. In USD/SD Mode , If it is Pause state , long press this button for delect the current Mp3 music file or Recorded file . f. MODE : USB & SD inserted , MODE button switch from USB--SD -- AUX -- FM -- USB , USB inserted , MODE button switch from USB -- AUX -- FM -- USB , SD inserted , MODE button switch from SD -- AUX -- FM -- SD g. PREV : In USB/SD Mode , for Previous file ,In FM Mode ,for previous radio channel .. h. NEXT: In USB/SD Mode , for Next file ,In FM Mode , for next radio channe

4. Remote Buttons function

a. REC : Record button , short press enter into record state , second press to stop reocrd and save the recorded file into SD or USB Memory. b. MODE : USB & SD inserted , MODE button switch from USB -- SD -- AUX -- FM -- USB , USB inserted , MODE button switch from USB -- AUX -- FM -- USB , SD inserted , MODE button switch from SD -- AUX -- FM -- SD c. VOL- : Volume down d. VOL+: Volume up e. PREV : In USB/SD Mode , for Previous file ,In FM Mode ,for previous radio channel . f. NEXT: In USB/SD Mode , for Next file ,In FM Mode , for next radio channel g. REP : Repeat one file or Loop all files switch h. MP3/REC : Switch to play the MP3 music file or Recorded MP3 files. i MUTE: Mute switch j EQ: NORMAL -- JAZZ -- ROCK -- POP -- CLASSIC -- NORMAL k. PLAY/PAUSE: In USB/SD Mode , short press for play or pause music, In FM Mode short press for Auto-Search Radio channels and save, In REC Mode ,press for stop recording and save file then play it immediately. In USD/SD Mode , If it is Pause state , long press this button for delect the current Mp3 music file or Recorded file . l. 0~9:
