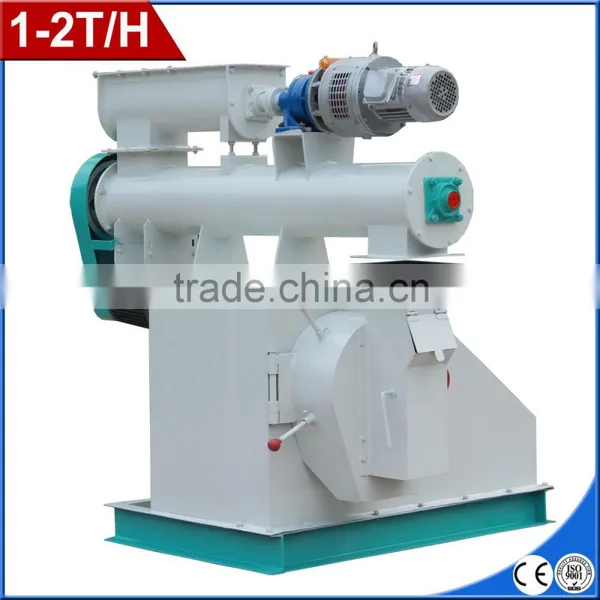

1-2T/H Small Capacity German Sheep Feed Pellet Machine
Quick details of german sheep feed pellet machine
• Model:MZLH250.
• Dimensions:1420*1200*1400 mm.
• Capacity:0.5-2T/H.
• Final pellets size:2/4/6/8/10/12mm
• Conditioner materials:stainless steel.
• Raw materials:corn, maize, soybean,soybean meal,wheat,grains and proteins,etc.
Descriptions of german sheep feed pellet machine
1.Feeder and conditioner are made of stainless steel;
2.Vapour steam inlet is connected with steam boiler;
3.Ring die and press roller work together to make the raw materials into pellets;
4.Siemens motor and SKF bearing,automatic lubrication system;
5.Human and machine satety,low noise,beautiful apperance,easy to use.
Technical Parameters of german sheep feed pellet machine
Model |
Main engine power (kw) |
Capacity (t/H) |
Feeder power (kw) |
Conditioner power (kw) |
Ring Die Dia. (mm) |
Pellet size (mm) |
SZLH250 |
30 |
1-2 |
1.5 |
2.2 |
Φ250 |
Φ1.0-12 |
SZLH350 |
55 |
2-5 |
1.5 |
2.2 |
Φ350 |
Φ1.0-12 |
SZLH420 |
110 |
3-15 |
1.5 |
4 |
Φ420 |
Φ1.0-12 |
SZLH508 |
132/160 |
5-20 |
1.5 |
5.5 |
Φ508 |
Φ1.0-12 |

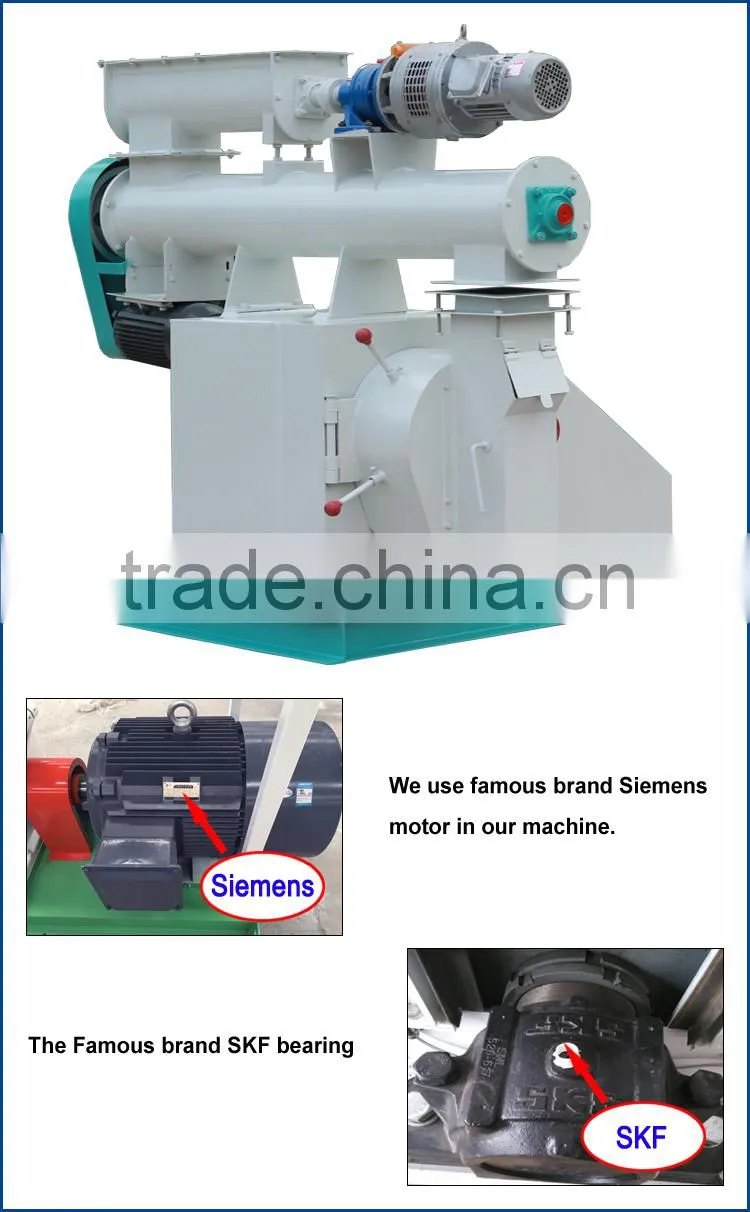

Details parts of german sheep feed pellet machine
1.We use famous brand Siemens motor in our machine;
2.The famous brand SKF bearing.

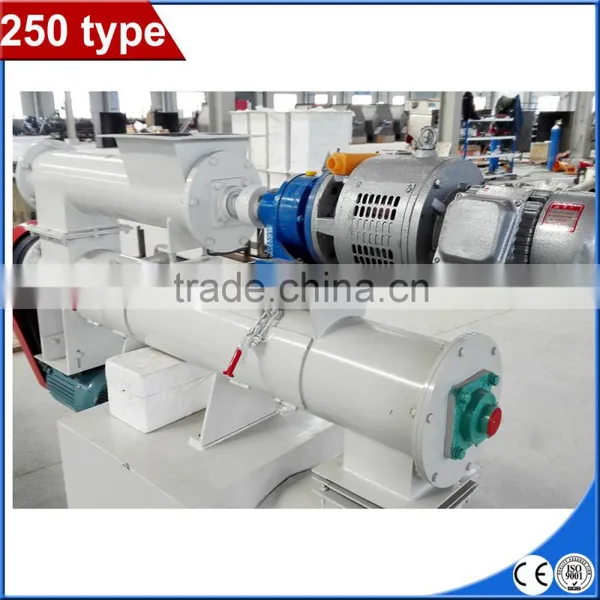

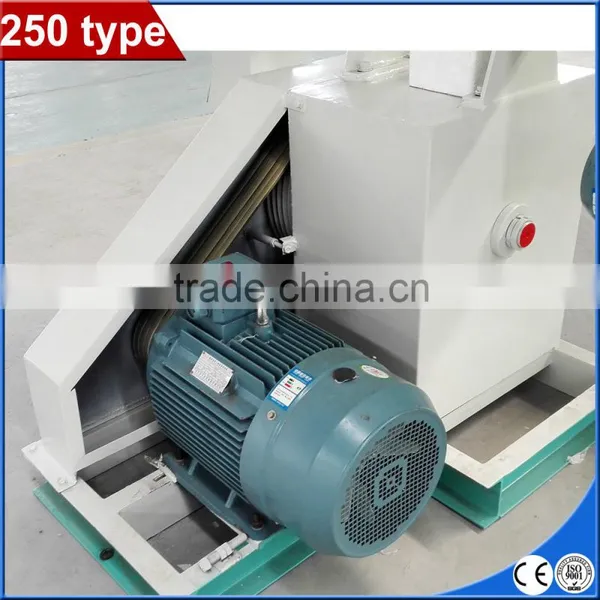

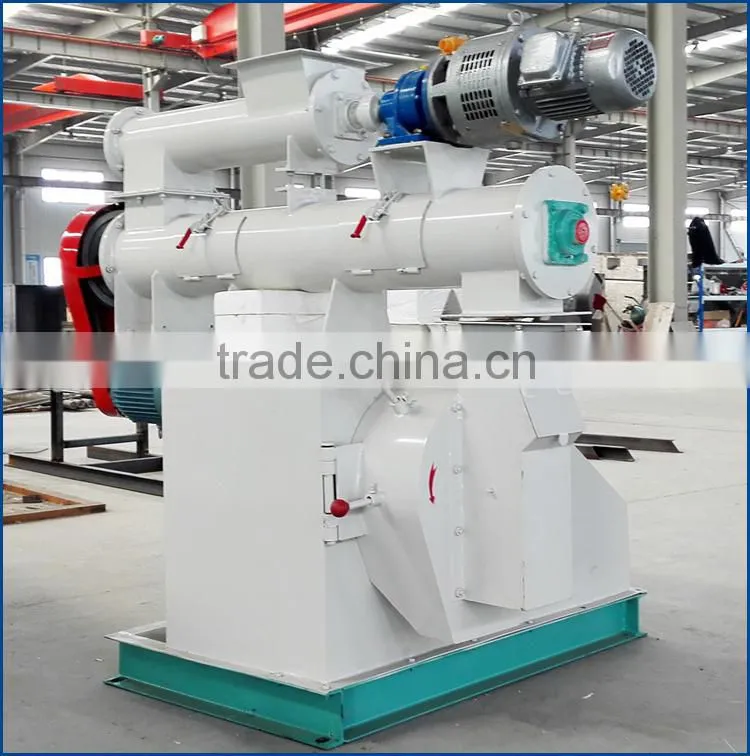

250 Type german sheep feed pellet machine in our workshop

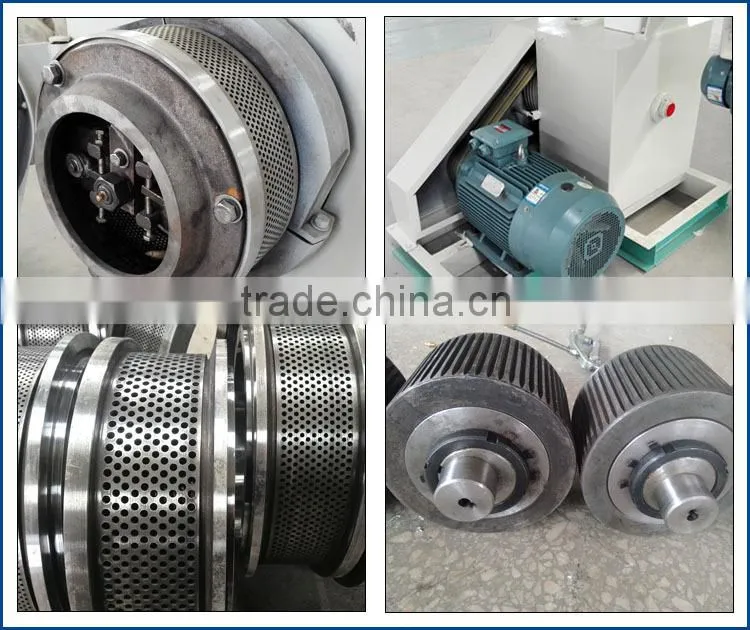

Ring die and press roller in german sheep feed pellet machine
Final pellets of german sheep feed pellet machine
1.For pig, the pellet diameter is usually ø3.5-6.5mm.
2.For cattle, the pellet diameter is usually ø4.5-8mm.
3.For chicken, pellet diameter is usually ø3.2mm.
4.For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
5.For shrimps, pellet diameter is usually ø1.0-ø3.5mm.

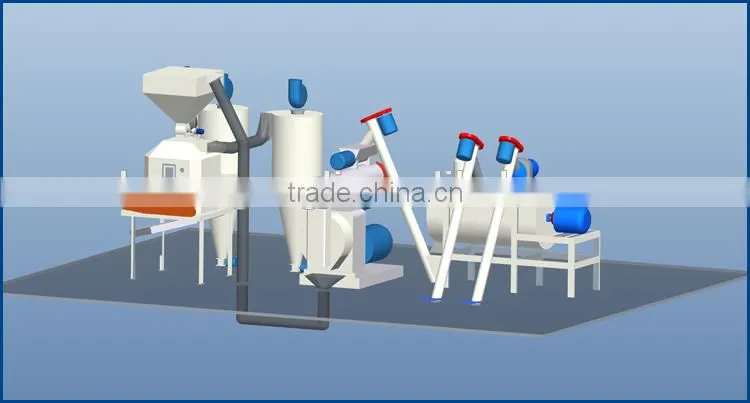

1-2T/H german sheep feed pellet production line
Main equipments:
1) Grain hammer mill: 15-200 (11 kw)
2) Pellet mill : SZLH-250 (22 kw);
3) Conditioner: stainless steel conditioner (2 kw)
4) Mixer: Ribbon mixer (7.5 kw)
5) Cooler: Counterflow cooling machine SKLN1.0*1.0 (1 kw)
6) Pellet crumbler: SSLG15*100 (5.5 kw)
Related products of german sheep feed pellet production line
Grain hammer mill
♦ Specially designed for the small 1-2T/H capacity feed production line;
♦ Connected with one screw convery, to crush the grains, like maize, corn, wheat, barley etc;
♦ It can be fixed on the mixer,realised.
Feed Mixer machine
♦ Specially designed for the small 1-2T/H capacity feed production line;
♦ It has two inlets, one from the hammer mill that fixed on it; the other one connect with a srew conveyor, to collect the materials that don't need to be crushed;
1) We, Henan Kyorichi Machinery Co., Ltd. was established in 1995, Has served Europe,
North America,Africa,Middle East, Asia for ten years. Our products have been sold to many
countries all over the world.
2) As a professional german cattle poultry sheep animal feed pellet machine and complete feed plant project solution supplier, Henan Kyorichi can always meet
different customers' requirement.
3) We understand how important the quality is, and we also understand the importance of timely shipping.
Welcome you to all of you to visit our mill
1)Kyorichi mill located in zhengzhou city,henan province.
2)Our workshop has developed 50 series quality of quality feed and biomass pellet processing machine.
3)Welcome all of you to visit our mill.
1) How did you define your german sheep feed pellet machine model as 250 / 320 / 350 /420 / 508, etc.?
The model is defined based on the diameter of the ring die mould.
For example, mould 250 means that the diameter of the ring die is 250 mm. Our machine can produce difference size of feed pellet for poultry feed and animal feed.
2)Can i use this german sheep feed pellet production line to make different size of animal feeds?
Yes,Our small ring die feed pellet production line can produce 1-8mm pellets.
you can use this line to produce livestock feed, pig, cow, cattle, sheep, etc.
3) Is it possible that we only buy one set of sheep feed pellet production line to produce animal feed or poultry feed? without other equipment?
Yes, It's possible.but you'd better find the proper way to load and mix the raw material. otherwise.
4) Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5) Do you have some foreign customers using your equipment?
yes, we have.our company has established business relationships with customers in Russia, German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq, Iran,Jordan,Saudi Arabia,Syria, Libya etc.
