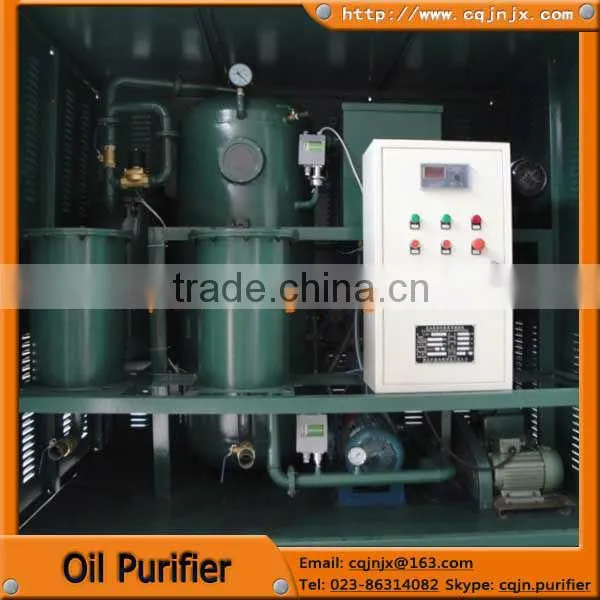

ZL HIGH-EFFICIENT VACUUM OIL PURIFIER SERIES
ZL series of high-efficient vacuum oil purifier is case-hardened product of electric power industry. It is researched according to the newest drying theory and precise filtering technology for disposing unqualified insulation oil of electric power department and other enterprises. It is ideal equipment for drying and making vacuum oil injection
Usage:
It is widely used in power plant, hydropower station, electric power company, metallurgy, petrifaction, railroad, etc. It can purify unqualified transformer oil, mutual-inductor oil, switch oil and capacitor oil, also rapidly dehydrate, degasify and purify oil. Meanwhile, it also has the function of drying electric machine and injecting oil to electric equipment.
Characteristics:
A: Super dehydration and degasification system. We adopt large cubage to rapidly separate water and gas from oil.
B: Reliable heating system to ensure even heating and stable oil temperature.
C: Precise filtration system adopts high-grade filtration materials that have the advantages of good mechanical intensity, multi-level filtration, gradually intensive and high filtration precision.
D: Advanced pressure protection device and infrared control system can avoid the influence of wrong operation.
E: Integration has chain security protection. It can automatically control the oil pressure and oil level.
F: This machine can be used together with BZ series of transformer oil discoloring device to add the function of acid-removing, discoloring, uncombined carbon removing, and reducing damage.
Technical Parameters
Model |
Unit |
ZL-20 |
ZL-30 |
ZL-50 |
ZL-70 |
ZL-100 |
ZL-150 |
ZL-200 |
Rated Flow |
L/min |
20 |
30 |
50 |
70 |
100 |
150 |
200 |
Vacuum Range |
Mpa |
-0.05 -0.099 |
||||||
Temperature Range |
|
6080 |
||||||
Oil pump pressure |
Mpa |
0.05-0.3 |
||||||
Total Power |
kw |
25 |
28 |
37 |
47 |
80 |
110 |
128 |
Breakdown Voltage |
kv |
≥54 |
||||||
Power |
|
50HZ 380V |
||||||
Working Noise |
db(A) |
6580 |
||||||
Cleanliness |
NAS1638 |
≤NAS 6 |
||||||
Water content in oil |
PPM |
≤5 |
||||||
Gas content in oil |
% |
≤0.1 |
||||||
Filter precision |
µm |
≤5 |
||||||
Inlet (outlet) diameter |
mm |
25 |
25 |
32 |
32 |
42 |
50 |
60 |
dimension (mm) |
L |
1100 |
1100 |
1200 |
1250 |
1300 |
1400 |
1550 |
W |
700 |
700 |
800 |
850 |
900 |
1000 |
1200 |
|
H |
1300 |
1350 |
1400 |
1450 |
1520 |
1600 |
1800 |
|
