Specifications
XLPE Instrument Wire UL 34401. Rated Voltage:600V
2.UL & RoHS compliant
re:1core
4.Insulation material:XLPE

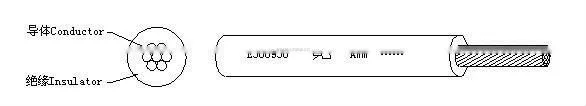

XLPE Insulation Instrument Wire UL 3440
Specification
Rated Voltage:600V
Rated temperature:105°C
Specification range
Conductor specification:30 AWG~4/0AWG
Color: According to customer requirements.
Core:1 Core.
Application
They are widely used for headlamp, home appliance, industrial machine, instrument products.
Standard
UL 758/1581
( Conductor) |
( Insulator) |
(Electrical Characteristic) |
( Packaging) |
|||
AWG |
(Comps.n.x) /φmm |
(Diameter) /φmm |
(Insulation Thickness) /mm |
( Over diameter)/φmm |
(Realst maxCuc,c 20°C)/ Ohm/km |
Mt/coils |
26 |
7/0.16 |
0.49 |
0.76 |
2.01 |
150.00 |
305 |
24 |
11/0.16 |
0.61 |
0.76 |
2.13 |
94.20 |
305 |
22 |
17/0.16 |
0.76 |
0.76 |
2.28 |
59.40 |
305 |
20 |
20/0.18 |
0.93 |
0.76 |
2.45 |
36.70 |
305 |
18 |
16/0.254 |
1.17 |
0.76 |
2.69 |
23.20 |
305 |
16 |
26/0.254 |
1.50 |
0.76 |
3.02 |
14.60 |
305 |
14 |
41/0.254 |
1.88 |
0.76 |
3.40 |
8.96 |
305 |
12 |
65/0.254 |
2.37 |
0.76 |
3.89 |
5.64 |
100 |
10 |
105/0.254 |
3.01 |
0.76 |
4.53 |
3.546 |
100 |
